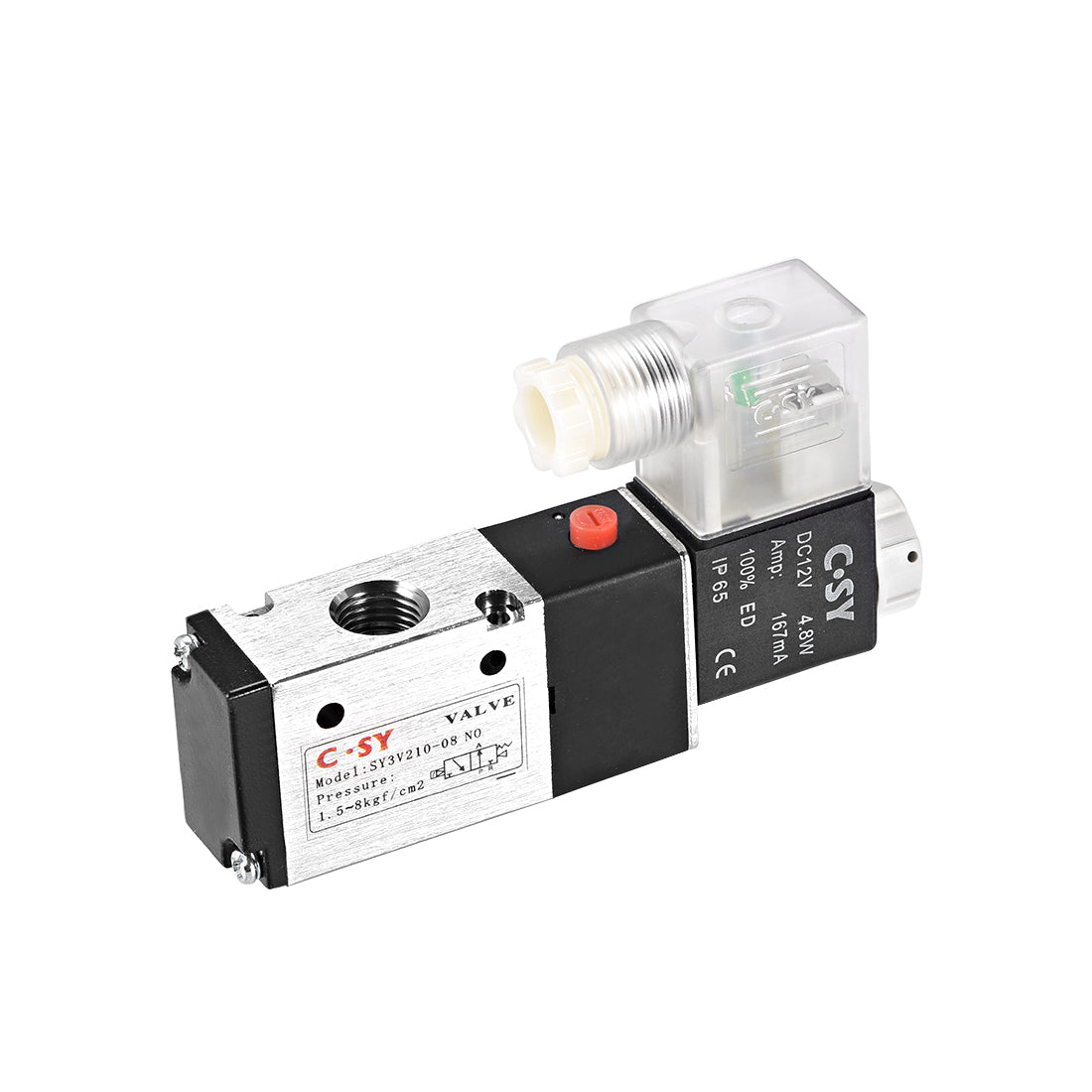

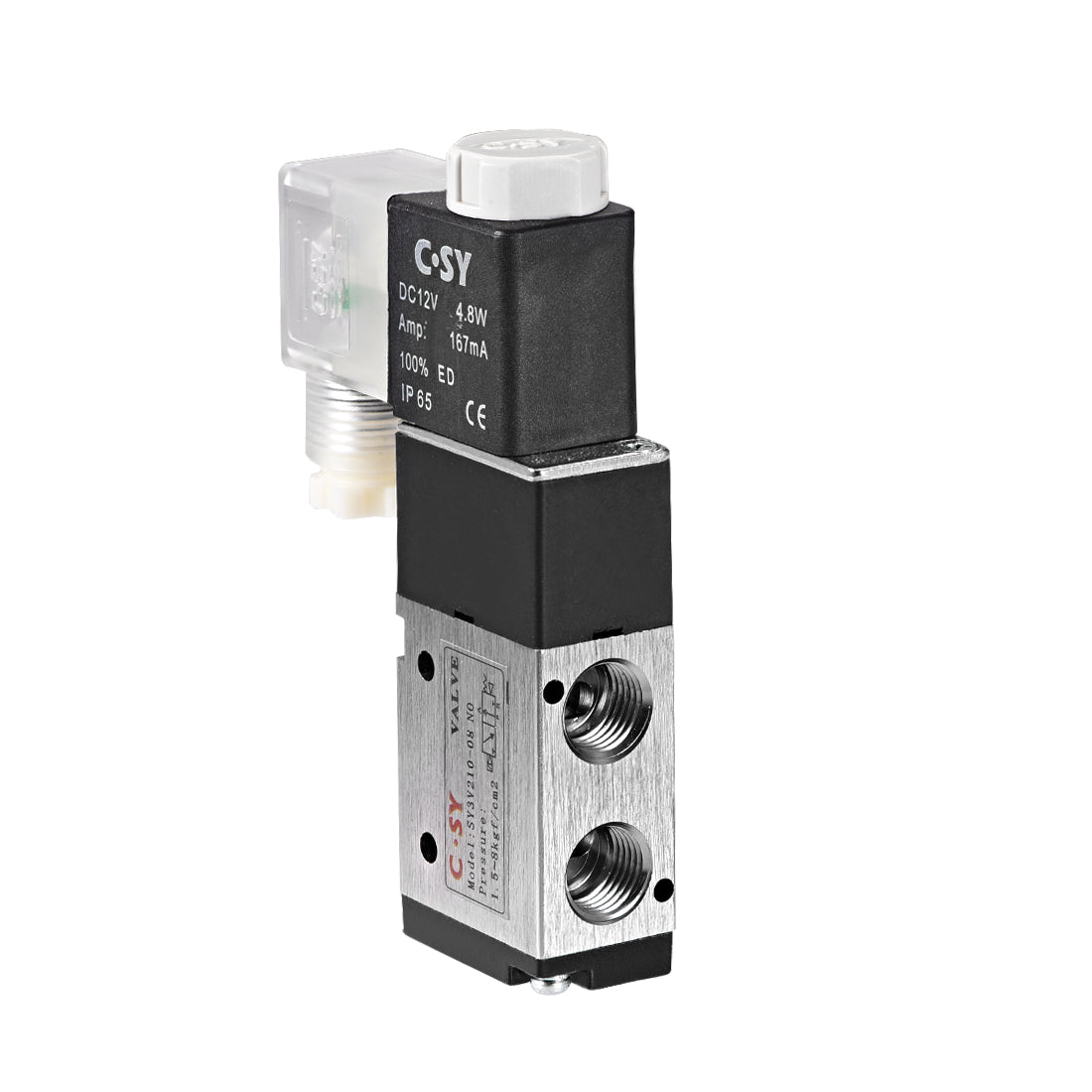

Harfington Uxcell 3V210-08 Pneumatic Air NO Single Piloted  Electrical Control Solenoid Valve DC 12V 3 Way 2 Position 1/4" PT Internally Acting Type w LED Light

Uxcell 3V210-08 Pneumatic Air NO Single Piloted Electrical Control Solenoid Valve DC 12V 3 Way 2 Position 1/4" PT Internally Acting Type w LED Light

ID:1067389
ID:1067389
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

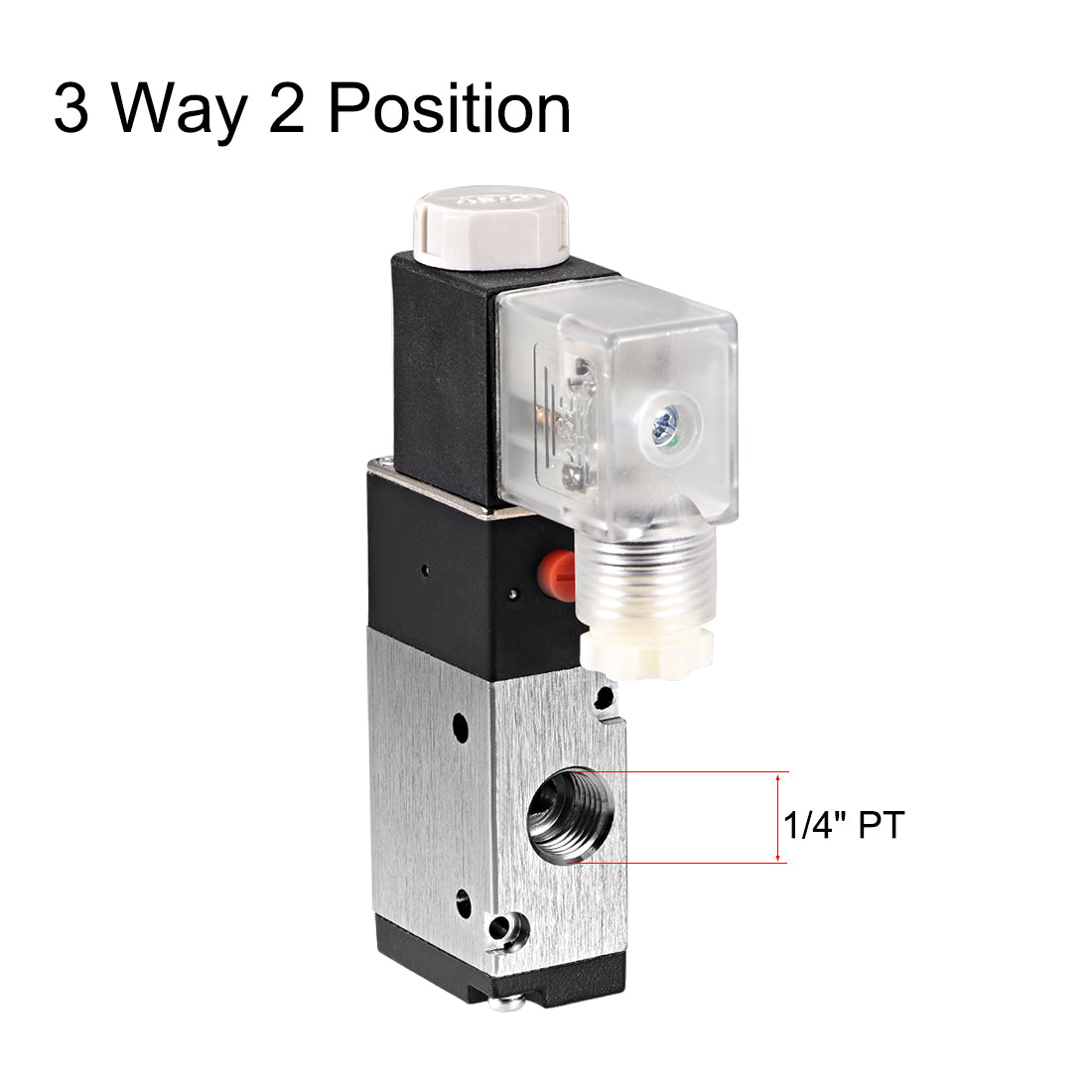

  • 【UNIVERSAL DESIGN】 - Pneumatic Solenoid Valve Type: 3 Port 2 Position ; Voltage : DC 12V ; Exhaust Hole size: 1/4" PT ; Air Flow In Hole Size : 1/4" PT
  • 【ATTENTION】- Please pay attention to the direction of gas flow and the correct connection when installing. Pay attention to dustproof. It is recommended to install a muffler on the exhaust port.
  • 【APPLICATION】 - Single Control Valve Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
  • 【ADVANTAGE】 - Air Solenoid Valve hasHigh frequency sub-head. Made of conductor material with 6 times in 1 second high intensity and high frequency response for smoother operation
  • 【 MATERIAL】 - The electromagnetic valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.
About this item
  • 【UNIVERSAL DESIGN】 - Pneumatic Solenoid Valve Type: 3 Port 2 Position ; Voltage : DC 12V ; Exhaust Hole size: 1/4" PT ; Air Flow In Hole Size : 1/4" PT
  • 【ATTENTION】- Please pay attention to the direction of gas flow and the correct connection when installing. Pay attention to dustproof. It is recommended to install a muffler on the exhaust port.
  • 【APPLICATION】 - Single Control Valve Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
  • 【ADVANTAGE】 - Air Solenoid Valve hasHigh frequency sub-head. Made of conductor material with 6 times in 1 second high intensity and high frequency response for smoother operation
  • 【 MATERIAL】 - The electromagnetic valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.
Specification

Specification

SKU
a19012600ux0984
Product name
Solenoid Valve
Model
3V210-08
Weight
211g
Color
Black,Silver Tone
Cv values
0.89
Control type
Power Ups
Voltage
DC12V
Valve type
3 Port 2 Position
Mounting hole size
3.5mm / 0.14 inch
Exhaust hole size
1/4"PT
Air flow in hole size
1/4"PT
Seal material
NBR
Main parts material
Aluminum alloy
Working pressure
0.15~0.8mpa (21~114 psi)
Operating temperature
-5~60 Degree Celsius
Total size
111x 22 x 65mm /4.37"x0.87"x2.56" (LxWxH)
Package included
1 x Solenoid Valve
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Specification:

Product Name : Solenoid Valve

Model: 3V210-08

Weight:211g

Color :Black,Silver Tone

CV values: 0.89

Control Type: Power Ups

Voltage :DC12V

Valve Type: 3 Port 2 Position

Mounting hole Size :3.5mm / 0.14"

Exhaust Hole size: 1/4"PT

Air Flow In Hole Size : 1/4"PT

Seal material: NBR

Main parts material: Aluminum alloy

Working pressure: 0.15~0.8mpa (21~114 psi)

Operating temperature: -5~60 Degree Celsius

Total Size : 111x 22 x 65mm /4.37"x0.87"x2.56" (LxWxH)

Package Included:1 x Solenoid Valve



Description:

1.The strength of the aluminum alloy valve body is large. The valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.

2. sealing ring. seals for durability and longer life

3.High precision valve stem. Imported lubricants to ensure lubrication and reduce friction during exercise

4.High frequency sub-head. Made of conductor material with 6 times in 1 second high intensity and high frequency response for smoother operation

5.The coil is easy to disassemble. Removable core nut, coil damage can be replaced at any time

6. electronic components. The copper coil can work hard for a long time, and the wiring operation is simple. Lights up when power is on.

7.Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.



Note:

The manual button tests the status of the product when it is powered up

The valve is N / O (normally open), meaning it will shut down when not powered.

$13.76 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell 3V210-08 Pneumatic Air NO Single Piloted Electrical Control Solenoid Valve DC 12V 3 Way 2 Position 1/4" PT Internally Acting Type w LED Light 1067389 $13.76
Products Title ID Price Qty
Uxcell 3V210-08 Pneumatic Air NO Single Piloted Electrical Control Solenoid Valve DC 12V 3 Way 2 Position 1/4" PT Internally Acting Type w LED Light 1067389 $13.76
Uxcell 3V210-08 Pneumatic Air NC Single Piloted Electrical Control Solenoid Valve DC 12V 3 Way 2 Position 1/4" PT Thread Internally Acting Type w LED Light 1040348 $13.76
Qty: 0 Item(s)
Total Price: $0.00

Description

Description

Specification:

Product Name : Solenoid Valve

Model: 3V210-08

Weight:211g

Color :Black,Silver Tone

CV values: 0.89

Control Type: Power Ups

Voltage :DC12V

Valve Type: 3 Port 2 Position

Mounting hole Size :3.5mm / 0.14"

Exhaust Hole size: 1/4"PT

Air Flow In Hole Size : 1/4"PT

Seal material: NBR

Main parts material: Aluminum alloy

Working pressure: 0.15~0.8mpa (21~114 psi)

Operating temperature: -5~60 Degree Celsius

Total Size : 111x 22 x 65mm /4.37"x0.87"x2.56" (LxWxH)

Package Included:1 x Solenoid Valve



Description:

1.The strength of the aluminum alloy valve body is large. The valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.

2. sealing ring. seals for durability and longer life

3.High precision valve stem. Imported lubricants to ensure lubrication and reduce friction during exercise

4.High frequency sub-head. Made of conductor material with 6 times in 1 second high intensity and high frequency response for smoother operation

5.The coil is easy to disassemble. Removable core nut, coil damage can be replaced at any time

6. electronic components. The copper coil can work hard for a long time, and the wiring operation is simple. Lights up when power is on.

7.Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.



Note:

The manual button tests the status of the product when it is powered up

The valve is N / O (normally open), meaning it will shut down when not powered.
