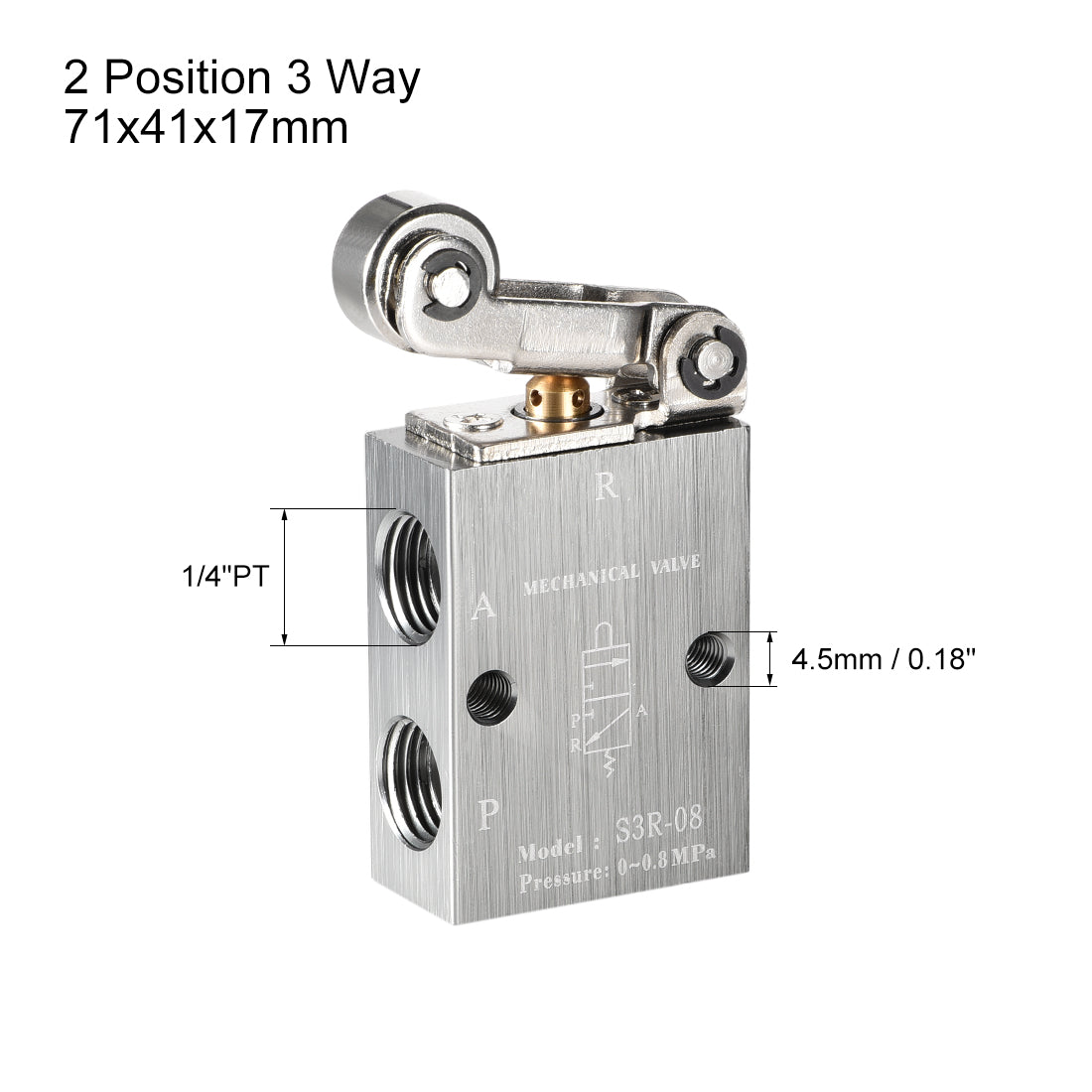

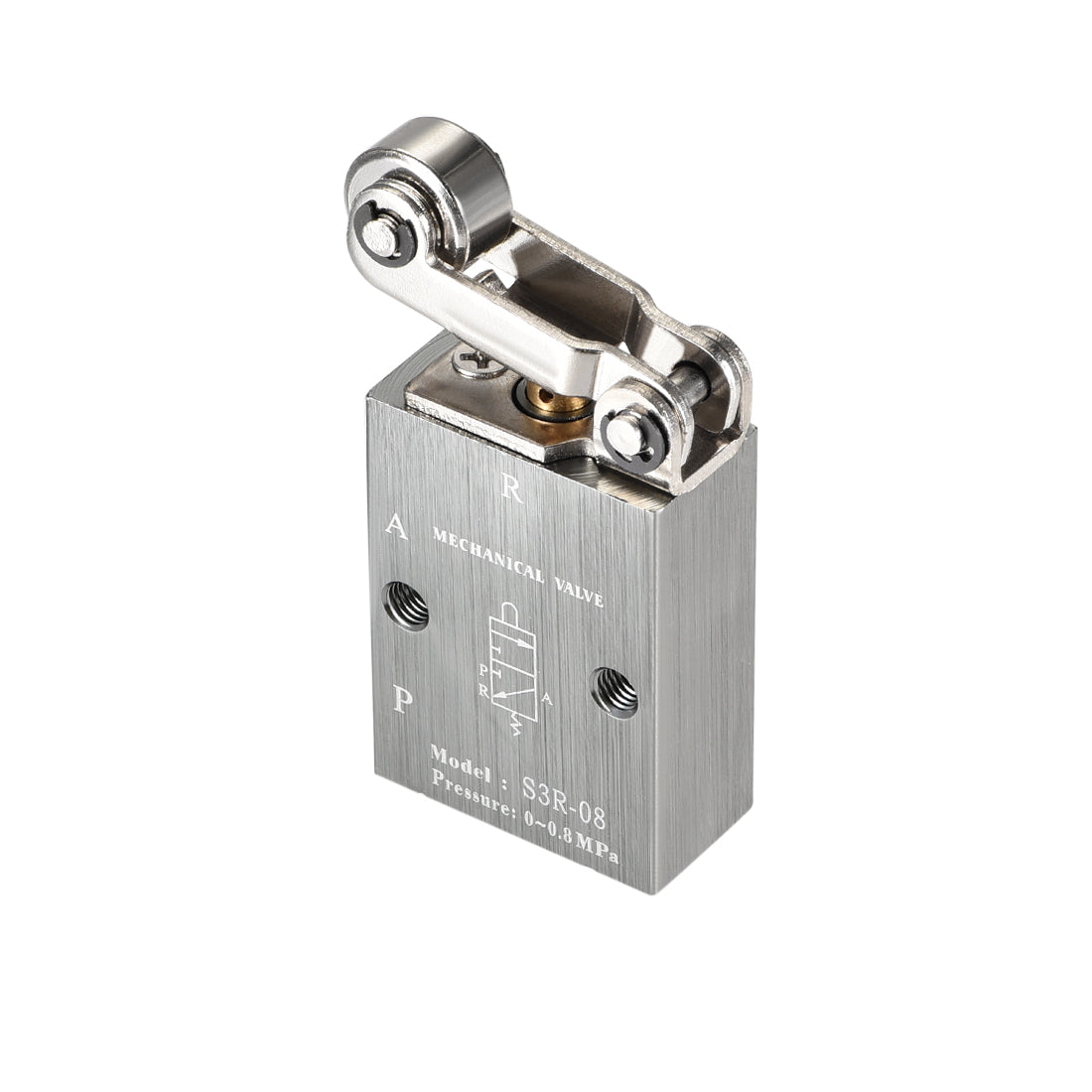

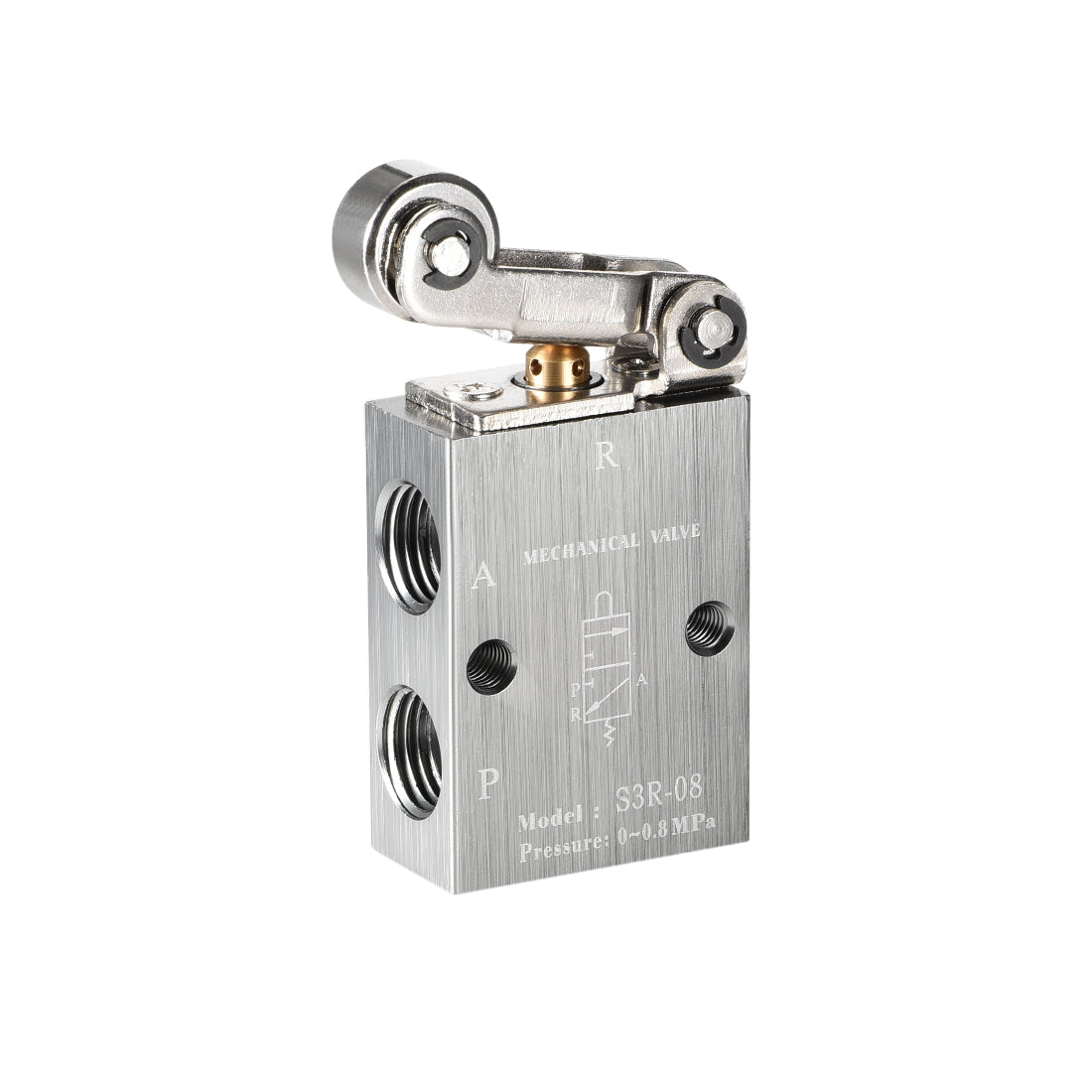

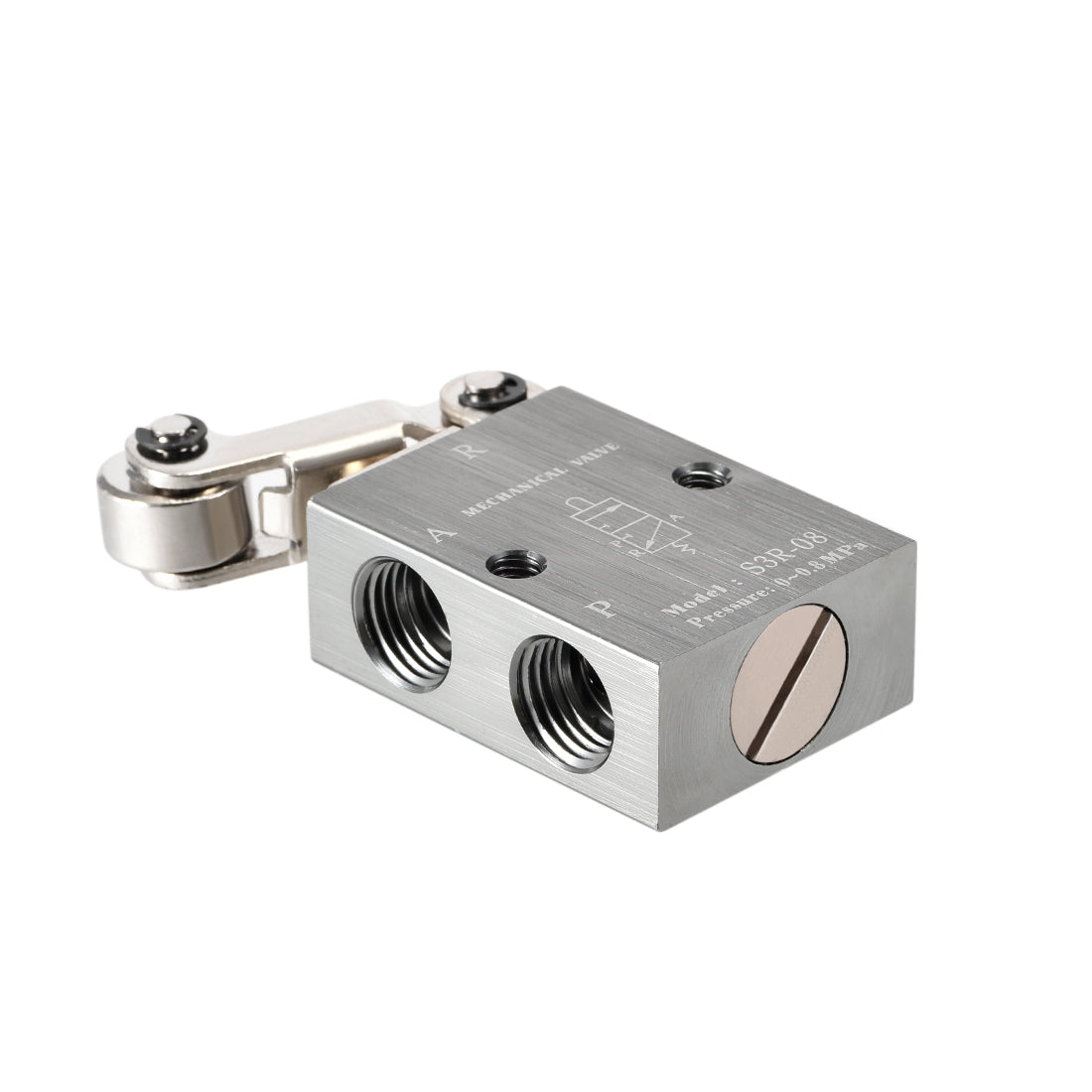

Harfington Uxcell S3R-08 2 Position 3 Way  1/4" PT Manual Hand Pull Pneumatic Solenoid Mechanical Valve

Uxcell S3R-08 2 Position 3 Way 1/4" PT Manual Hand Pull Pneumatic Solenoid Mechanical Valve

ID:1108642
ID:1108642
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • UNIVERSAL DESIGN - Button Type : Handle ; Control Type : Extenal Control ; Number of Position : 2 ; Joint Pipe Size: 1/4"PT
  • ATTENTION- The Three-port two-position manual reset type manual valve adopts spring steel ball positioning, which is Responsive and easy to switch. Please pay attention to excessive force and control position error caused by mistake.
  • APPLICATION - Single Control Valve Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
  • ADVANTAGE - The stem sealing ring has strong air tightness, good insulation, corrosion resistance, heat resistance .The inside of the valve body is smooth and burrfree, smooth and easy to use, and has a long life.
  • MATERIAL - It adopts pure aluminum valve body, fully automatic machining center processing, surface frosting treatment, strong wear resistance and long service life.
About this item
  • UNIVERSAL DESIGN - Button Type : Handle ; Control Type : Extenal Control ; Number of Position : 2 ; Joint Pipe Size: 1/4"PT
  • ATTENTION- The Three-port two-position manual reset type manual valve adopts spring steel ball positioning, which is Responsive and easy to switch. Please pay attention to excessive force and control position error caused by mistake.
  • APPLICATION - Single Control Valve Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
  • ADVANTAGE - The stem sealing ring has strong air tightness, good insulation, corrosion resistance, heat resistance .The inside of the valve body is smooth and burrfree, smooth and easy to use, and has a long life.
  • MATERIAL - It adopts pure aluminum valve body, fully automatic machining center processing, surface frosting treatment, strong wear resistance and long service life.
Specification

Specification

SKU
a19030500ux0420
Product name
Mechanical Valve
Model
S3R-08
Weight
98g
Color
Silver Tone
Cv values
12mm2
Button type
Handle
Joint pipe size
1/4"PT
Control type
Extenal Control
Mounting hole size
4.5mm / 0.18 inch
Seal material
NBR
Main parts material
Aluminum alloy
Working pressure
0~0.8mpa
Operating temperature
-5~60 Degree Celsius
Total size
71 x 41 x 17mm /2.8" x 1.61" x 0.67" (L x W x H)
Package included
1 x Mechanical Valve
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Specification:

Product Name : Mechanical Valve

Model: S3R-08

Weight: 98g

Color : Silver Tone

CV values: 12mm2

Button Type : Handle

Number of Position : 2

Joint Pipe Size: 1/4"PT

Control Type : Extenal Control

Mounting hole Size :4.5mm / 0.18"

Seal material: NBR

Main parts material: Aluminum alloy

Working pressure: 0~0.8mpa

Operating temperature: -5~60 Degree Celsius

Total Size : 71 x 41 x 17mm /2.8" x 1.61" x 0.67" (L x W x H)



Package Included:1 x Mechanical Valve



Description:

1.Double-head solenoid valve with memory function, low power consumption

2.It is made of aluminum body and has fine surface treatment. It has high durability and is not easy to leak.

3.The handle shaft and the valve body have small resistance and accurate positioning

4.High-precision valve stem imported from Germany, seal design to ensure closure

5.The special process of the valve body hole, low resistance, long service life.

6.The Three-port two-position manual reset type manual valve adopts spring steel ball positioning, which is sensitive and easy to switch. Please pay attention to excessive force and control position error caused by mistake.

7.Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.

$10.50 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell S3R-08 2 Position 3 Way 1/4" PT Manual Hand Pull Pneumatic Solenoid Mechanical Valve 1108642 $10.50
Products Title ID Price Qty
Uxcell S3R-08 2 Position 3 Way 1/4" PT Manual Hand Pull Pneumatic Solenoid Mechanical Valve 1108642 $10.50
Uxcell S3R-06 2 Position 3 Way 1/8" PT Manual Hand Pull Pneumatic Solenoid Mechanical Valve 1096836 $9.92
Uxcell S3R-M5 2 Position 3 Way M5 Manual Hand Pull Pneumatic Solenoid Mechanical Valve 1169392 $8.94
Qty: 0 Item(s)
Total Price: $0.00

Description

Description

Specification:

Product Name : Mechanical Valve

Model: S3R-08

Weight: 98g

Color : Silver Tone

CV values: 12mm2

Button Type : Handle

Number of Position : 2

Joint Pipe Size: 1/4"PT

Control Type : Extenal Control

Mounting hole Size :4.5mm / 0.18"

Seal material: NBR

Main parts material: Aluminum alloy

Working pressure: 0~0.8mpa

Operating temperature: -5~60 Degree Celsius

Total Size : 71 x 41 x 17mm /2.8" x 1.61" x 0.67" (L x W x H)



Package Included:1 x Mechanical Valve



Description:

1.Double-head solenoid valve with memory function, low power consumption

2.It is made of aluminum body and has fine surface treatment. It has high durability and is not easy to leak.

3.The handle shaft and the valve body have small resistance and accurate positioning

4.High-precision valve stem imported from Germany, seal design to ensure closure

5.The special process of the valve body hole, low resistance, long service life.

6.The Three-port two-position manual reset type manual valve adopts spring steel ball positioning, which is sensitive and easy to switch. Please pay attention to excessive force and control position error caused by mistake.

7.Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
