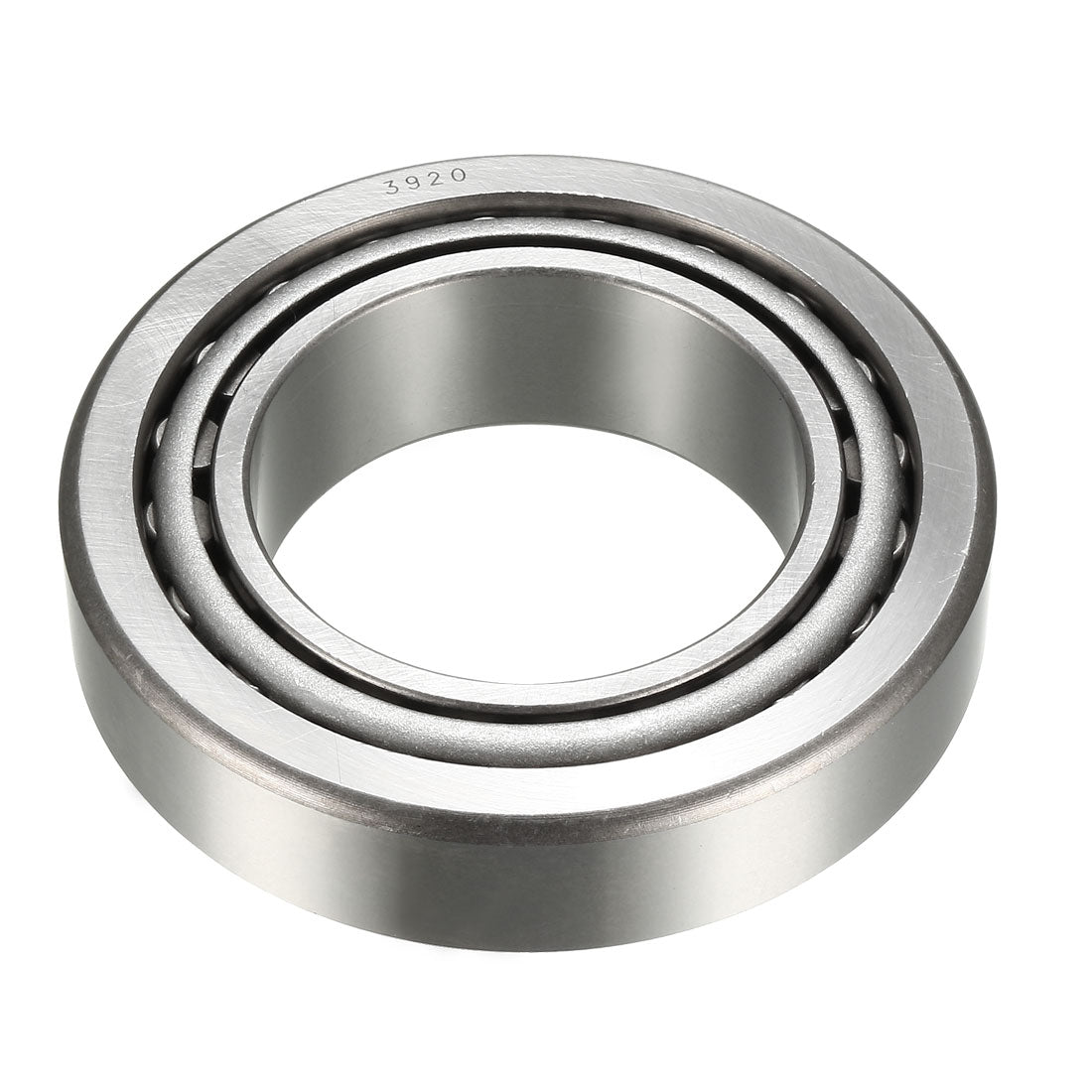

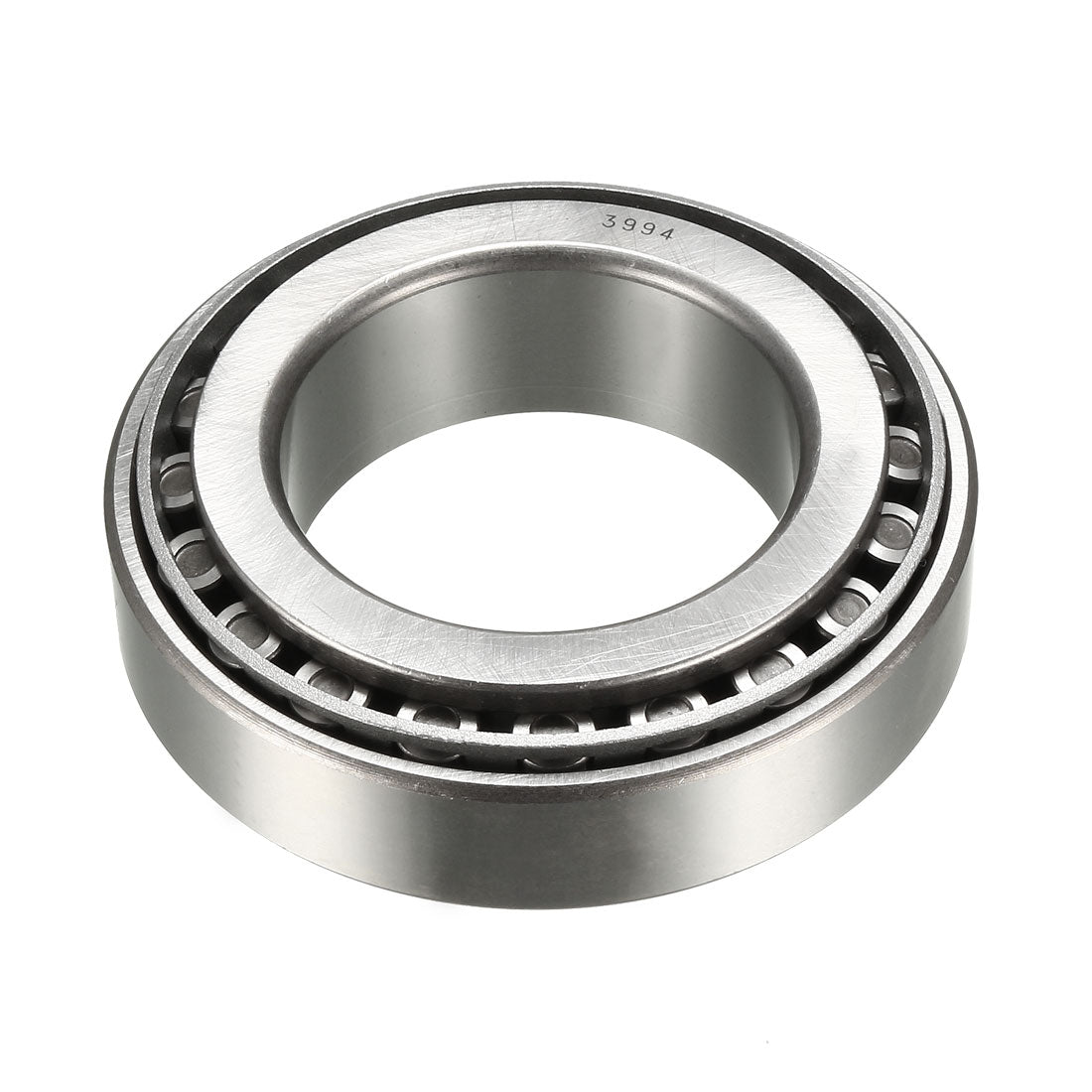

Harfington Uxcell 3994/3920 Tapered Roller Bearing Cone and Cup Set 2.625" Bore 4.4375" O.D.

Uxcell 3994/3920 Tapered Roller Bearing Cone and Cup Set 2.625" Bore 4.4375" O.D.

ID:1143304
ID:1143304
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Model: 3994/3920 (Bore: 66.675mm / 2.625", Outer Diameter: 112.713mm / 4.4375", Width: 30.048mm / 1.183")
  • Single row tapered roller bearings must be used either with a second bearing or as a matched pair
  • Components are separable and interchangeable that easy for maintenance
  • Features low friction and low noise that provide operational reliability
  • Static Load Rating of 191kN and Dynamic Load Rating of 139kN
About this item
  • Model: 3994/3920 (Bore: 66.675mm / 2.625", Outer Diameter: 112.713mm / 4.4375", Width: 30.048mm / 1.183")
  • Single row tapered roller bearings must be used either with a second bearing or as a matched pair
  • Components are separable and interchangeable that easy for maintenance
  • Features low friction and low noise that provide operational reliability
  • Static Load Rating of 191kN and Dynamic Load Rating of 139kN
Specification

Specification

SKU
a19040300ux1019
Cone model
3994
Cup model
3920

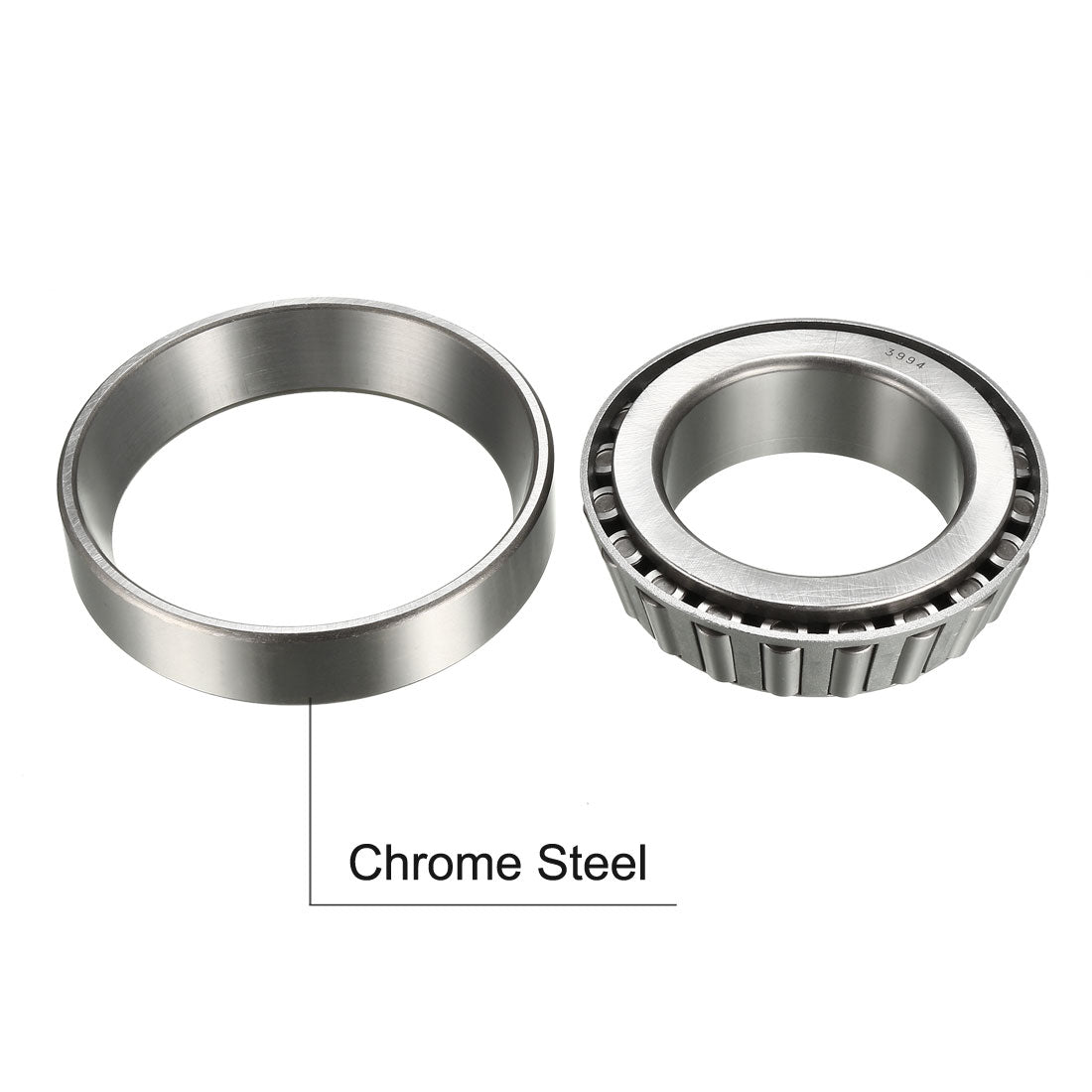

Material
Chrome Steel
Bore diameter
66.675mm / 2.625 inch
Outside diameter
112.713mm / 4.4375 inch
Total thickness (t)
30.048mm / 1.183 inch
Dynamic load rating (cr)
139000N
Static load rating (cor)
191000N
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Description:

  • Single Row Tapered Roller Bearings are designed to accommodate combined loads.
  • These bearings consist of an inner ring (cone), an outer ring (cup), a cage and rollers, which distributes radial and loads evenly across the roller.
  • The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).
  • The separable components are interchangeable, which facilitate mounting, dismounting and also maintenance inspection routines.
  • This single tapered roller bearing is for use in high-load, moderate-speed applications that include conveyor systems.

Specification:

Cone Model: 3994

Cup Model: 3920

Material: Chrome Steel

Bore Diameter: 66.675mm / 2.625"

Outside Diameter: 112.713mm / 4.4375"

Total Thickness (T): 30.048mm / 1.183"

Dynamic Load Rating (Cr): 139000N

Static Load Rating (Cor): 191000N

$25.87 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell 3994/3920 Tapered Roller Bearing Cone and Cup Set 2.625" Bore 4.4375" O.D. 1143304 $25.87
Products Title ID Price Qty
Uxcell 3994/3920 Tapered Roller Bearing Cone and Cup Set 2.625" Bore 4.4375" O.D. 1143304 $25.87
Uxcell 13889/13836 Tapered Roller Bearing Cone and Cup Set 1.5" Bore 2.5625" O.D. 1028929 $11.47
Uxcell 15523 Tapered Roller Bearing Outer Race Cup 2.375" O.D., 0.625" Width 1035099 $6.94
Uxcell 14136A/14276 Tapered Roller Bearing Cone and Cup Set 1.375" Bore 2.717" O.D. 1006583 $12.50
Uxcell 12580 Tapered Roller Bearing Single Cone 0.8125" Bore 0.7813" Width 1088516 $8.95
Uxcell 08231 Tapered Roller Bearing Outer Race Cup 2.3125" O.D., 0.4219" Width 1088528 $6.60
Uxcell LM29749/LM29710 Tapered Roller Bearing Cone and Cup Set 1.5" Bore 2.5625" O.D. 1084335 $9.64
Uxcell M84549/M84510 Tapered Roller Bearing Cone and Cup Set 1.0625" Bore 2.25" O.D. 1084336 $11.00
Uxcell LM603049/LM603011 Tapered Roller Bearing Cone and Cup Set 1.78" Bore 3.063" O.D. 1096674 $12.18
Uxcell LM29749 Tapered Roller Bearing Single Cone 1.5" Bore 0.72" Width 2pcs 1096678 $11.29
Uxcell M12649/M12610 Tapered Roller Bearing Cone and Cup Set 0.8437" Bore 1.9687" O.D. 1079944 $8.04
Uxcell 320/28X Tapered Roller Bearing Cone and Cup Set 28mm Bore 52mm O.D. 2pcs 1079952 $12.51
Uxcell 17887/17831 Tapered Roller Bearing Cone and Cup Set 1.7807" Bore 3.149" O.D. 1205027 $13.52
Uxcell LM67048/LM67010 Tapered Roller Bearing Cone and Cup Set 1.25" Bore 2.33" OD 2pcs 1067171 $12.33
Uxcell A4050 Tapered Roller Bearing Single Cone 0.5" Bore 0.4326" Width 1252010 $10.64
Uxcell 14125A/14276 Tapered Roller Bearing Cone and Cup Set 1.25" Bore 2.717" O.D. 1240124 $12.52
Uxcell 12580/12520 Tapered Roller Bearing Cone and Cup Set 0.8125" Bore 1.938" O.D. 1006577 $10.23
Uxcell LM102949/LM102910 Tapered Roller Bearing Cone and Cup 1.78" Bore 2.89" OD 2pcs 1047154 $18.25
Uxcell T151 Thrust Tapered Roller Bearings 1.51" Bore 2.859" O.D. 0.8438" Width 2pcs 1084326 $18.49
Uxcell LM102949/LM102910 Tapered Roller Bearing Cone and Cup 1.78" Bore 2.89" O.D. 1084333 $10.71
Uxcell LM67048 Tapered Roller Bearing Single Cone 1.25" Bore 0.66" Width 2pcs 1084338 $9.22
Uxcell 13889 Tapered Roller Bearing Single Cone 1.5" Bore 0.4688" Width 1088521 $9.23
Uxcell 469/453X Tapered Roller Bearing Cone and Cup Set 2.25" Bore 4.125" O.D. 1088525 $23.23
Uxcell LM67048/LM67010 Tapered Roller Bearing Cone and Cup Set 1.25" Bore 2.328" O.D. 1088530 $8.32
Uxcell HR320/28XJ Tapered Roller Bearing Cone and Cup Set 28mm Bore 52mm O.D. 2pcs 1088533 $12.61
Uxcell 390A/394A Tapered Roller Bearing Cone and Cup Set 2.5" Bore 4.3307" O.D. 1092739 $20.44
Uxcell 320/28X Tapered Roller Bearing Cone and Cup Set 28mm Bore 52mm O.D. 16mm Width 1092743 $8.66
Uxcell LM11949 Tapered Roller Bearing Single Cone 0.75" Bore 0.655" Width 2pcs 1092744 $8.18
Uxcell T101/904A1 Thrust Tapered Roller Bearings 1.01" Bore 2" O.D. 0.625" Width 2pcs 1108468 $11.95
Uxcell A2047/A2126 Tapered Roller Bearing Cone and Cup Set 0.4719" Bore 1.2595" O.D. 1144262 $16.50
Uxcell 16150 Tapered Roller Bearing Single Cone 1.5" Bore 0.8125" Width 1144271 $8.30
Qty: 0 Item(s)
Total Price: $0.00
View more

Description

Description

Description:

  • Single Row Tapered Roller Bearings are designed to accommodate combined loads.
  • These bearings consist of an inner ring (cone), an outer ring (cup), a cage and rollers, which distributes radial and loads evenly across the roller.
  • The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).
  • The separable components are interchangeable, which facilitate mounting, dismounting and also maintenance inspection routines.
  • This single tapered roller bearing is for use in high-load, moderate-speed applications that include conveyor systems.

Specification:

Cone Model: 3994

Cup Model: 3920

Material: Chrome Steel

Bore Diameter: 66.675mm / 2.625"

Outside Diameter: 112.713mm / 4.4375"

Total Thickness (T): 30.048mm / 1.183"

Dynamic Load Rating (Cr): 139000N

Static Load Rating (Cor): 191000N
