Harfington Tapered Roller Bearing Single Cone and Outer Race Cup

Tapered Roller Bearing Single Cone and Outer Race Cup

ID:1088517
ID:1088517
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
1.31" X 3"
Size
1pcs
Package Content
About this item
  • Model: 2790/2720 (Bore: 33.338mm / 1.3125", Outer Diameter: 76.2mm / 3", Width: 25.72mm / 1.01")
  • Single row tapered roller bearings must be used either with a second bearing or as a matched pair
  • Components are separable and interchangeable that easy for maintenance
  • Features low friction and low noise that provide operational reliability
  • Static Load Rating of 102kN and Dynamic Load Rating of 86.9kN
About this item
  • Model: 2790/2720 (Bore: 33.338mm / 1.3125", Outer Diameter: 76.2mm / 3", Width: 25.72mm / 1.01")
  • Single row tapered roller bearings must be used either with a second bearing or as a matched pair
  • Components are separable and interchangeable that easy for maintenance
  • Features low friction and low noise that provide operational reliability
  • Static Load Rating of 102kN and Dynamic Load Rating of 86.9kN
Specification

Specification

SKU
a19040300ux0940
Cone model
2790
Cup model
2720
Material
Chrome Steel
Bore diameter
33.338mm / 1.3125 inch
Outside diameter
76.2mm / 3 inch
Total thickness (t)
25.72mm / 1.01 inch
Dynamic load rating (cr)
86900N
Static load rating (cor)
102000N
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Description:

  • Single Row Tapered Roller Bearings are designed to accommodate combined loads.

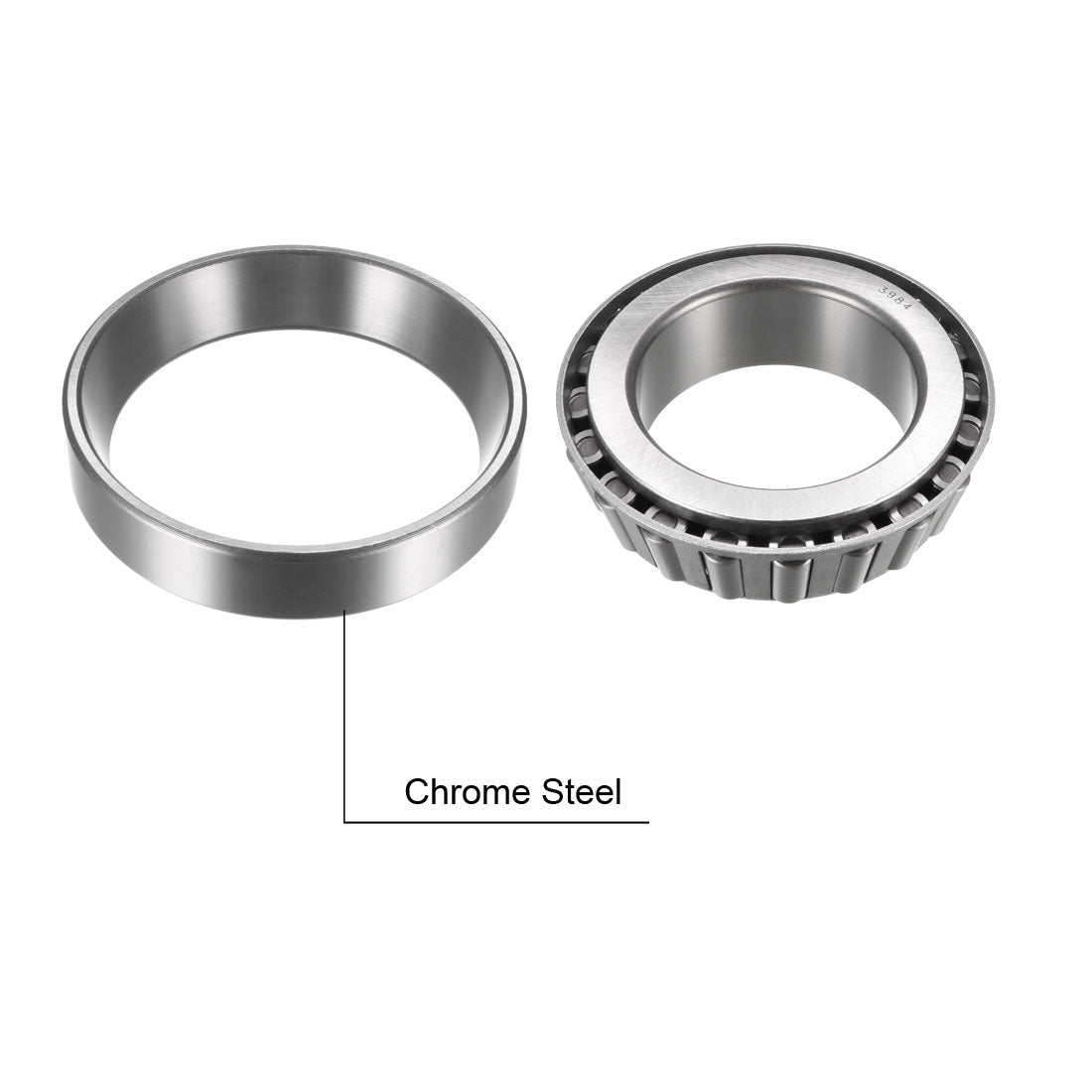

  • These bearings consist of an inner ring (cone), an outer ring (cup), a cage and rollers, which distributes radial and loads evenly across the roller.
  • The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).
  • The separable components are interchangeable, which facilitate mounting, dismounting and also maintenance inspection routines.
  • This single tapered roller bearing is for use in high-load, moderate-speed applications that include conveyor systems.





Specification:

Cone Model: 2790

Cup Model: 2720

Material: Chrome Steel

Bore Diameter: 33.338mm / 1.3125"

Outside Diameter: 76.2mm / 3"

Total Thickness (T): 25.72mm / 1.01"

Dynamic Load Rating (Cr): 86900N

Static Load Rating (Cor): 102000N

$17.33 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: 0 Item(s)
Total Price: $0.00
View more

Description

Description

Description:

  • Single Row Tapered Roller Bearings are designed to accommodate combined loads.
  • These bearings consist of an inner ring (cone), an outer ring (cup), a cage and rollers, which distributes radial and loads evenly across the roller.
  • The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).
  • The separable components are interchangeable, which facilitate mounting, dismounting and also maintenance inspection routines.
  • This single tapered roller bearing is for use in high-load, moderate-speed applications that include conveyor systems.





Specification:

Cone Model: 2790

Cup Model: 2720

Material: Chrome Steel

Bore Diameter: 33.338mm / 1.3125"

Outside Diameter: 76.2mm / 3"

Total Thickness (T): 25.72mm / 1.01"

Dynamic Load Rating (Cr): 86900N

Static Load Rating (Cor): 102000N
