Harfington Uxcell Deep Groove Ball Bearing 624ZZ Double Shield, 4 x 13 x 5mm Carbon Steel Bearings, 1pcs

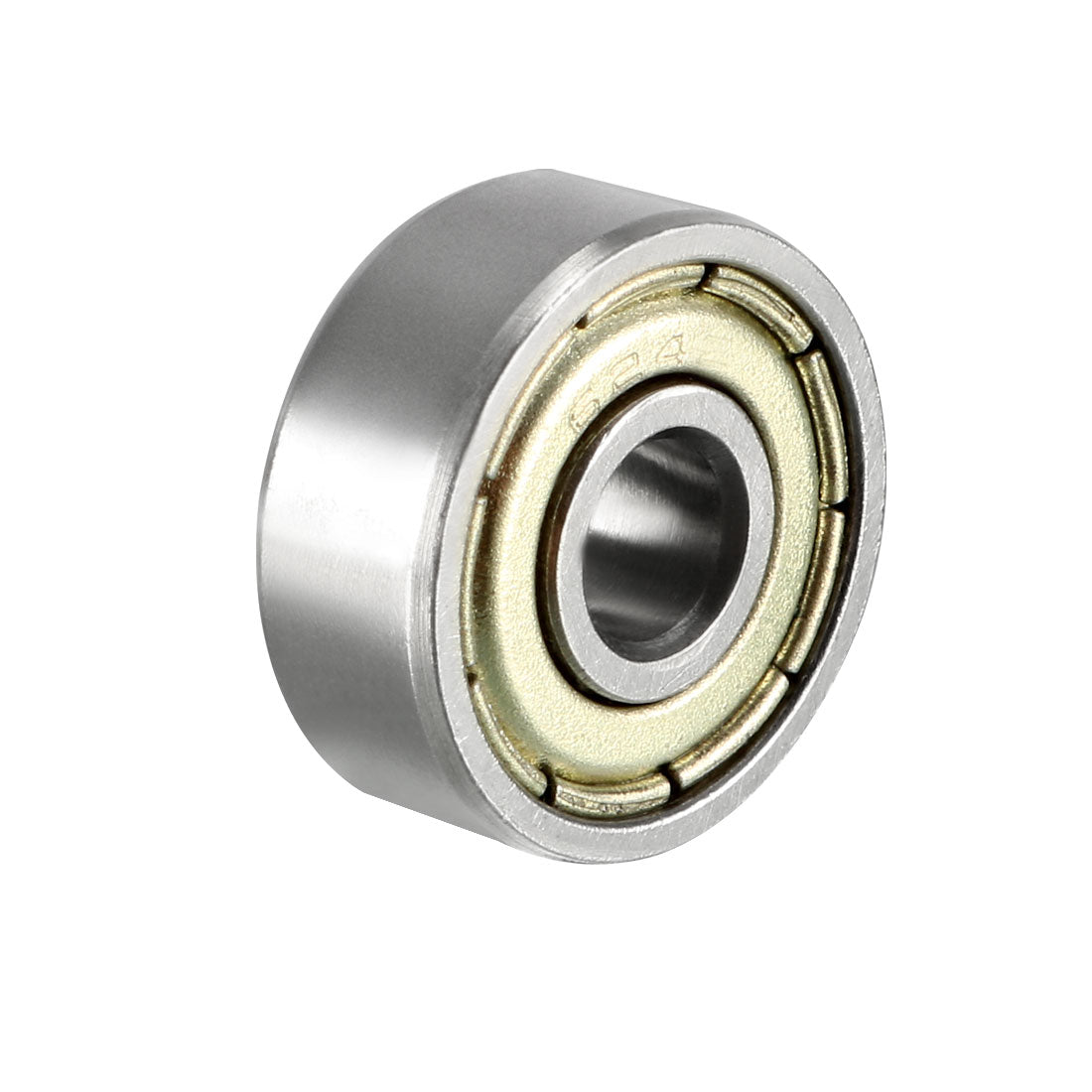

Uxcell Deep Groove Ball Bearing 624ZZ Double Shield, 4 x 13 x 5mm Carbon Steel Bearings, 1pcs

ID:
$5.13 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
About this item
  • Size: 624ZZ (Inner Dia.=4mm, Outer Dia.=13mm, Thickness=5mm)
  • Shields on BOTH SIDES of the bearing to keep dust out. Suitable for high speed operation
  • Made from Carbon Steel, features with good anti-rust and corrosion resistance
  • ABEC Tolerance 1 (P0) for most general use
  • Pre-Lubricated, Easy to maintain
  • In stock, ready to ship
Cart
Cart
About this item
  • Size: 624ZZ (Inner Dia.=4mm, Outer Dia.=13mm, Thickness=5mm)
  • Shields on BOTH SIDES of the bearing to keep dust out. Suitable for high speed operation
  • Made from Carbon Steel, features with good anti-rust and corrosion resistance
  • ABEC Tolerance 1 (P0) for most general use
  • Pre-Lubricated, Easy to maintain
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

  • Deep Groove Ball Bearings are one of the most widely used rolling bearings.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
  • With small friction and high-limit speed, Deep Groove Ball Bearings are cost-effective and require little maintenance.
  • Carbon Steel bearings are better in toughness than chrome steel bearings after quenching. These cost-effective bearings are widely used in areas with low requirements for hardness.
  • Single-row, pre-lubricated, normal accuracy.

Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:

Model: 624ZZ

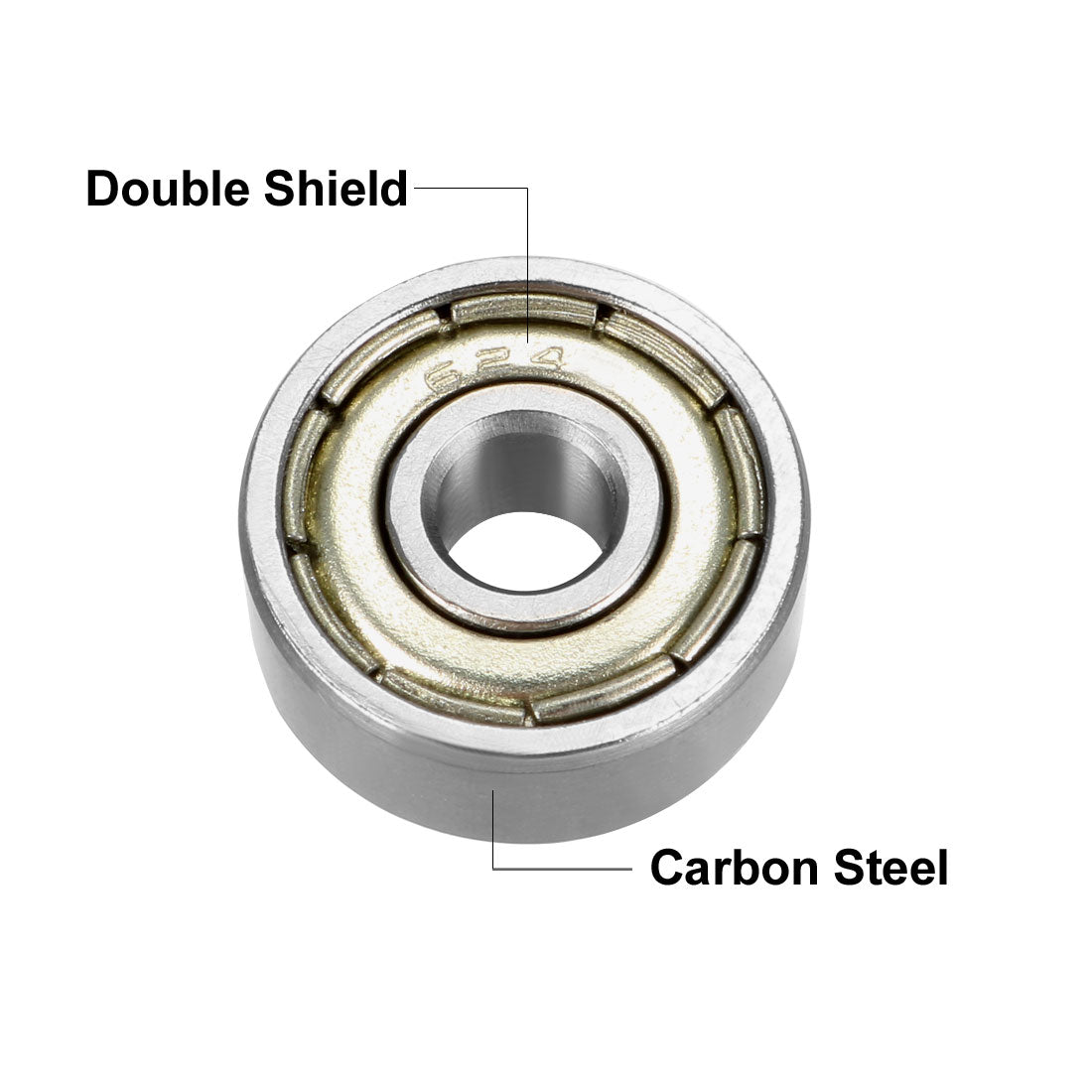

Shield Type: Double Shield

Material: Carbon Steel

Cage Material: Stamping Steel

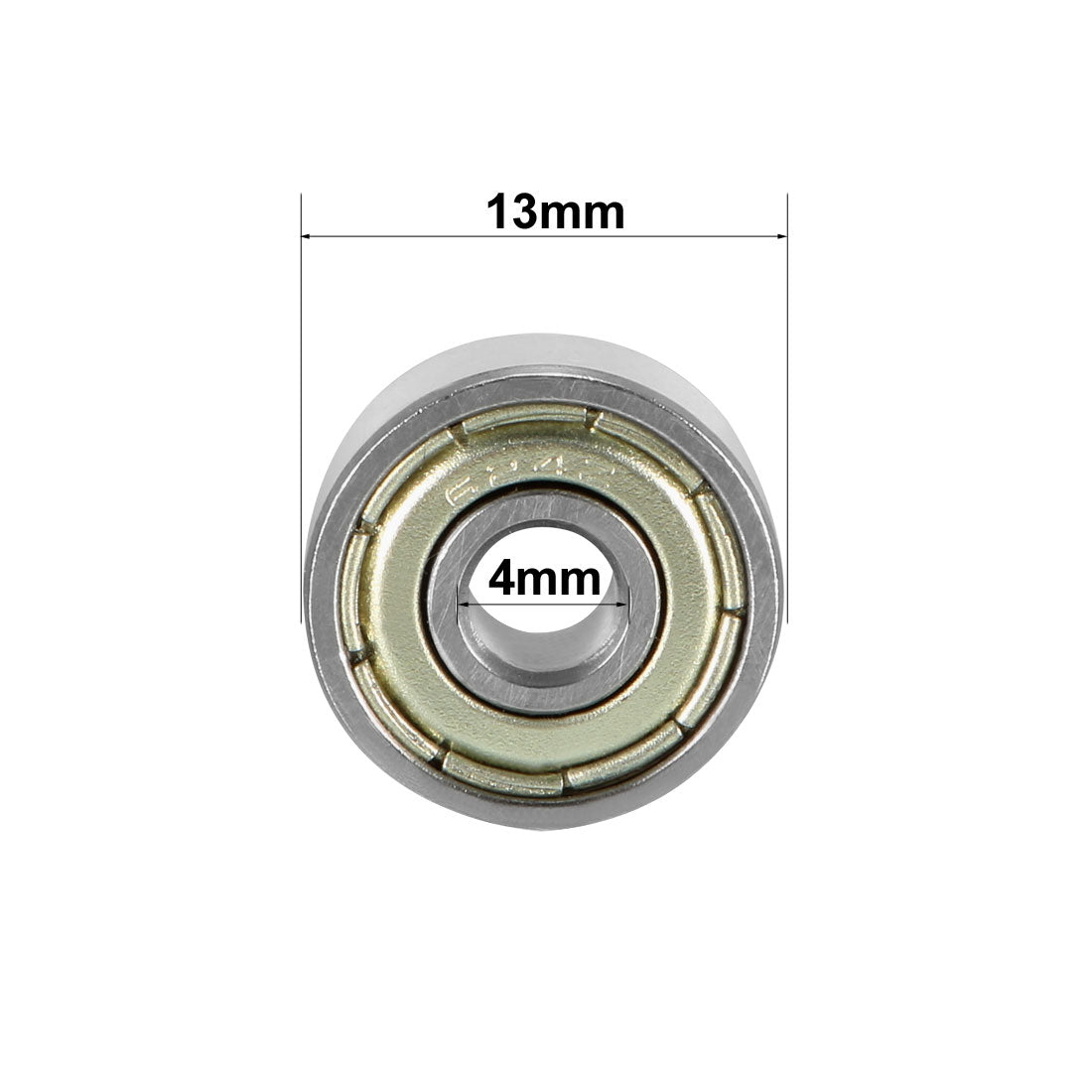

Inner Diameter (d): 4mm

Outer Diameter (D): 13mm

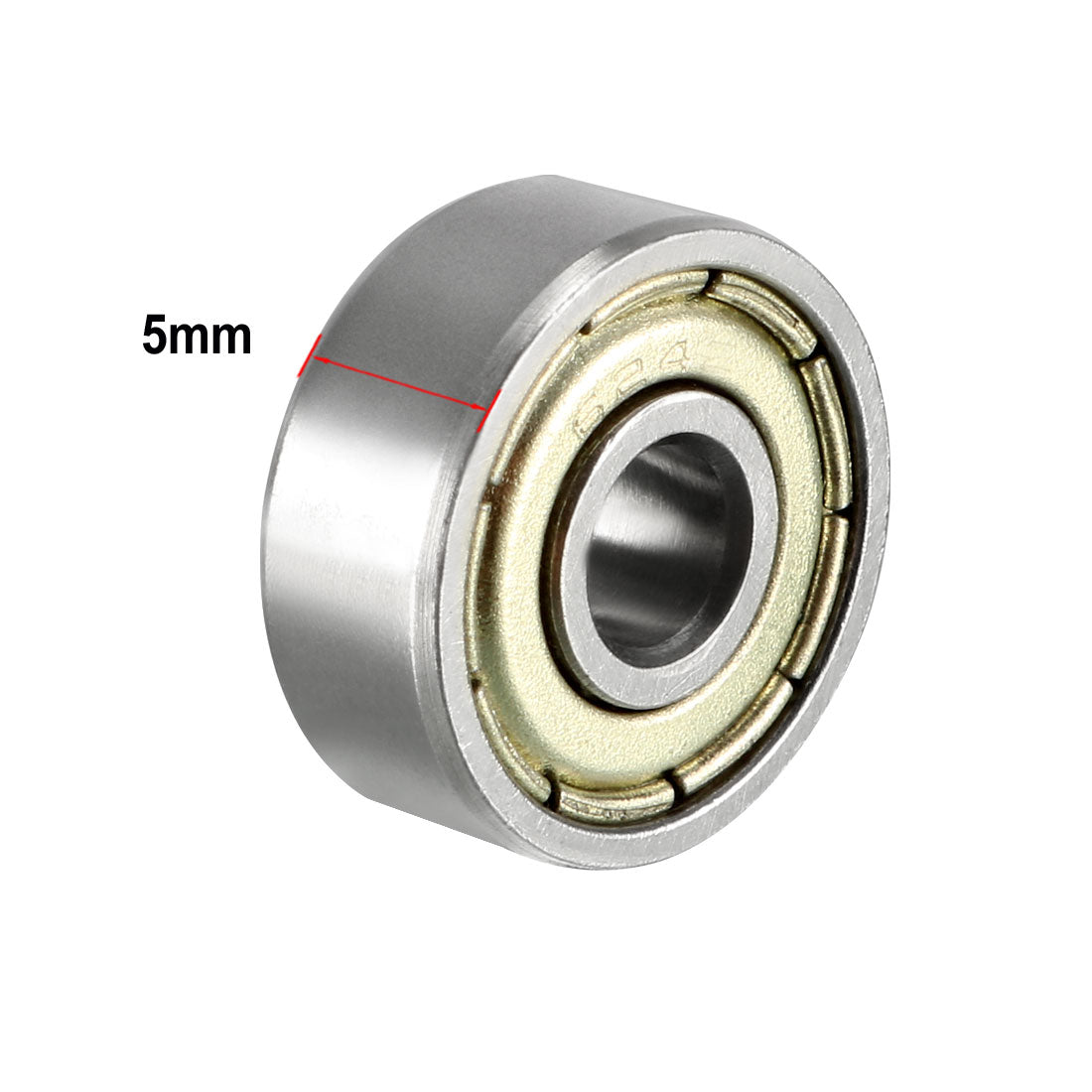

Thickness (B): 5mm

Dynamic Load Rating (Cr): 1.3kN;

Static Load Rating (Cor): 0.49kN

Accuracy Class: P0 (ABEC-1)

Number of Pack: 1 Pcs

Weight: 4g

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
{[item.title]} {[item.id]} {[handleCurrency(item.price*100)]}
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

  • Deep Groove Ball Bearings are one of the most widely used rolling bearings.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
  • With small friction and high-limit speed, Deep Groove Ball Bearings are cost-effective and require little maintenance.
  • Carbon Steel bearings are better in toughness than chrome steel bearings after quenching. These cost-effective bearings are widely used in areas with low requirements for hardness.
  • Single-row, pre-lubricated, normal accuracy.

Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:

Model: 624ZZ

Shield Type: Double Shield

Material: Carbon Steel

Cage Material: Stamping Steel

Inner Diameter (d): 4mm

Outer Diameter (D): 13mm

Thickness (B): 5mm

Dynamic Load Rating (Cr): 1.3kN;

Static Load Rating (Cor): 0.49kN

Accuracy Class: P0 (ABEC-1)

Number of Pack: 1 Pcs

Weight: 4g

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
