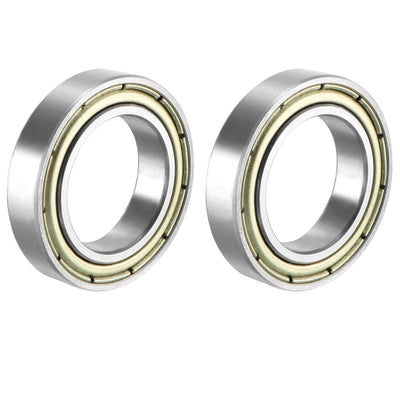

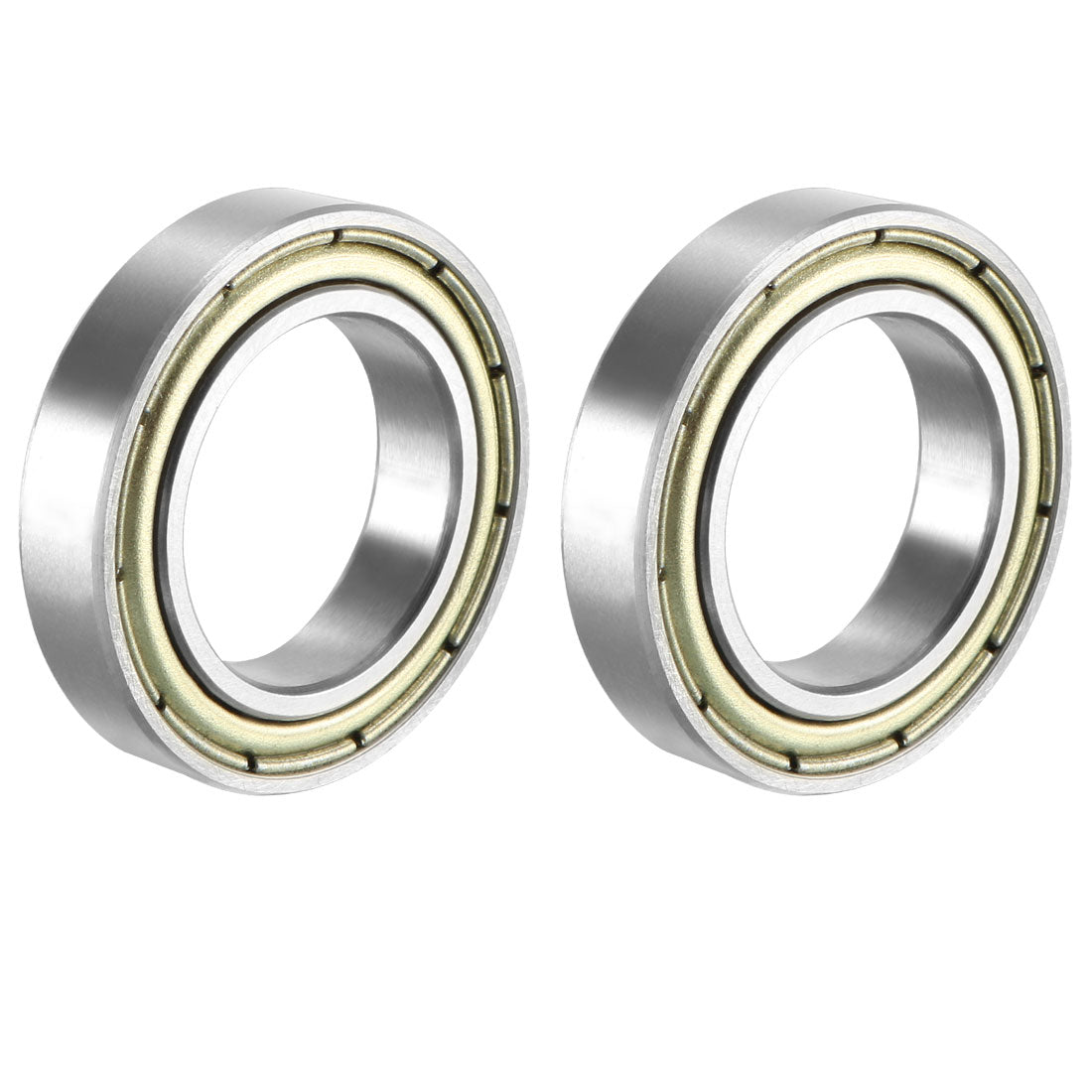

Harfington Uxcell Deep Groove Ball Bearing 6802ZZ Double Shield, 15mm x 24mm x 5mm Carbon Steel Bearings 2Pcs

Uxcell Deep Groove Ball Bearing 6802ZZ Double Shield, 15mm x 24mm x 5mm Carbon Steel Bearings 2Pcs

ID:
$5.42 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
About this item

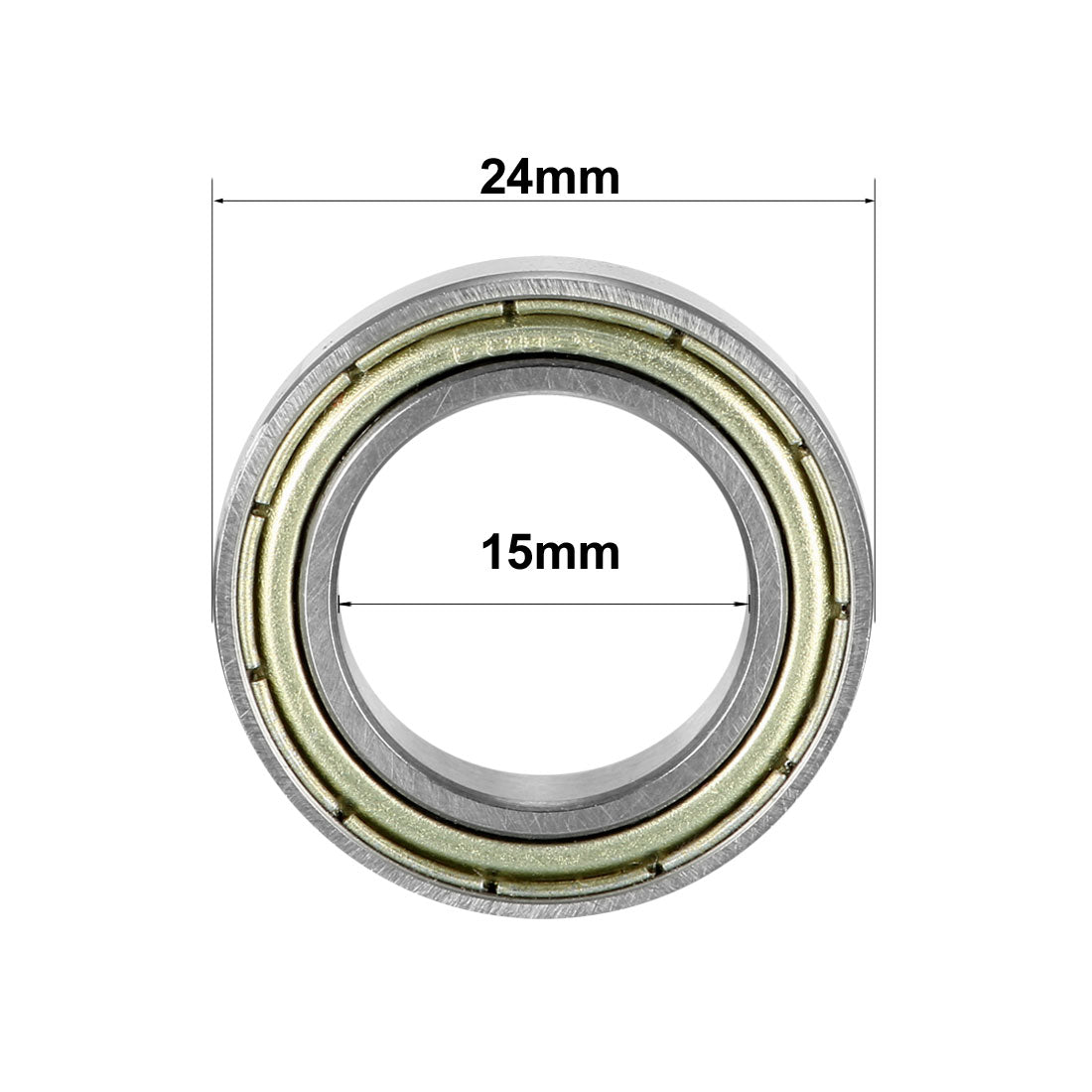

  • Size: 6802ZZ (Inner Dia.=15mm, Outer Dia.=24mm, Thickness=5mm)
  • Shields on BOTH SIDES of the bearing to keep dust out. Suitable for high speed operation
  • Made from Carbon Steel, durability and resistance to deformity under heavy loads
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
  • Pre-Lubricated, Easy to maintain
  • In stock, ready to ship
Cart
Cart
About this item
  • Size: 6802ZZ (Inner Dia.=15mm, Outer Dia.=24mm, Thickness=5mm)
  • Shields on BOTH SIDES of the bearing to keep dust out. Suitable for high speed operation
  • Made from Carbon Steel, durability and resistance to deformity under heavy loads
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
  • Pre-Lubricated, Easy to maintain
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
  • With small friction and high-limit speed, Uxcell's Deep Groove Ball Bearings are cost-effective and require little maintenance.
  • Carbon Steel bearings are better in toughness than chrome steel bearings after quenching. These cost-effective bearings are widely used in areas with low requirements for Mohs hardness.
  • Single-row, pre-lubricated, normal accuracy.

Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:

Model: 6802ZZ

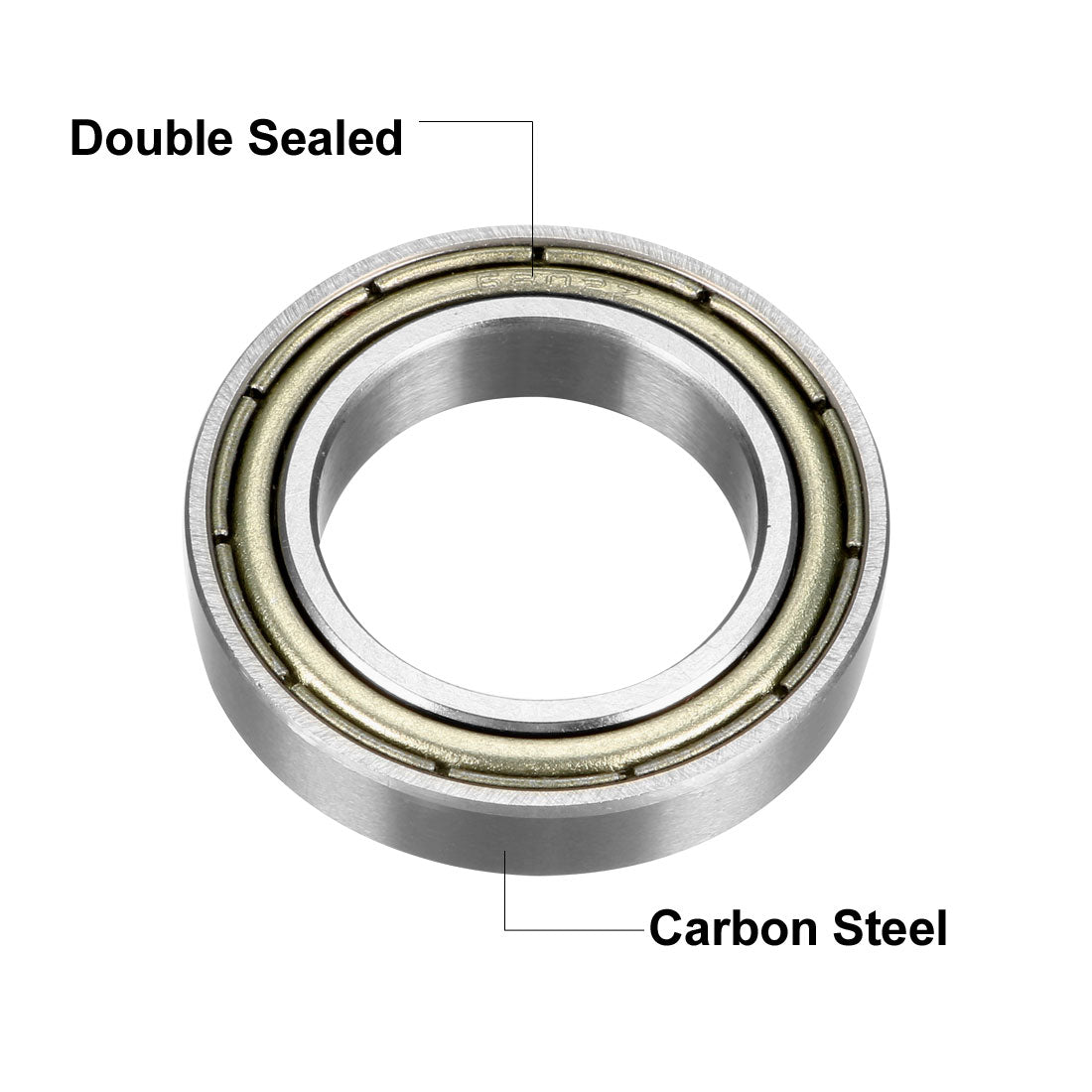

Shield Type: Double Shield

Material:High-Carbon Steel

Heat Treatment: Quenching

Hardness: HRC50-55

Cage Material: Stamping Steel

Inner Diameter (d): 15mm

Outer Diameter (D): 24mm

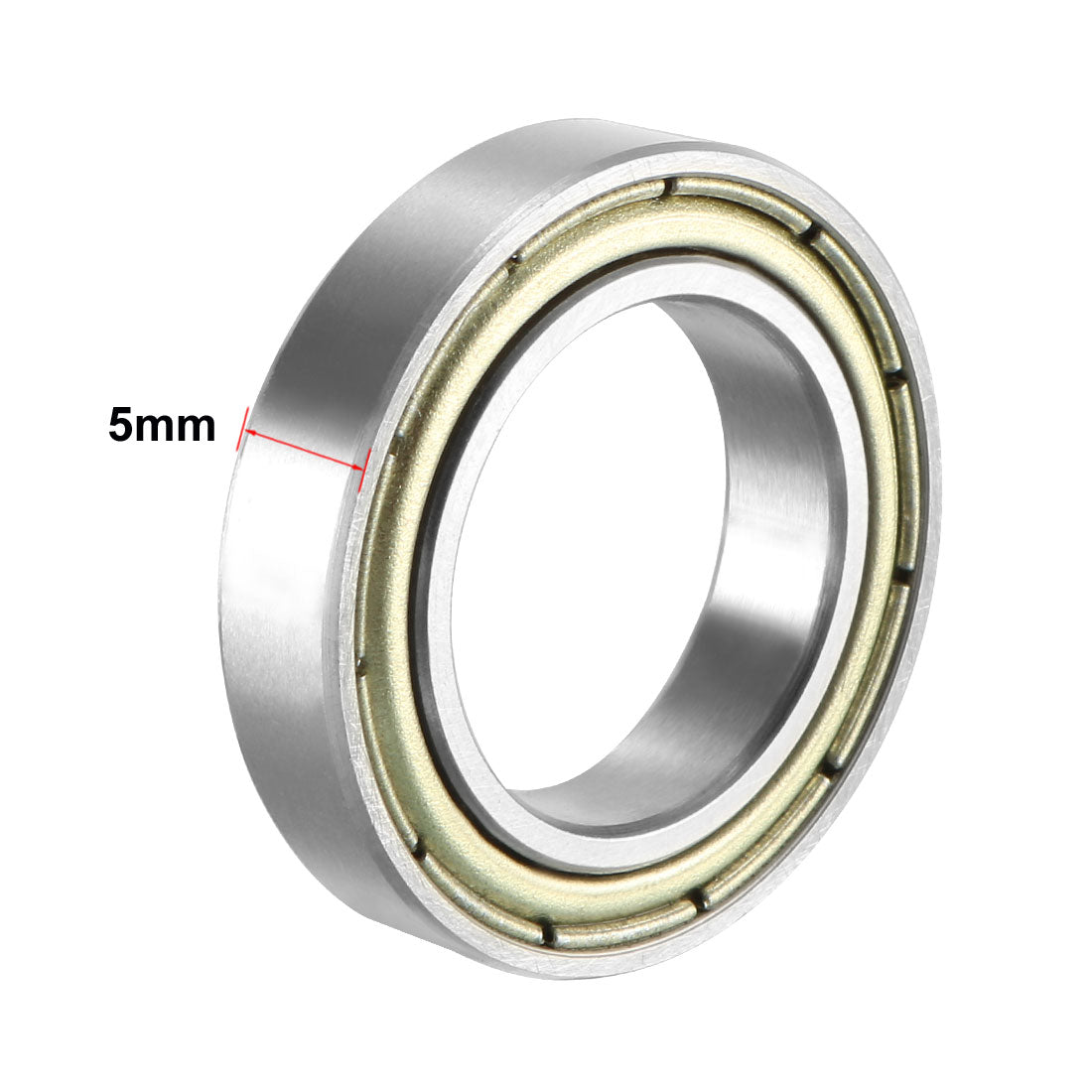

Thickness (B): 5mm

Dynamic Load Rating (Cr): 2.1kN

Static Load Rating (Cor): 1.3kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 2 Pcs

Weight: 18g

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
{[item.title]} {[item.id]} {[handleCurrency(item.price*100)]}
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
  • With small friction and high-limit speed, Uxcell's Deep Groove Ball Bearings are cost-effective and require little maintenance.
  • Carbon Steel bearings are better in toughness than chrome steel bearings after quenching. These cost-effective bearings are widely used in areas with low requirements for Mohs hardness.
  • Single-row, pre-lubricated, normal accuracy.

Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:

Model: 6802ZZ

Shield Type: Double Shield

Material:High-Carbon Steel

Heat Treatment: Quenching

Hardness: HRC50-55

Cage Material: Stamping Steel

Inner Diameter (d): 15mm

Outer Diameter (D): 24mm

Thickness (B): 5mm

Dynamic Load Rating (Cr): 2.1kN

Static Load Rating (Cor): 1.3kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 2 Pcs

Weight: 18g

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
