uxcell Uxcell 4 Pcs AC 250V 2A DPDT 2NO 2NC Momentary Push Button Switch
2/ 2

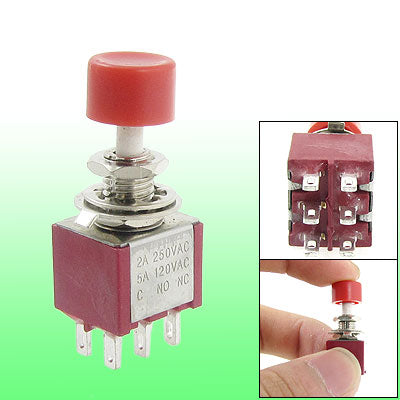

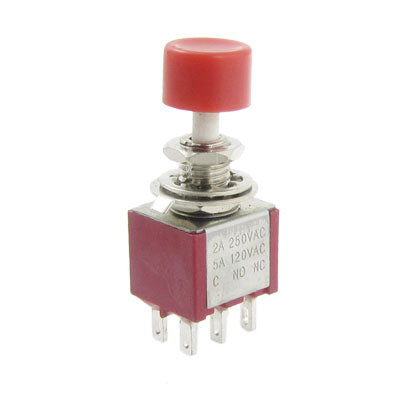

Uxcell 4 Pcs AC 250V 2A DPDT 2NO 2NC Momentary Push Button Switch

ID:1202179
ID:1202179
$7.93 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About this item
  • Product Name : Push Button Switch;Rated Voltage & Current : AC 250V, 2A;Contact Type : 2NO+2NC
  • Action Type : Momentary;Type : DPDT;Cap Diameter : 9.7mm / 0.38"
  • Mounting Hole Diameter : 6mm / 0.236";Body Size(Approx.) : 13 x 11.5 x 11.5mm / 0.5" x 0.45" x 0.45"(L*W*T)
  • Total Height : 34mm / 1.3";Material : Plastic, Metal
  • Weight : 25g;Package Content : 4 Pcs x Push Button Switch
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
About this item
  • Product Name : Push Button Switch;Rated Voltage & Current : AC 250V, 2A;Contact Type : 2NO+2NC
  • Action Type : Momentary;Type : DPDT;Cap Diameter : 9.7mm / 0.38"
  • Mounting Hole Diameter : 6mm / 0.236";Body Size(Approx.) : 13 x 11.5 x 11.5mm / 0.5" x 0.45" x 0.45"(L*W*T)
  • Total Height : 34mm / 1.3";Material : Plastic, Metal
  • Weight : 25g;Package Content : 4 Pcs x Push Button Switch
Specification

Specification

SKU
a12040900ux0580
Mount Hole Dia.
6mm
Contact Type
DPDT 2NO 2NC
Switch Action
Springs Back (Momentary)
Voltage
250V
Current
2A
Material
Plastic
Botton Type
Round
Button Color
Red
Pkg.Qty
4
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:
  • DPDT, 6 Pin terminals, 2NO 2NC contact type, push button Switch. Can be used on low voltage or high voltage circuits for switching lights or motors. Each switch comes with two hex nuts, a flat and a locking washer.

Product Variants

Products Voltage Current Contact Type Switch Action Button Dia. Mount Hole Dia. Overall Size(L*W*H) Botton Type Button Color Material Pkg.Qty ID Price Qty
Products Voltage Current Contact Type Switch Action Button Dia. Mount Hole Dia. Overall Size(L*W*H) Botton Type Button Color Material Pkg.Qty ID Price Qty
125V 0.5A SPST 1NO Springs Back (Momentary) 9mm 10mm / Round Green Plastic 5 1088943 $6.19
125V 1.5A/3A SPST Springs Back (Momentary) 8mm 13mm / Round Red Plastic 5 1199690 $5.86
125V 1.5A/3A SPST Springs Back (Momentary) / 15mm / Round Red,Green Plastic 10 1102500 $10.10
125V 1.5A/3A SPST Stays Switched (Maintained) / 12mm / Round Red Plastic 50 1190258 $13.63
125V 1.5A/3A SPST 1NO Springs Back (Momentary) 9mm 12.2mm / Round Red Plastic 2 1199682 $5.42
125V 1.5A/3A SPST 1NO Stays Switched (Maintained) 9mm 12.4mm / Round Red Plastic 5 1107345 $5.55
125V 2A SPST 1NO Stays Switched (Maintained) 7.8mm 10mm / Round Red Plastic 2 1109123 $5.38
125V 2A SPST 1NO Stays Switched (Maintained) 7.8mm 10mm / Round Red Plastic 10 1153531 $7.66
125V 2A SPST 1NO Springs Back (Momentary) 7.8mm 10mm / Round Red Plastic 20 1109125 $8.97
125V/250V 2A/5A 1NO 1NC Springs Back (Momentary) 6mm / 35*12*7mm Round Red Plastic 1 1001127 $5.71
125V/250V 2A/5A SPDT 1NO 1NC Springs Back (Momentary) / / 35*13*7mm Round Red Plastic 5 1106536 $8.23
125V/250V 6A SPST Springs Back (Momentary) 13mm 16mm / Round Green Plastic 20 1106817 $9.38
125V/250V 6A SPST Springs Back (Momentary) 10mm / / Round Red,Green Plastic 4 1195390 $6.50
125V/250V 16A SPDT 1NO 1NC Springs Back (Momentary) / / 50*40*17mm Round Red,Green Plastic 2 1112372 $6.96
125V/250V 3A/6A SPST Springs Back (Momentary) 8mm / / Round Green Plastic,Metal 5 1192002 $6.77
125V/250V 3A/6A SPST Springs Back (Momentary) 10mm / / Round Red Plastic 10 1102432 $7.90
125V/250V 1.5A/3A SPST Springs Back (Momentary) / 12.5mm 16*30mm Round Black Plastic 5 1099295 $5.86
125V/250V 1.5A/3A SPST Springs Back (Momentary) 9mm / 24*18mm Round Red,Green Plastic 10 1087141 $7.28
125V/250V 1.5A/3A SPST Springs Back (Momentary) 9mm / / Round Red Plastic,Metal 20 1188542 $9.20
125V/250V 1.5A/3A SPST Stays Switched (Maintained) / 12mm 16*22mm Round Red Plastic 10 1192021 $6.78
125V/250V 1A/3A SPST Stays Switched (Maintained) / / 15*15*30mm Round Red Plastic 2 1106730 $5.05
125V/250V 1A/3A SPST Stays Switched (Maintained) / / 15*15*30mm Round Red Plastic 20 1191368 $6.84
125V/250V / SPDT Springs Back (Momentary) / / 33*13*13mm Round Red Plastic 2 1194173 $6.10
120V 2A/5A DPST 2NO 2NC Springs Back (Momentary) 10mm 6mm / Round Red Plastic 1 1053902 $5.67
24V 3A SPST Springs Back (Momentary) / 6mm / Round Red Plastic 1 1106870 $5.51
250V 5A DPDT 2NO 2NC Springs Back (Momentary) 9mm / / Round Red Plastic 1 1195868 $6.39
250V 3A SPST Stays Switched (Maintained) 12mm / / Round Red Plastic 10 1193037 $6.77
/ / SPST 1NO Springs Back (Momentary) / / 25*21*15mm Round Red Plastic,Metal 5 1184762 $7.75
400V 10A DPST 1NO 1NC Springs Back (Momentary) / 22mm / Round Green Plastic,Metal 1 1191952 $6.47
240V / SPDT 1NO 1NC Springs Back (Momentary) 25mm / / Round Red Plastic 3 1112426 $8.00
Qty: 0 Item(s)
Total Price: $0.00
View more

Description

Description

  • DPDT, 6 Pin terminals, 2NO 2NC contact type, push button Switch. Can be used on low voltage or high voltage circuits for switching lights or motors. Each switch comes with two hex nuts, a flat and a locking washer.
