Harfington Uxcell FR144ZZ Flange Ball 1/8" x 1/4" x 7/64" Double Metal Shielded (GCr15) Chrome Steel Bearings 5pcs

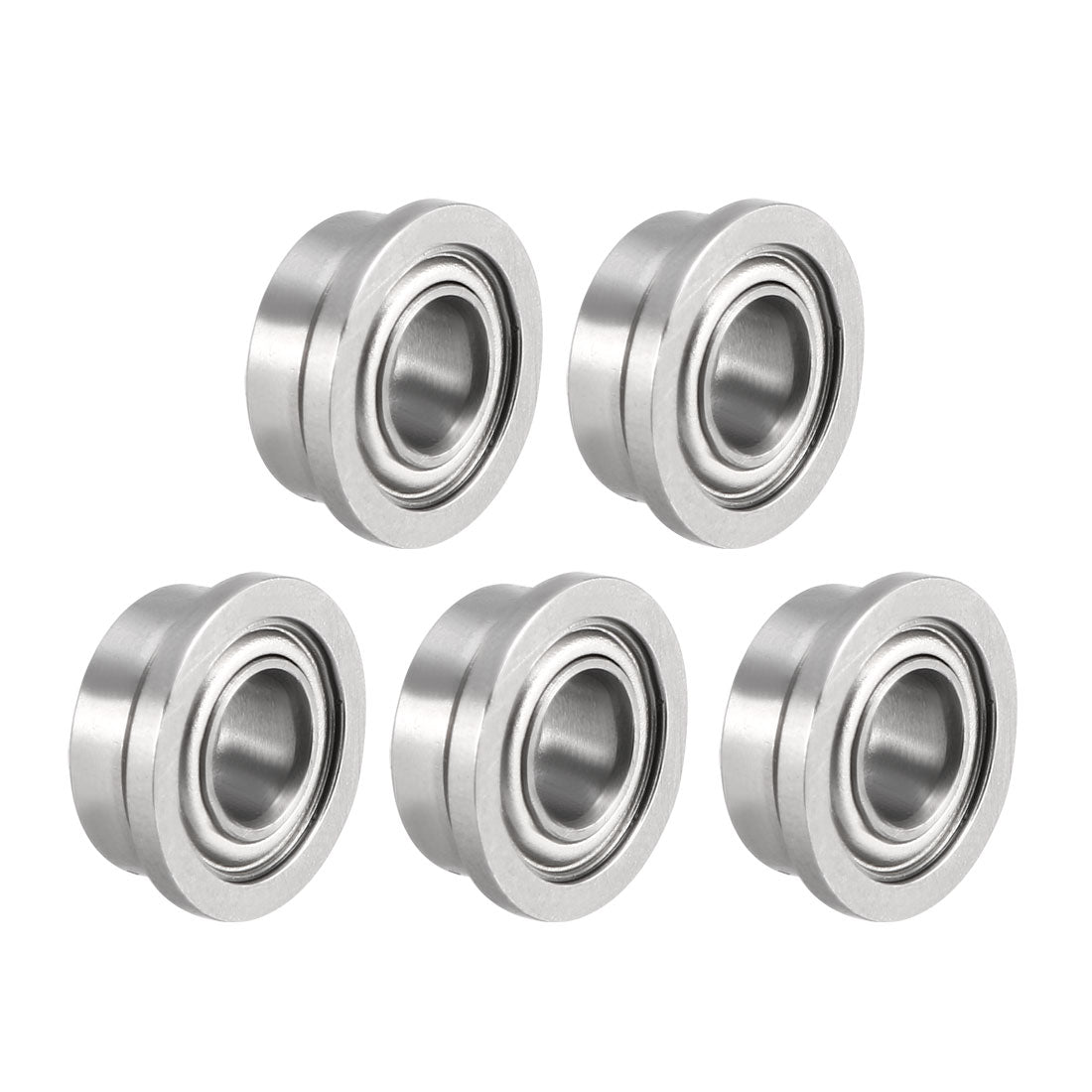

Uxcell FR144ZZ Flange Ball 1/8" x 1/4" x 7/64" Double Metal Shielded (GCr15) Chrome Steel Bearings 5pcs

ID:1014889
ID:1014889
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

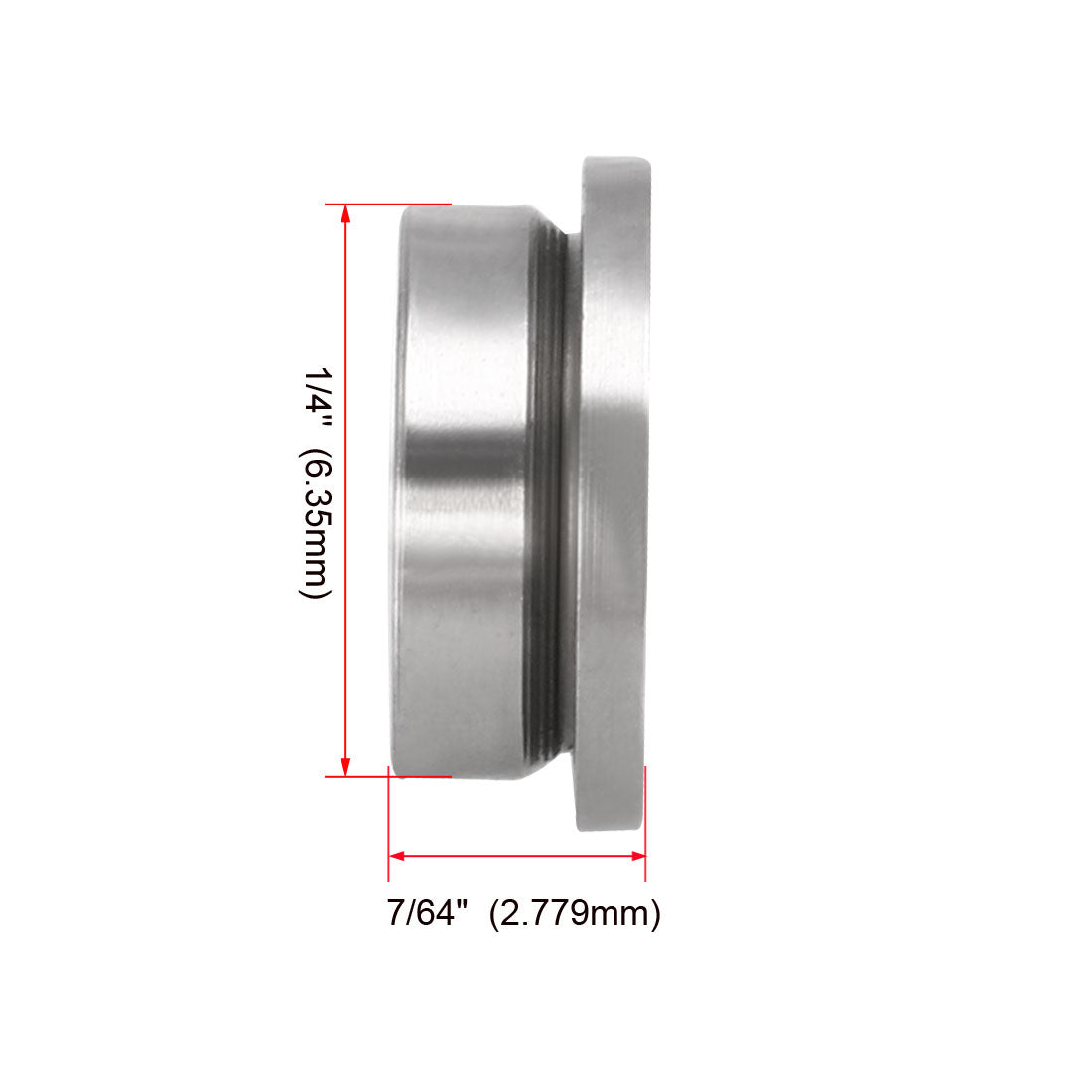

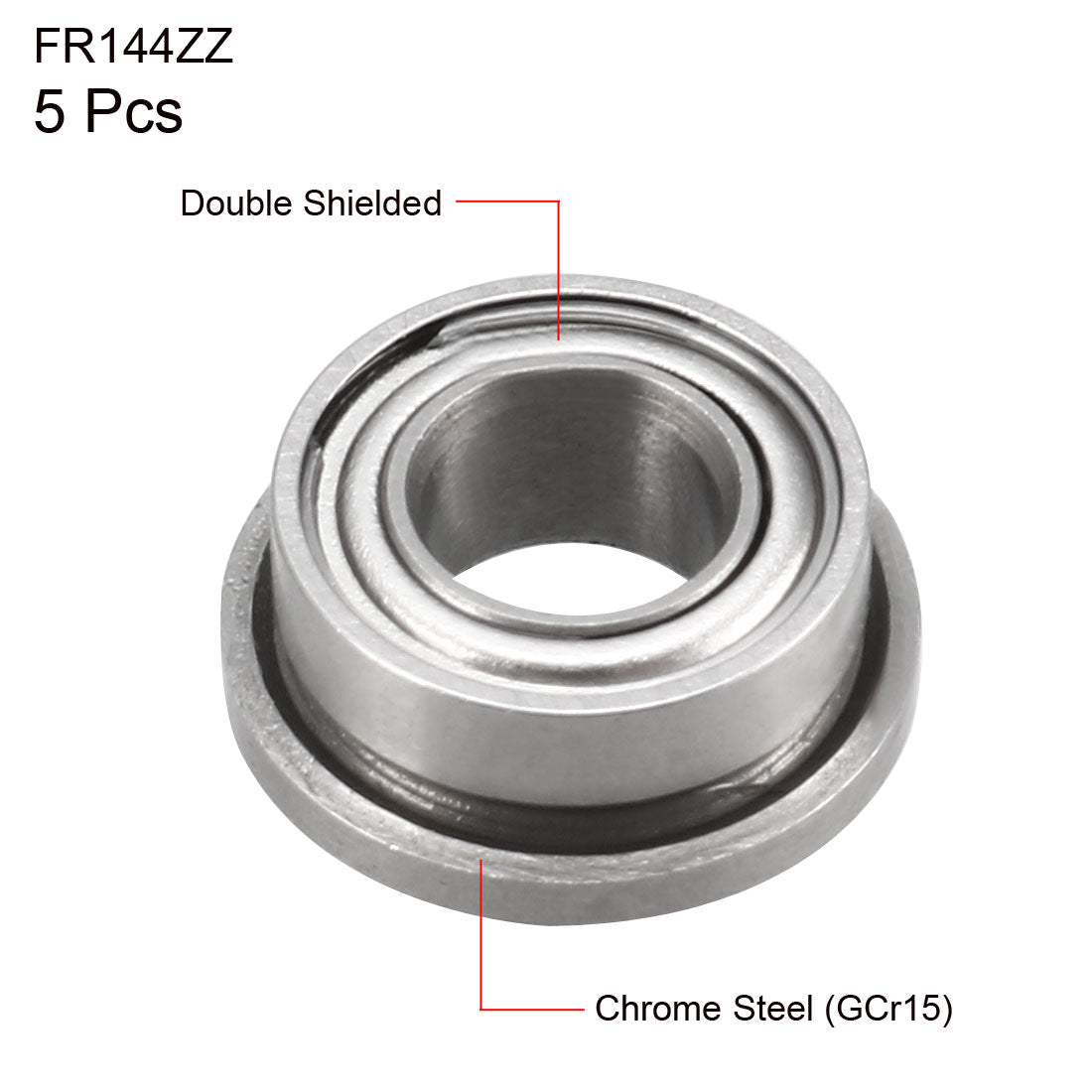

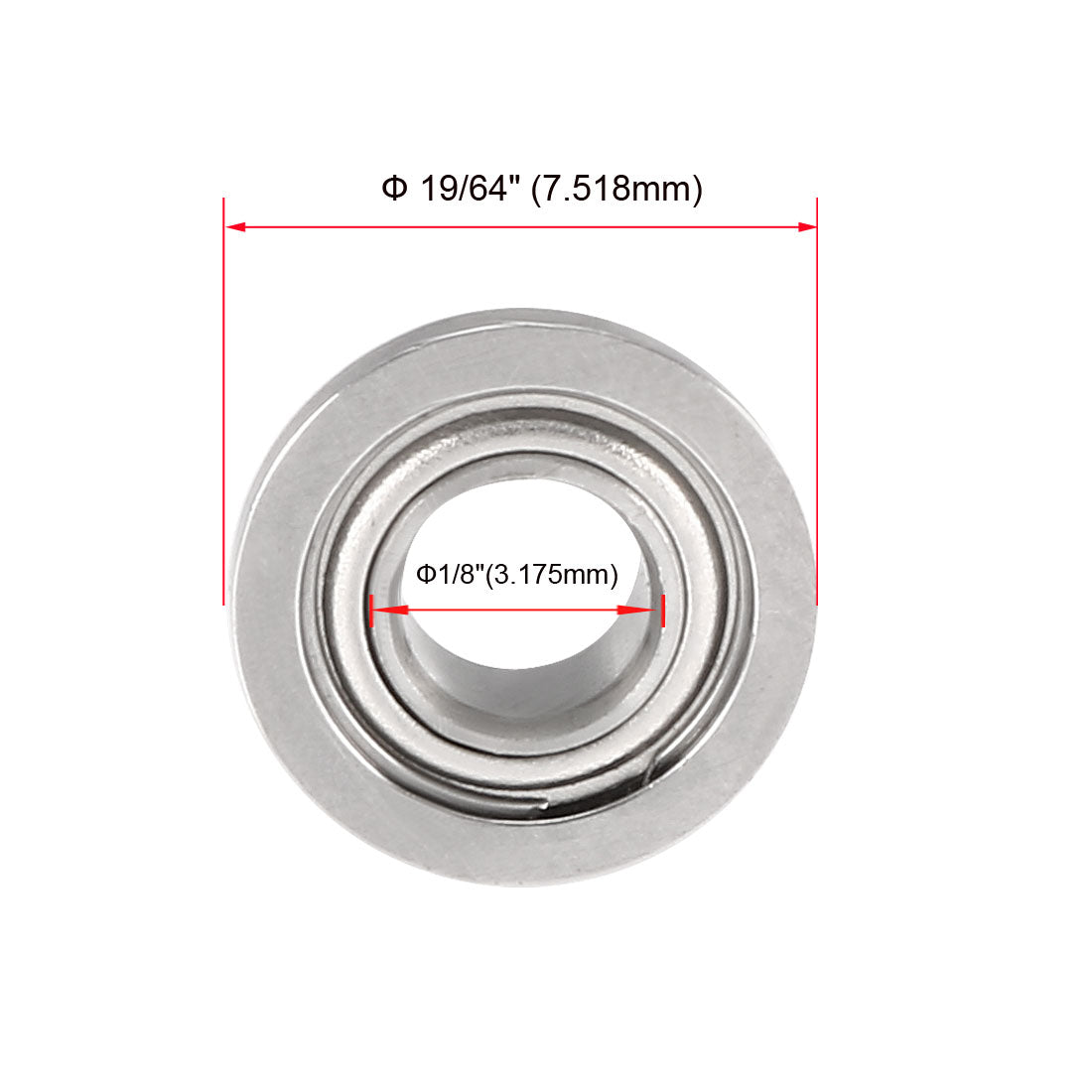

  • [Size] - FR144ZZ ABEC1 bearing (I.D.=1/8", O.D.=1/4", Thickness=7/64", Flange Dia: 19/64").
  • [Durable] - Chrome Steel (GCr15) races offer high hardness and great wear resistance, thus extend bearings' service life.
  • [Load & Speed] - Dynamic load rating of 54N and static load rating of 17N. The limiting speed is 67000 RPM under grease lubricating.
  • [Easy to Maintain] - Shields on Both sides to keep lubricant in. Z2 noise level for most general use.
  • [Application] - Commonly used for glider/rocker arm, wheel of the cart, lawnmower, printers, fax machines, power tools, and other homemade projects.
About this item
  • [Size] - FR144ZZ ABEC1 bearing (I.D.=1/8", O.D.=1/4", Thickness=7/64", Flange Dia: 19/64").
  • [Durable] - Chrome Steel (GCr15) races offer high hardness and great wear resistance, thus extend bearings' service life.
  • [Load & Speed] - Dynamic load rating of 54N and static load rating of 17N. The limiting speed is 67000 RPM under grease lubricating.
  • [Easy to Maintain] - Shields on Both sides to keep lubricant in. Z2 noise level for most general use.
  • [Application] - Commonly used for glider/rocker arm, wheel of the cart, lawnmower, printers, fax machines, power tools, and other homemade projects.
Specification

Specification

SKU
a19101800ux0509
Model
FR144ZZ
Shielded type
Double Shielded
Cage material
Stamping Steel
Inner diameter (d)
1/8" (3.175mm)
Outer diameter (d)
1/4" (6.35mm)
Thickness (b)
7/64" (2.779mm)
Flange dia
19/64" (7.518mm)
Flange thickness
0.79mm
Dynamic load rating (cr)
54 N
Static load rating (cor)
17 N
Accuracy class
P0 (ABEC1)
Noise level
Z2
Number of pack
5 Pcs
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Note:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on Both or Single side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.


Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.



Specification:

Model: FR144ZZ

Shielded Type: Double Shielded

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 1/8"  (3.175mm)

Outer Diameter (D):  1/4"  (6.35mm)

Thickness (B): 7/64"  (2.779mm)

Flange Dia.: 19/64"  (7.518mm)

Flange Thickness: 0.79mm

Dynamic Load Rating (Cr): 54 N

Static Load Rating (Cor): 17 N

Accuracy Class: P0 (ABEC1)

Noise Level: Z2

Number of Pack: 5 Pcs

$7.46 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell FR144ZZ Flange Ball 1/8" x 1/4" x 7/64" Double Metal Shielded (GCr15) Chrome Steel Bearings 5pcs 1014889 $7.46
Products Title ID Price Qty
Uxcell FR144ZZ Flange Ball 1/8" x 1/4" x 7/64" Double Metal Shielded (GCr15) Chrome Steel Bearings 5pcs 1014889 $7.46
Uxcell FR144ZZ Flange Ball 1/8"x1/4"x7/64" Double Metal Double Shielded Bearings 10 Pcs 1014890 $9.18
Qty: 0 Item(s)
Total Price: $0.00

Description

Description

Note:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on Both or Single side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.


Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.



Specification:

Model: FR144ZZ

Shielded Type: Double Shielded

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 1/8"  (3.175mm)

Outer Diameter (D):  1/4"  (6.35mm)

Thickness (B): 7/64"  (2.779mm)

Flange Dia.: 19/64"  (7.518mm)

Flange Thickness: 0.79mm

Dynamic Load Rating (Cr): 54 N

Static Load Rating (Cor): 17 N

Accuracy Class: P0 (ABEC1)

Noise Level: Z2

Number of Pack: 5 Pcs
