Harfington Flange Ball Bearing Shielded Chrome Steel Bearings

Flange Ball Bearing Shielded Chrome Steel Bearings

ID:1146098
ID:1146098
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
6x12x4mm
Size
About this item

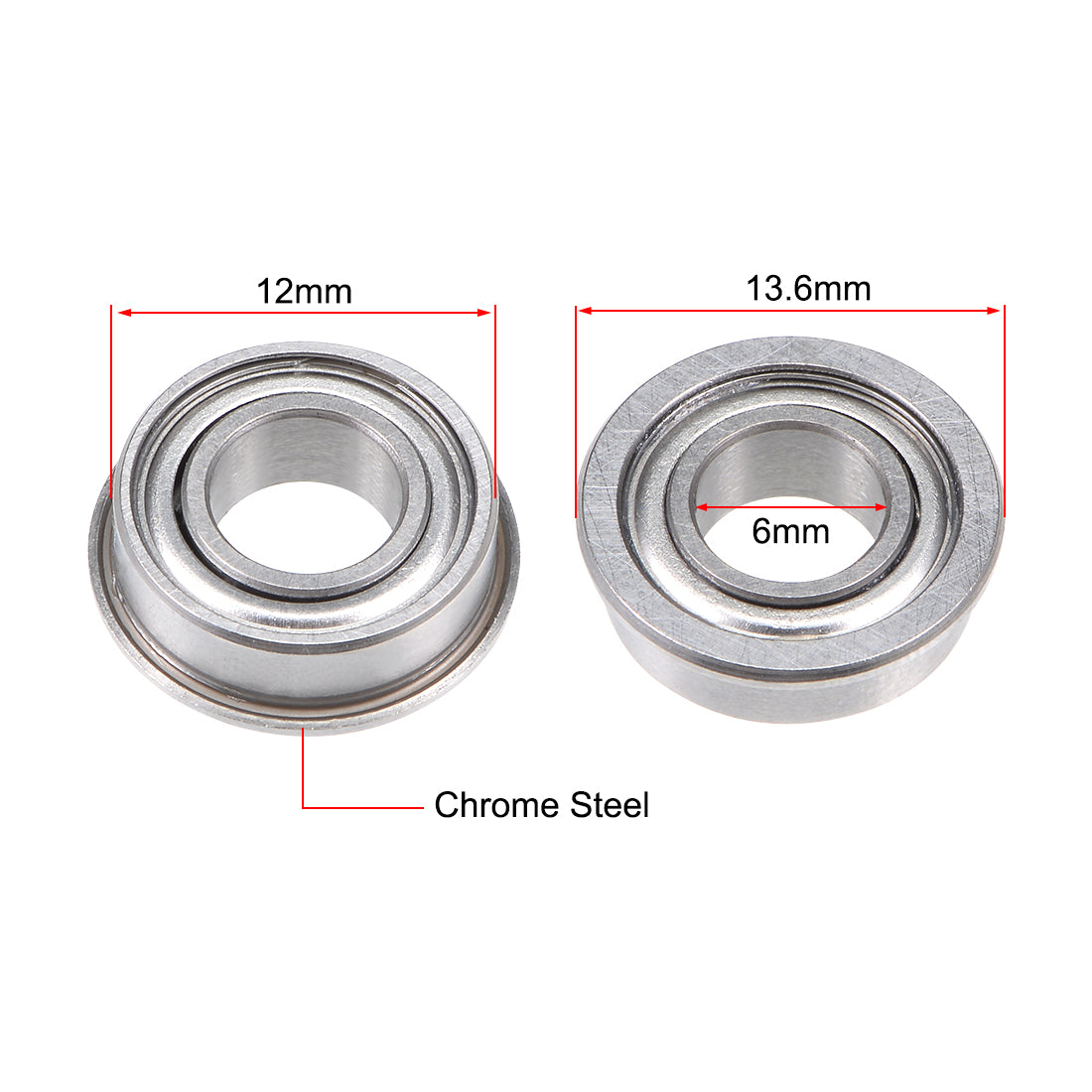

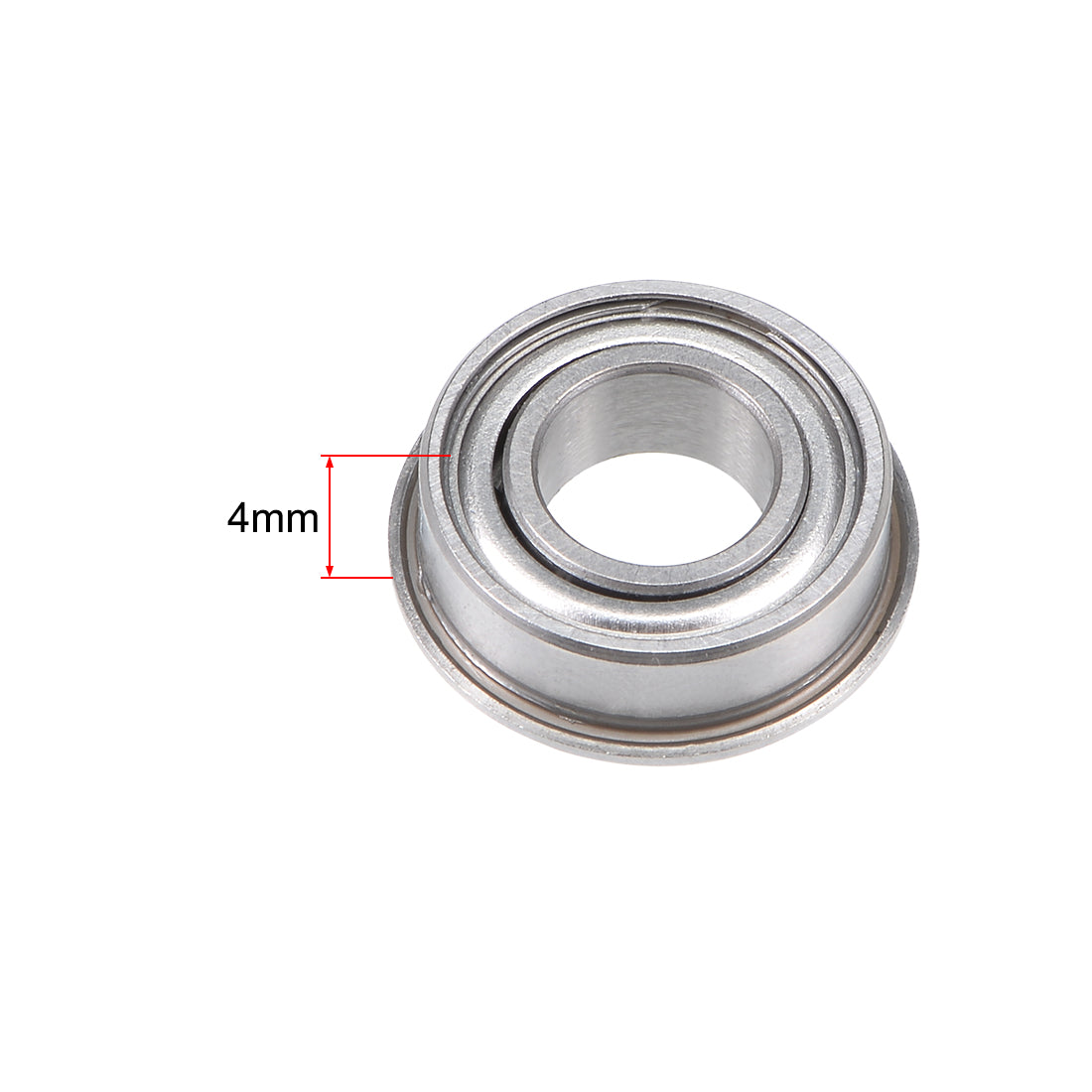

  • MF126ZZ (I.D.=6mm, O.D.=12mm, Thickness=4mm, Flange Dia.:13.6mmmm)
  • mf126zz bearings are shielded on BOTH SIDES to keep lubricant in
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
  • Static load rating of 295 newtons and dynamic load rating of 716 newtons
About this item
  • MF126ZZ (I.D.=6mm, O.D.=12mm, Thickness=4mm, Flange Dia.:13.6mmmm)
  • mf126zz bearings are shielded on BOTH SIDES to keep lubricant in
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
  • Static load rating of 295 newtons and dynamic load rating of 716 newtons
Specification

Specification

SKU
a19030500ux0614
Model
MF126ZZ
Shielded type
Double Shielded
Cage material
Stamping Steel
Inner diameter (d)
6mm
Outer diameter (d)
12mm
Thickness (b)
4mm
Flange dia
13.6mm
Flange thickness
0.8mm
Dynamic load rating (cr)
0.716kN
Static load rating (cor)
0.295kN
Accuracy class
P0 (ABEC-1)
Noise level
Z1
Number of pack
2 Pcs
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.





Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.





Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.





Specification:

Model: MF126ZZ

Shielded Type: Double Shielded

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 6mm

Outer Diameter (D): 12mm

Thickness (B): 4mm

Flange Dia.: 13.6mm

Flange Thickness: 0.8mm

Dynamic Load Rating (Cr): 0.716kN

Static Load Rating (Cor): 0.295kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 2 Pcs

$5.69 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • Low stock, 2 items left, dispatch in 24 hours.
Cart
Cart
Free Shipping over $30 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Description

Description

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.





Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.





Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.





Specification:

Model: MF126ZZ

Shielded Type: Double Shielded

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 6mm

Outer Diameter (D): 12mm

Thickness (B): 4mm

Flange Dia.: 13.6mm

Flange Thickness: 0.8mm

Dynamic Load Rating (Cr): 0.716kN

Static Load Rating (Cor): 0.295kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 2 Pcs
