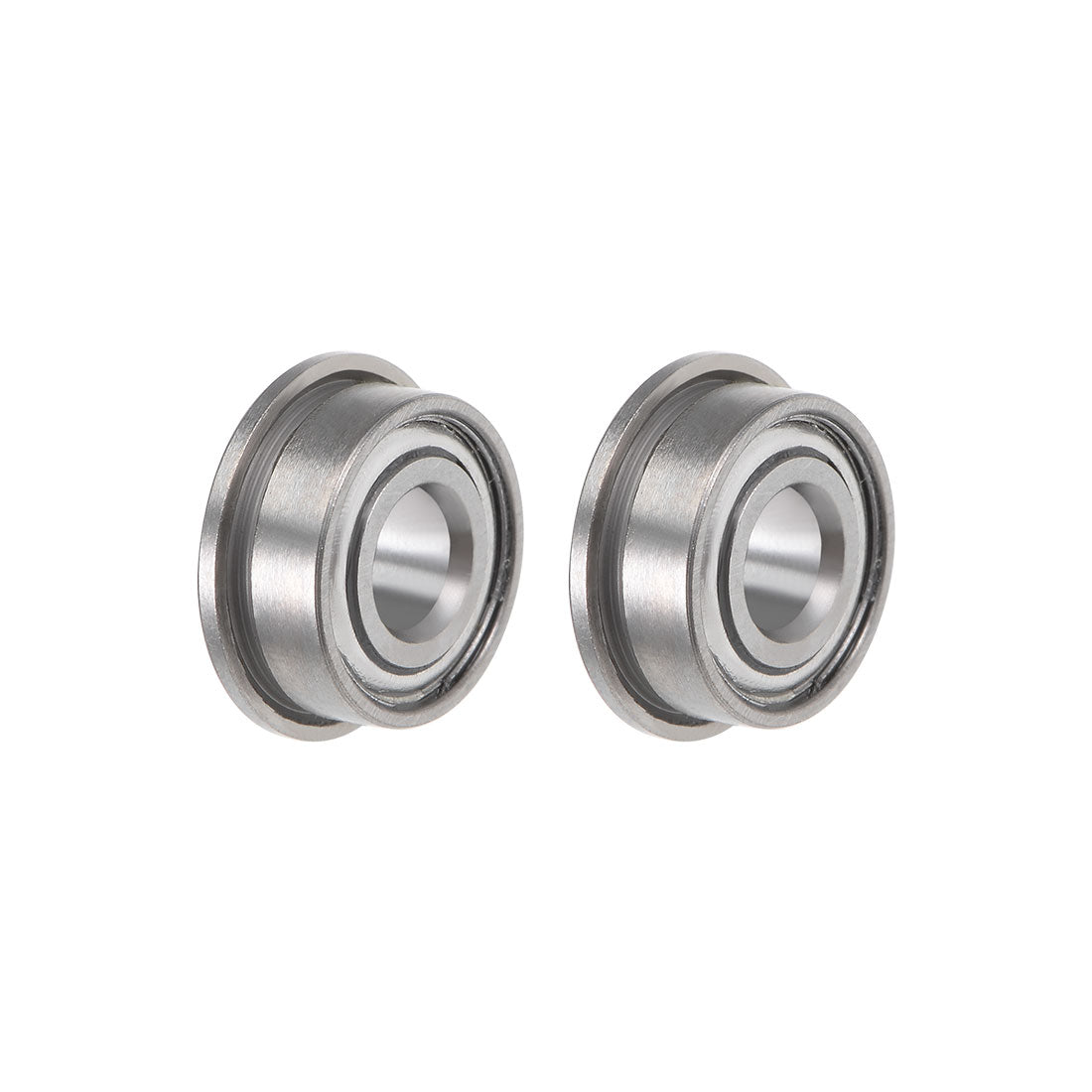

Harfington Uxcell Flanged Ball Bearing Double Shield Chrome Bearings

Uxcell Flanged Ball Bearing Double Shield Chrome Bearings

ID:1062914
ID:1062914
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
2pcs
Package Content
4x10x4mm
Size
About this item

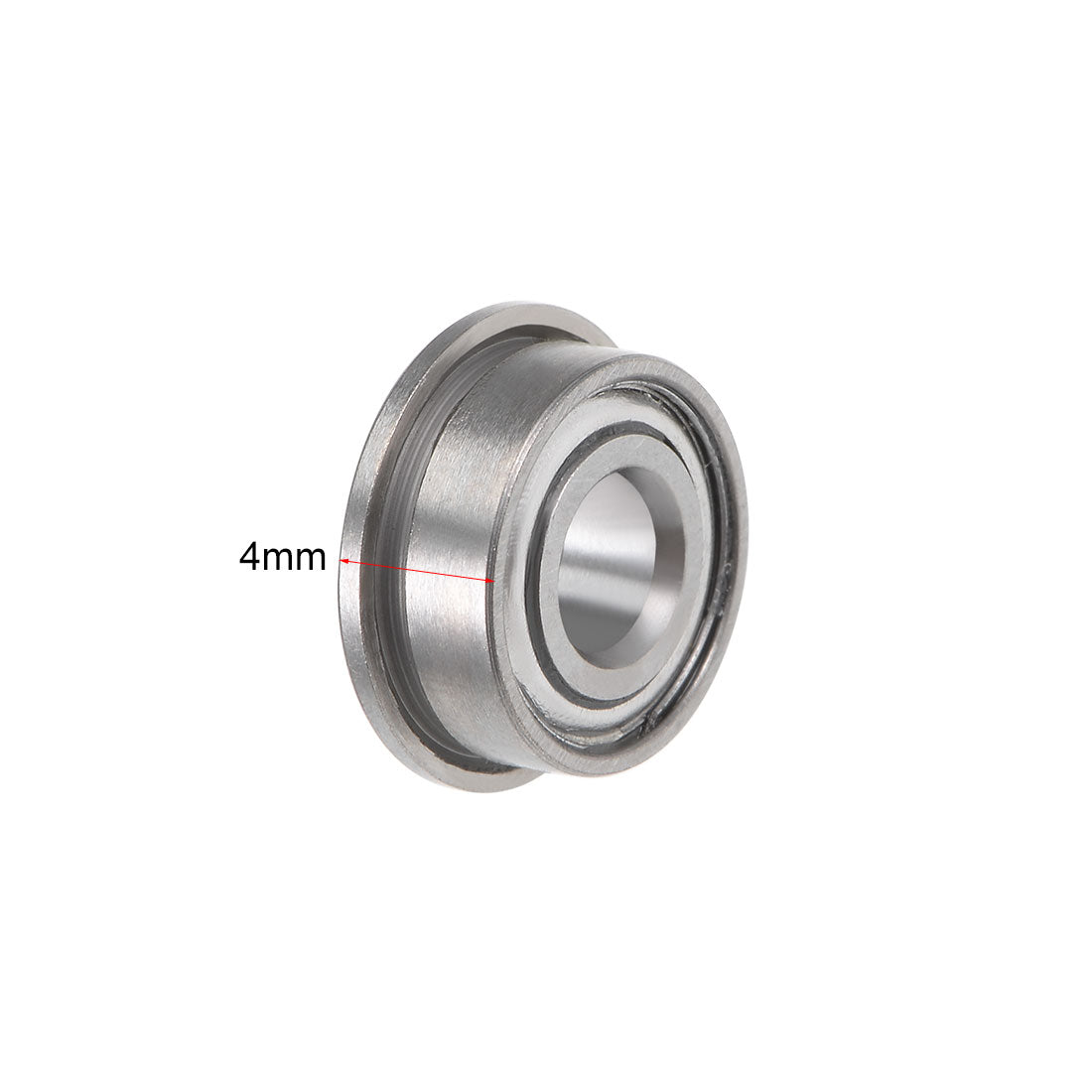

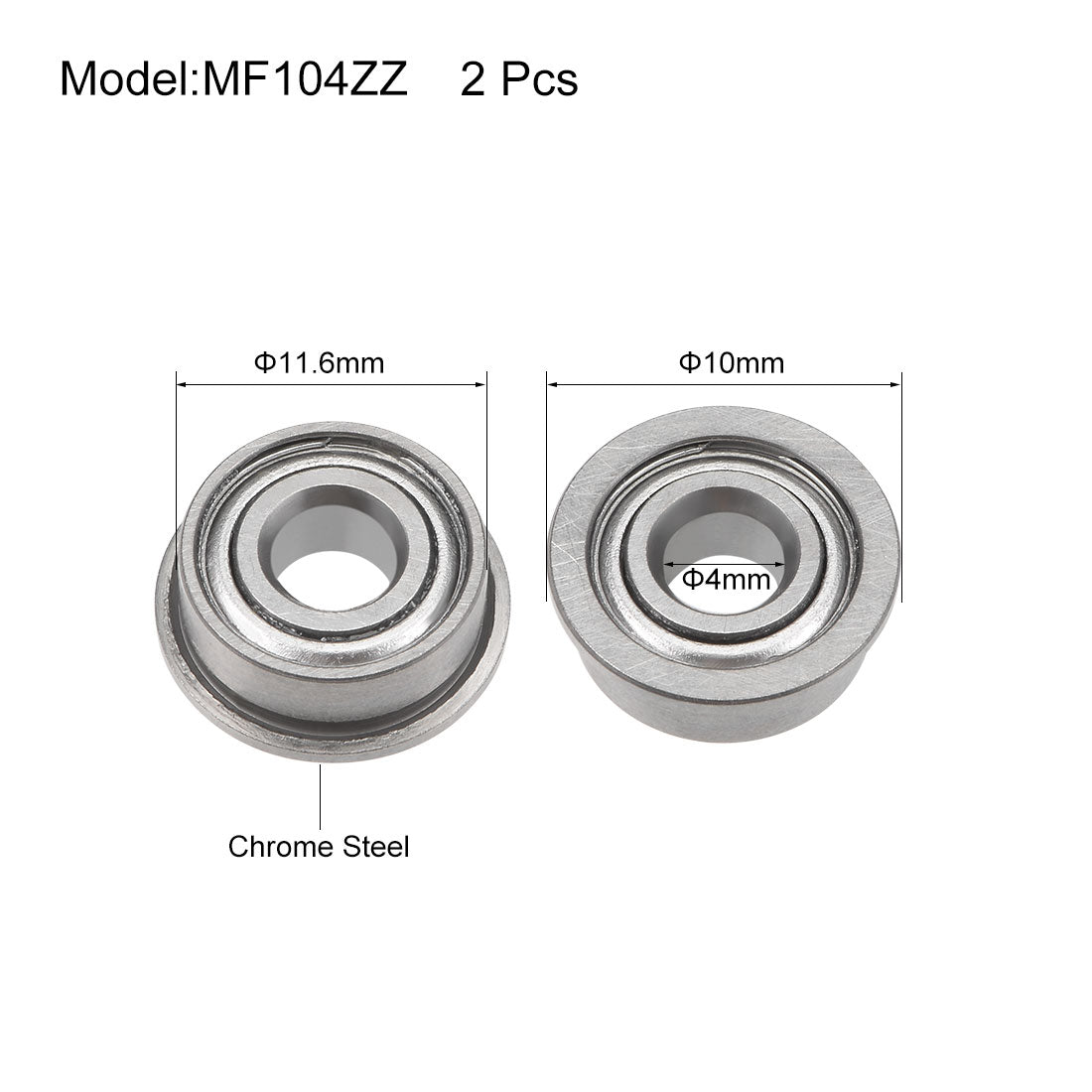

  • [Size] - MF104ZZ ABEC1 bearing (I.D.=4mm, O.D.=10mm, Thickness=4mm, Flange Dia: 11.6mm).
  • [Durable] - Chrome Steel (GCr15) races offer high hardness and great wear resistance, thus extend bearings' service life.
  • [Load & Speed] - Dynamic load rating of 604N and static load rating of 218N. The limiting speed is 48000 RPM under grease lubricating.
  • [Easy to Maintain] - Shields on Both sides to keep lubricant in. Z1 noise level for most general use.
  • [Application] - Commonly used for glider/rocker arms, wheels of the cart, lawnmowers, printers, pumps, motors, gearboxes, reducer, textile machinery, electronic equipment, and more.
About this item
  • [Size] - MF104ZZ ABEC1 bearing (I.D.=4mm, O.D.=10mm, Thickness=4mm, Flange Dia: 11.6mm).
  • [Durable] - Chrome Steel (GCr15) races offer high hardness and great wear resistance, thus extend bearings' service life.
  • [Load & Speed] - Dynamic load rating of 604N and static load rating of 218N. The limiting speed is 48000 RPM under grease lubricating.
  • [Easy to Maintain] - Shields on Both sides to keep lubricant in. Z1 noise level for most general use.
  • [Application] - Commonly used for glider/rocker arms, wheels of the cart, lawnmowers, printers, pumps, motors, gearboxes, reducer, textile machinery, electronic equipment, and more.
Specification

Specification

SKU
a19091100ux0571
Model
MF104ZZ
Shielded type
Double Shielded
Cage material
Stamping Steel
Inner diameter (d)
4mm
Outer diameter (d)
10mm
Thickness (b)
4mm
Flange dia
11.6mm
Flange thickness
0.8mm
Dynamic load rating (cr)
0.585kN
Static load rating (cor)
0.204kN
Accuracy class
P0 (ABEC1)
Noise level
Z1
Number of pack
2 Pcs
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Note:

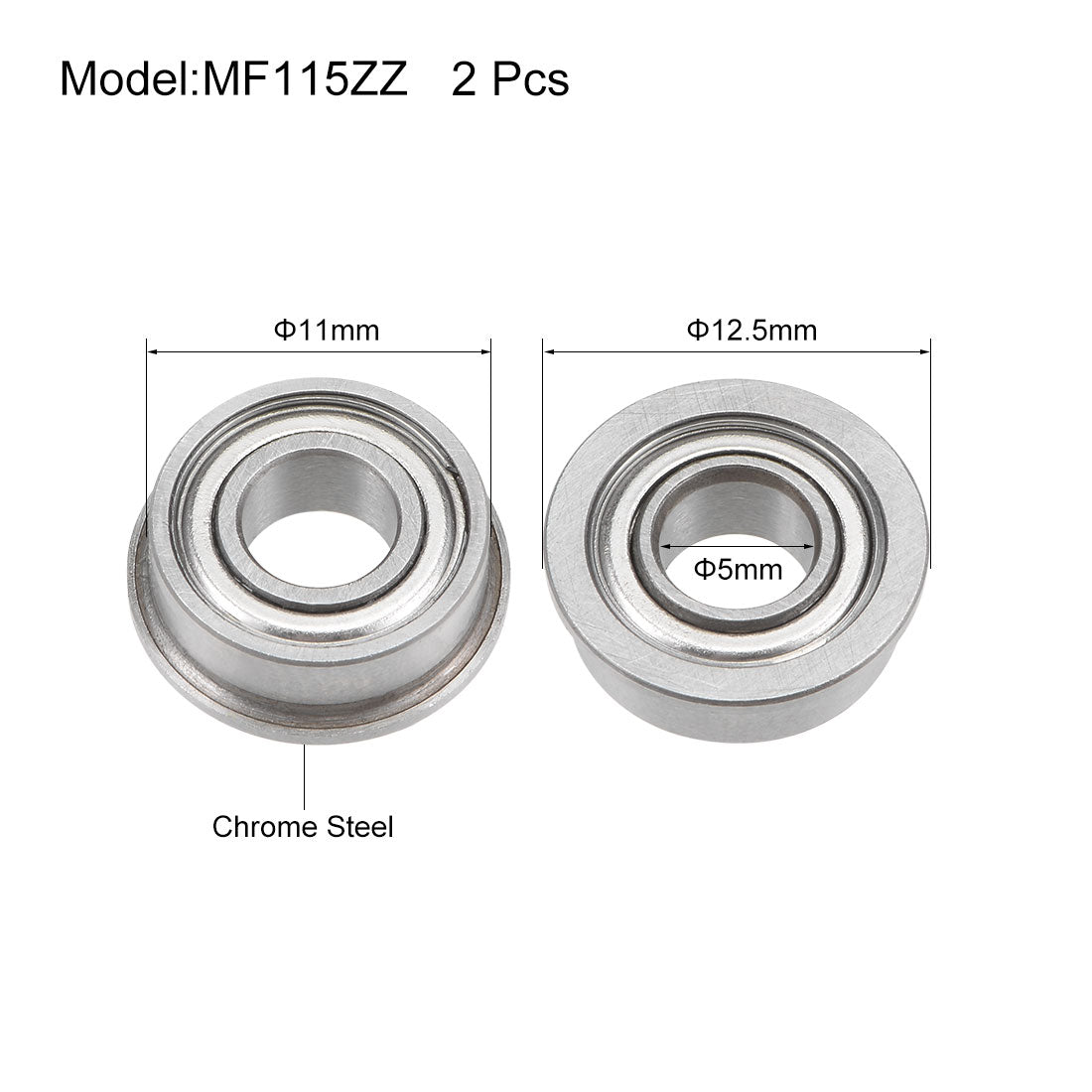

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on Both or Single side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:

Model: MF104ZZ

Shielded Type: Double Shielded

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 4mm

Outer Diameter (D): 10mm

Thickness (B): 4mm

Flange Dia.: 11.6mm

Flange Thickness: 0.8mm

Dynamic Load Rating (Cr): 0.585kN

Static Load Rating (Cor): 0.204kN

Accuracy Class: P0 (ABEC1)

Noise Level: Z1

Number of Pack: 2 Pcs

$5.69 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell MF104ZZ Flange Ball Bearing 4x10x4mm Shielded Chrome Bearings 2pcs 1062914 $5.69
Products Title ID Price Qty
Uxcell MF104ZZ Flange Ball Bearing 4x10x4mm Shielded Chrome Bearings 2pcs 1062914 $5.69
Uxcell MF104ZZ Flanged Bearing 4mmx10mmx4mm Double Shielded Deep Groove Bearings 10 Pcs 1048945 $8.13
Qty: 0 Item(s)
Total Price: $0.00

Description

Description

Note:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on Both or Single side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:

Model: MF104ZZ

Shielded Type: Double Shielded

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 4mm

Outer Diameter (D): 10mm

Thickness (B): 4mm

Flange Dia.: 11.6mm

Flange Thickness: 0.8mm

Dynamic Load Rating (Cr): 0.585kN

Static Load Rating (Cor): 0.204kN

Accuracy Class: P0 (ABEC1)

Noise Level: Z1

Number of Pack: 2 Pcs
