Harfington Uxcell Side Mounted Horizontal Liquid Float Switch 85mm w Protective Cover

Uxcell Side Mounted Horizontal Liquid Float Switch 85mm w Protective Cover

ID:
$7.03 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About this item
  • Max Contact: Rating 10W; Max Switching Voltage: 0-110V; Max Switching Current: 0.5A

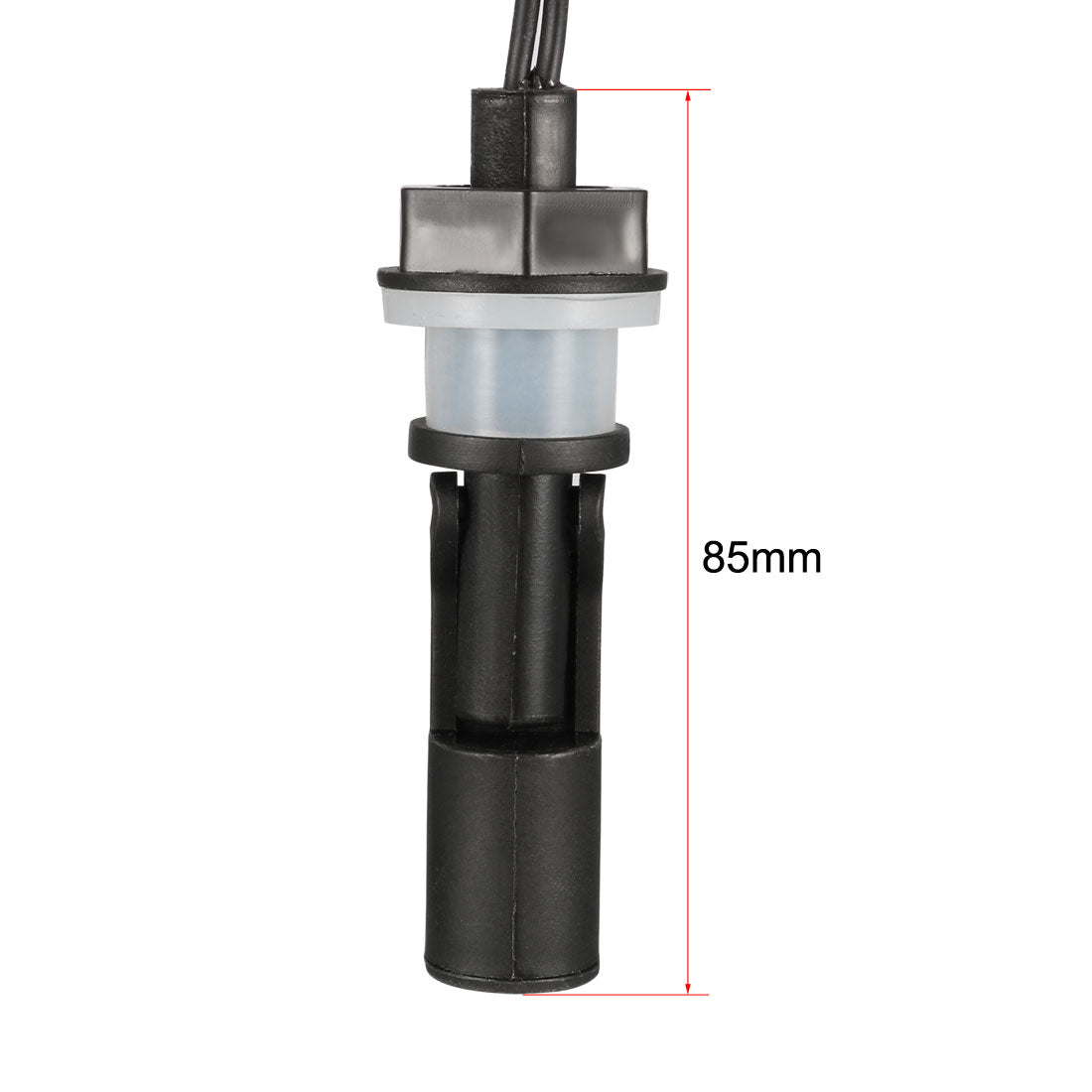

  • Total Length: 85mm/3.35inch; Cable Length: 350mm/13.78inch; Detailed Size: Pls see pictures
  • The plastic float switch of side mount duckbilled is a frequently opened, often closed, switching contact and with the overall brake, it's installed from the outside and doesn't need to be sealed
  • Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
  • Widely used in mechanical equipment, such as air conditioning, water cooling fan, water heater, water dispenser, dishwasher, hydraulic press, treatment equipment of water, air compressor and other mechanical equipment, etc...
  • In stock, ready to ship
Cart
Cart
About this item
  • Max Contact: Rating 10W; Max Switching Voltage: 0-110V; Max Switching Current: 0.5A
  • Total Length: 85mm/3.35inch; Cable Length: 350mm/13.78inch; Detailed Size: Pls see pictures
  • The plastic float switch of side mount duckbilled is a frequently opened, often closed, switching contact and with the overall brake, it's installed from the outside and doesn't need to be sealed
  • Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
  • Widely used in mechanical equipment, such as air conditioning, water cooling fan, water heater, water dispenser, dishwasher, hydraulic press, treatment equipment of water, air compressor and other mechanical equipment, etc...
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Specifications:

Product Name: Float Switch

Max Contact: Rating 10W

Max Switching Voltage: 0-110V

Max Switching Current: 0.5A

Max Breakdown Voltage: 220V DC

Max Carry Current: 1.0A

Max Contact Resistance: 100mohm

Temperature Rating: -20 ~ +60C

Material: PP

Total Length: 85mm/3.35inch

Cable Length: 350mm/13.78inch

Detailed Size: Pls see pictures

Net Weight: 26g



Package Content

1 x Float Switch





Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
{[item.title]} {[item.id]} {[handleCurrency(item.price*100)]}
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Specifications:

Product Name: Float Switch

Max Contact: Rating 10W

Max Switching Voltage: 0-110V

Max Switching Current: 0.5A

Max Breakdown Voltage: 220V DC

Max Carry Current: 1.0A

Max Contact Resistance: 100mohm

Temperature Rating: -20 ~ +60C

Material: PP

Total Length: 85mm/3.35inch

Cable Length: 350mm/13.78inch

Detailed Size: Pls see pictures

Net Weight: 26g



Package Content

1 x Float Switch





Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
