Harfington Uxcell 2pcs PP Float Switch M12 54mm Fish Tank Liquid Water Level Sensor Right Angle Plastic White

Uxcell 2pcs PP Float Switch M12 54mm Fish Tank Liquid Water Level Sensor Right Angle Plastic White

ID:
$8.32 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About this item
  • Float Ball Size(Approx): 10 x 24mm(L*D) ; Thread Dia(Approx): M12; Body Total Length: 54mm ; Cable Length: 37cm
  • Max Switching Voltage/Current: 110V DC/0.5A
  • HOW TO WORK - By using a magnet to sense the reed switch. Float switch is mainly composed of a magnetic spring switch and a float. There are magnetic materials in the float. When the float moves up and down with the water level, it will touch the magnetic spring switch to detect the liquid position
  • WIDELY APPLICATION - Float switch can be used for water heating equipment such as water dispenser, water heater, humidifier, etc. It also can be used for water tower, drainage pool, water tank, culture pond, etc
  • PLEASE NOTE - Because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay or contactor are not included here.
  • In stock, ready to ship
Cart
Cart
About this item
  • Float Ball Size(Approx): 10 x 24mm(L*D) ; Thread Dia(Approx): M12; Body Total Length: 54mm ; Cable Length: 37cm
  • Max Switching Voltage/Current: 110V DC/0.5A
  • HOW TO WORK - By using a magnet to sense the reed switch. Float switch is mainly composed of a magnetic spring switch and a float. There are magnetic materials in the float. When the float moves up and down with the water level, it will touch the magnetic spring switch to detect the liquid position
  • WIDELY APPLICATION - Float switch can be used for water heating equipment such as water dispenser, water heater, humidifier, etc. It also can be used for water tower, drainage pool, water tank, culture pond, etc
  • PLEASE NOTE - Because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay or contactor are not included here.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:
Specifications:Product Name: Float Switch
Max Contact: Rating 10W
Max Switching Voltage: 110V DC
Max Switching Current: 0.5A
Max Breakdown Voltage: 220V DC
Max Carry Current: 1.0A
Max Contact Resistance: 100mohm
Temperature Rating: -10 ~ +60 C / 85 C
Float Ball Material: PP
Float Body Material: PP
Float Ball Size(Approx): 10 x 24mm(L*D)
Thread Dia(Approx): M12
Body Total Length: 54mm
Cable Length: 37cm
Color: White;Yellow
Net Weight: 26g

Package Content

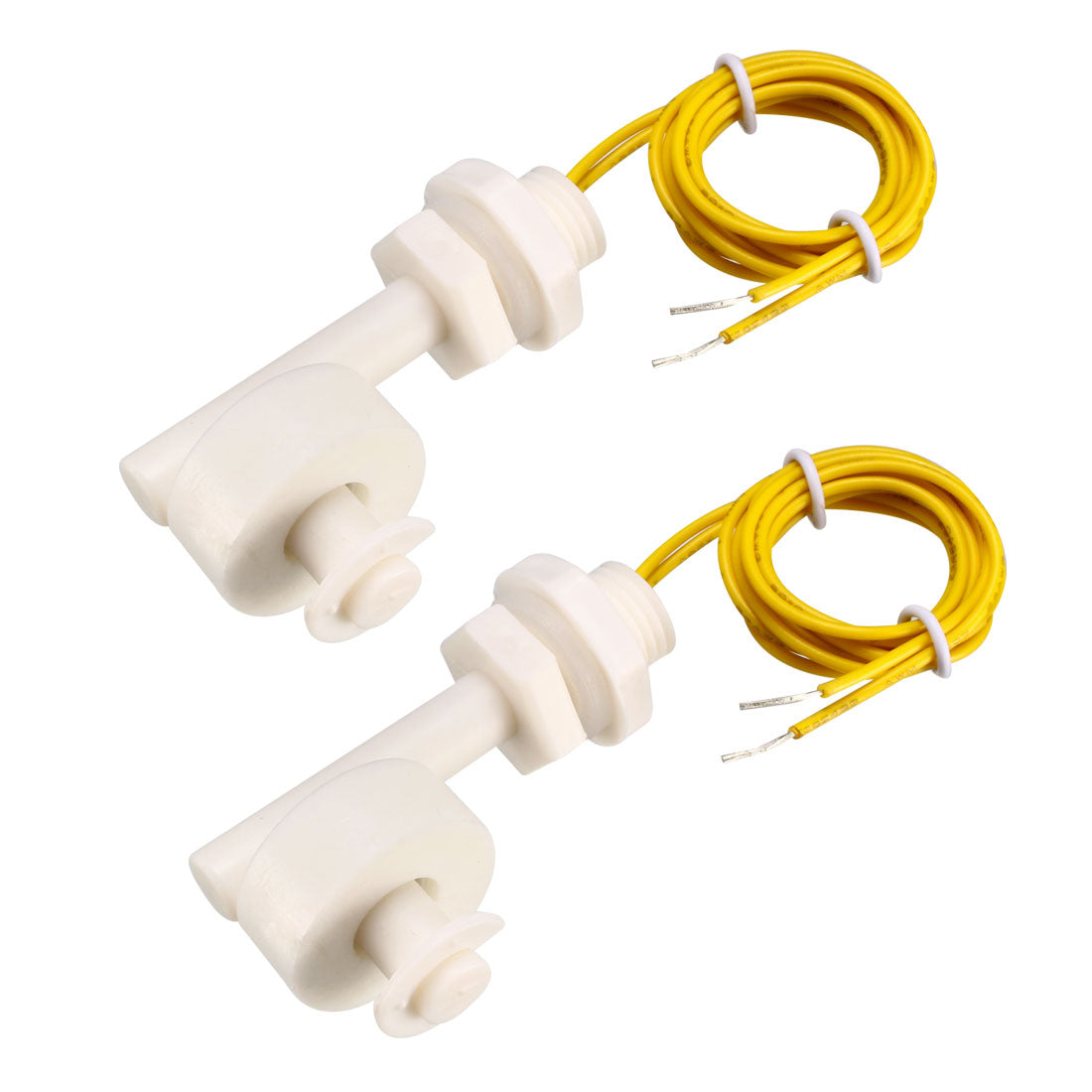

2pcs x Float Switch


Description:A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.

Note:
because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.

 Feature:This float switch is a simple structure,easy installation liquid level controller.It does not have a complex circuit, as long as the material selection,liquid,pressure or temperature can be used in any environment.
Light weight and simple working principle,high reliability.
The versatility of this vertically mounted sensor means that it can be installed either at the top or base of your tank,depending on whether you wish to detect the water is rise or fall.
The float level switch is widely used in electronic,electrical,chemical,water treatment,drainage of life level control and alarm.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
{[item.title]} {[item.id]} {[handleCurrency(item.price*100)]}
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Specifications:Product Name: Float Switch
Max Contact: Rating 10W
Max Switching Voltage: 110V DC
Max Switching Current: 0.5A
Max Breakdown Voltage: 220V DC
Max Carry Current: 1.0A
Max Contact Resistance: 100mohm
Temperature Rating: -10 ~ +60 C / 85 C
Float Ball Material: PP
Float Body Material: PP
Float Ball Size(Approx): 10 x 24mm(L*D)
Thread Dia(Approx): M12
Body Total Length: 54mm
Cable Length: 37cm
Color: White;Yellow
Net Weight: 26g

Package Content

2pcs x Float Switch


Description:A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.

Note:
because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.

 Feature:This float switch is a simple structure,easy installation liquid level controller.It does not have a complex circuit, as long as the material selection,liquid,pressure or temperature can be used in any environment.
Light weight and simple working principle,high reliability.
The versatility of this vertically mounted sensor means that it can be installed either at the top or base of your tank,depending on whether you wish to detect the water is rise or fall.
The float level switch is widely used in electronic,electrical,chemical,water treatment,drainage of life level control and alarm.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
