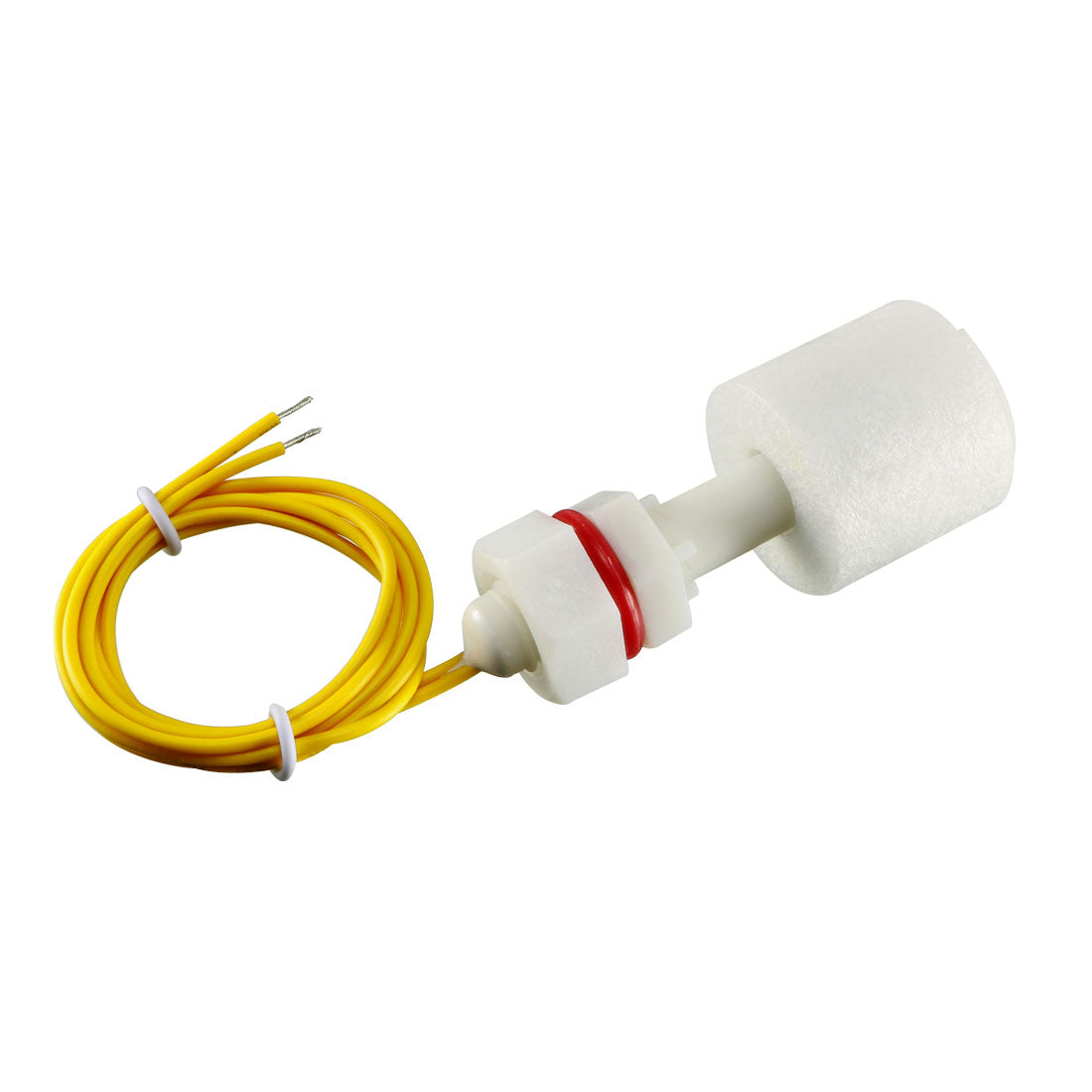

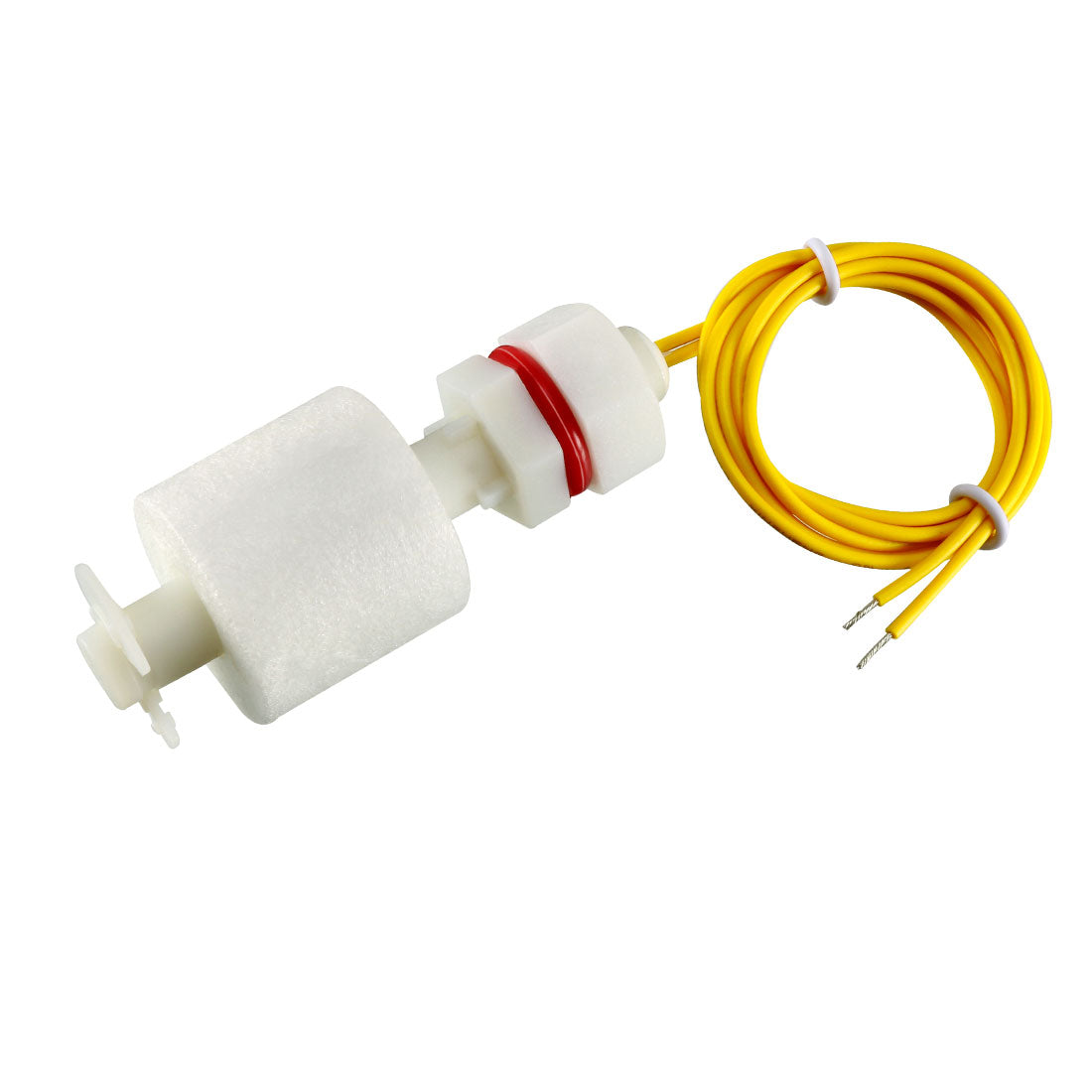

Harfington Uxcell 5pcs ZP4510 Liquid Water Level Sensor Vertical Float Switches

Uxcell 5pcs ZP4510 Liquid Water Level Sensor Vertical Float Switches

ID:
$10.47 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About this item
  • Product Name : Water Level Sensor;Model No. : ZP4510;Max Contact Rating : Max Contact Rating;10W : 10W
  • Max Switching Voltage : 100V DC/AC;Max Switching Current : 0.5A;Max Breakdown Voltage : 220V DC/AC;Max Carry Current : 1A
  • Max Contact Resistance : 100m ohm;Temperature Rating : -10 / +85 degree;Float Ball Material : P.P;Float Body Material : P.P
  • Thread Dia(Approx) : 9.5mm / 0.374";Switch Body Size : 23.3 x 57.7mm / 0.9" x 2.27"(Max D*H);Cable Length : 36cm / 14.2"
  • Color : White;Net Weight : 70g;Package Content : 5 x Water Level Sensor
  • In stock, ready to ship
Cart
Cart
About this item
  • Product Name : Water Level Sensor;Model No. : ZP4510;Max Contact Rating : Max Contact Rating;10W : 10W
  • Max Switching Voltage : 100V DC/AC;Max Switching Current : 0.5A;Max Breakdown Voltage : 220V DC/AC;Max Carry Current : 1A
  • Max Contact Resistance : 100m ohm;Temperature Rating : -10 / +85 degree;Float Ball Material : P.P;Float Body Material : P.P
  • Thread Dia(Approx) : 9.5mm / 0.374";Switch Body Size : 23.3 x 57.7mm / 0.9" x 2.27"(Max D*H);Cable Length : 36cm / 14.2"
  • Color : White;Net Weight : 70g;Package Content : 5 x Water Level Sensor
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Specifications:

Product Name: Float Switch

Max Contact: Rating 10W

Max Switching Voltage: 100V DC

Max Switching Current: 0.5A

Max Breakdown Voltage: 220V DC

Max Carry Current: 1.0A

Max Contact Resistance: 100mohm

Temperature Rating: -10 ~ +60 C / 85 C

Float Ball Material: PP

Body Material: PP

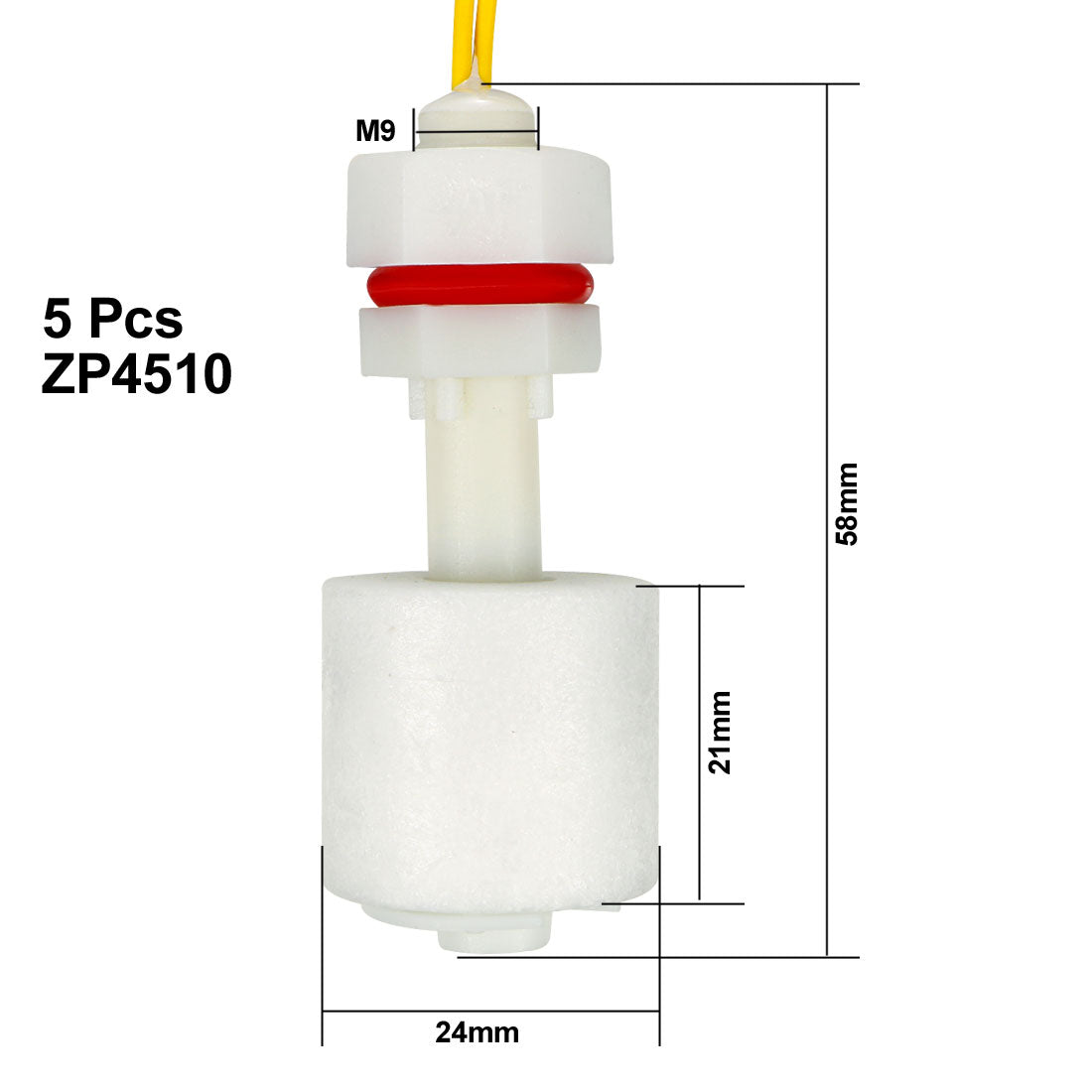

Float Ball Size(Approx): 22 x 24mm(L*D)

Thread Dia(Approx): M9mm

Body Total Length: 58mm

Cable Length: 37cm

Color: White

Net Weight: 8g

 Package Content

5 x Float Switch

Description:

1.A float switch is a device used to sense the level of liquid within a tank.

2.The switch may actuate a pump, an indicator, an alarm, or other device.

3.It can be easily converted from normally open to normally close by inverting the float.

4.Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.

 Feature:

1.This float switch is a simple structure,easy installation liquid level controller.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
{[item.title]} {[item.id]} {[handleCurrency(item.price*100)]}
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Specifications:

Product Name: Float Switch

Max Contact: Rating 10W

Max Switching Voltage: 100V DC

Max Switching Current: 0.5A

Max Breakdown Voltage: 220V DC

Max Carry Current: 1.0A

Max Contact Resistance: 100mohm

Temperature Rating: -10 ~ +60 C / 85 C

Float Ball Material: PP

Body Material: PP

Float Ball Size(Approx): 22 x 24mm(L*D)

Thread Dia(Approx): M9mm

Body Total Length: 58mm

Cable Length: 37cm

Color: White

Net Weight: 8g

 Package Content

5 x Float Switch

Description:

1.A float switch is a device used to sense the level of liquid within a tank.

2.The switch may actuate a pump, an indicator, an alarm, or other device.

3.It can be easily converted from normally open to normally close by inverting the float.

4.Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.

 Feature:

1.This float switch is a simple structure,easy installation liquid level controller.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
