Harfington Uxcell 3PCS KW4-3Z-3 Micro Limit Switch SPDT NO NC 3 Terminals Momentary Hinge Roller Lever Green

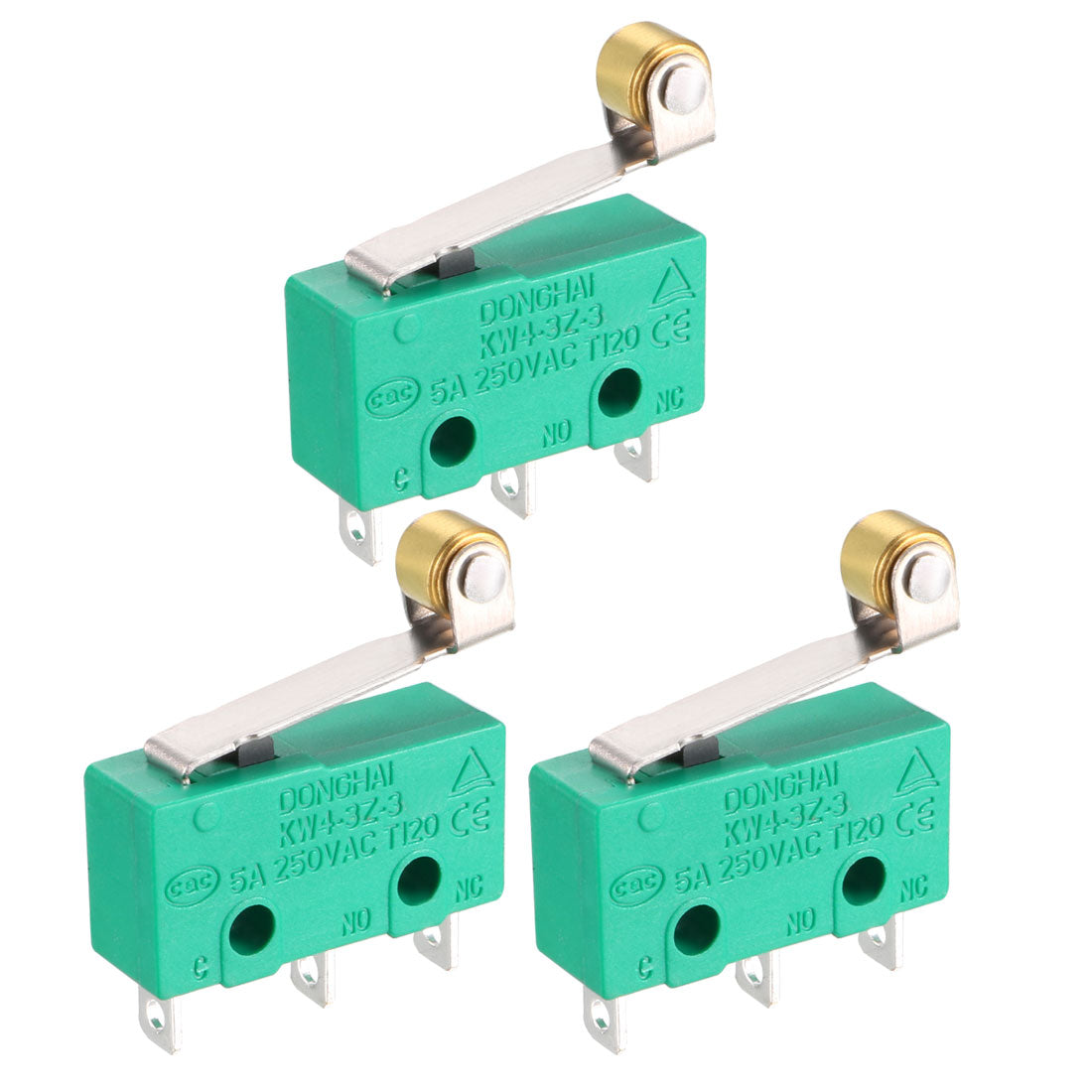

Uxcell 3PCS KW4-3Z-3 Micro Limit Switch SPDT NO NC 3 Terminals Momentary Hinge Roller Lever Green

ID:1068145
ID:1068145
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Rating Load: 5A/250VAC. And the contact type is SPDT NO+NC
  • 3 pins, applicable to AC DC control circuits.Reliable for years
  • High precision design, use easily.Designed to control the movement of a mechanical part.
  • IP 40 Protection Degree. Which means this switch is available to tools & small wires (>1mm)
  • Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...
About this item
  • Rating Load: 5A/250VAC. And the contact type is SPDT NO+NC
  • 3 pins, applicable to AC DC control circuits.Reliable for years
  • High precision design, use easily.Designed to control the movement of a mechanical part.
  • IP 40 Protection Degree. Which means this switch is available to tools & small wires (>1mm)
  • Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...
Specification

Specification

SKU
a18113000ux0412
Number Of Terminals
3.0
Rated Working Voltage
250 V
Rated Working Current
5 A
Contact Type 1
SPDT
Contact Type 2
1NO+1NC
Outer Color
Green
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Features

Adopt thermosetting plastic or thermoplastic;

Offers long service and operations life.

Small contact gap, snap sction, high sensitivity and small operatng travel

Widly used in appliance, elctronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool etc...



Specification

Rating Load: 5A/250VAC;

Operation speed: 0.1mm-1m/s

Contact resistance: 15m Ohm max. (initial)

Insulation resistance: 100m Ohm min. (at DC500V)

Life: 100,000 operations min. full load (Electrical); 10,000,000 operations min.(Mechanical)

Operating temperature: -25~+80°C

Contact Form: SPDT NO+NC

Pin number: 3

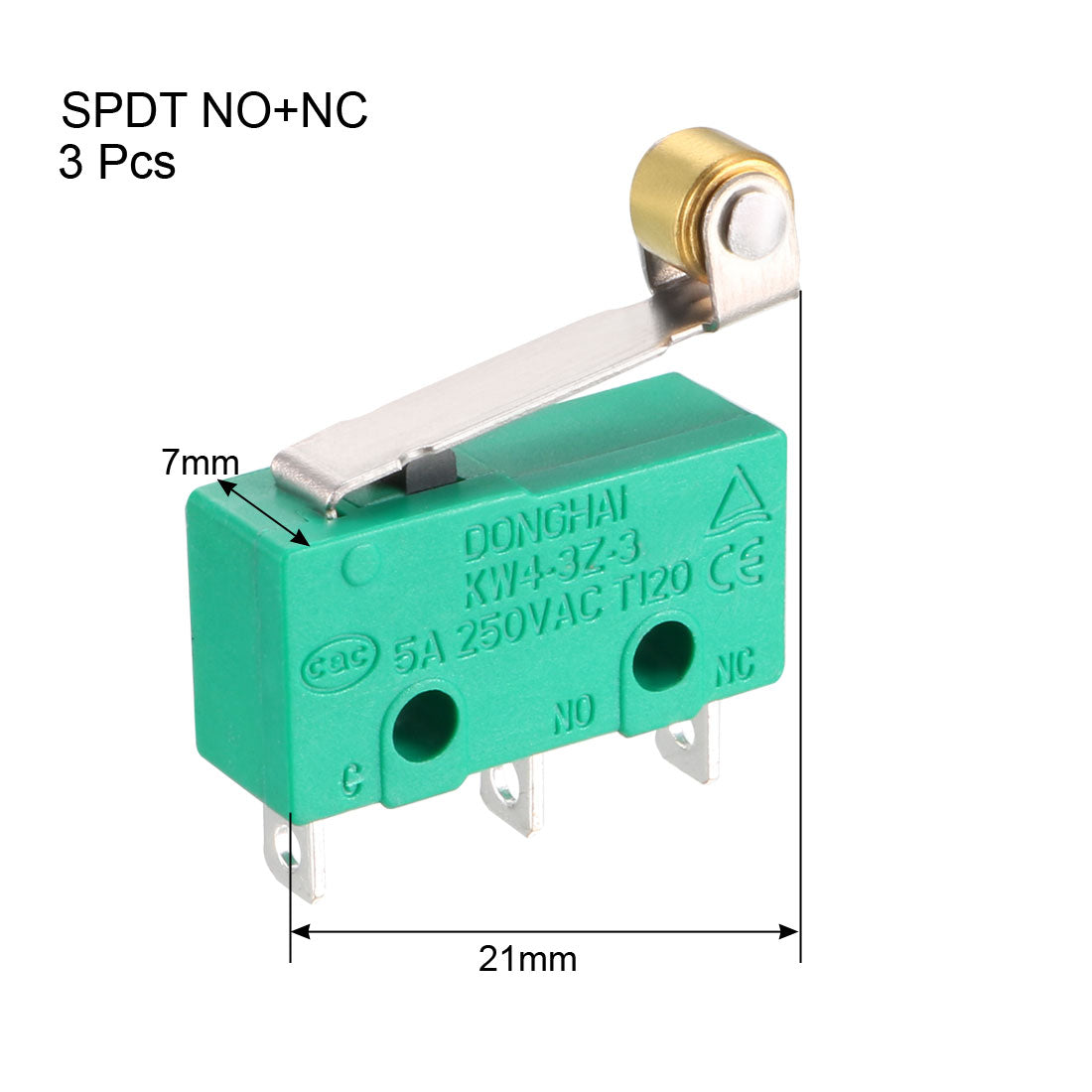

Overall size: 23x21x7mm/0.91x0.83x0.28inch(L*W*H)

Total weight: 8g



Package Content

3 x Microswitch



$6.12 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell 3PCS KW4-3Z-3 Micro Limit Switch SPDT NO NC 3 Terminals Momentary Hinge Roller Lever Green 1068145 $6.12
Products Title ID Price Qty
Uxcell 3PCS KW4-3Z-3 Micro Limit Switch SPDT NO NC 3 Terminals Momentary Hinge Roller Lever Green 1068145 $6.12
Uxcell 15PCS KW4-3Z-3 Micro Limit Switch SPDT NO NC 3 Terminals Momentary Hinge Roller Lever Green 1173101 $9.97
Uxcell 2PCS KW4-3Z-3 Micro Limit Switch SPDT NO NC 3 Terminals Momentary Hinge Roller Lever Green 1002797 $5.69
Qty: 0 Item(s)
Total Price: $0.00

Description

Description

Features

Adopt thermosetting plastic or thermoplastic;

Offers long service and operations life.

Small contact gap, snap sction, high sensitivity and small operatng travel

Widly used in appliance, elctronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool etc...



Specification

Rating Load: 5A/250VAC;

Operation speed: 0.1mm-1m/s

Contact resistance: 15m Ohm max. (initial)

Insulation resistance: 100m Ohm min. (at DC500V)

Life: 100,000 operations min. full load (Electrical); 10,000,000 operations min.(Mechanical)

Operating temperature: -25~+80°C

Contact Form: SPDT NO+NC

Pin number: 3

Overall size: 23x21x7mm/0.91x0.83x0.28inch(L*W*H)

Total weight: 8g



Package Content

3 x Microswitch
