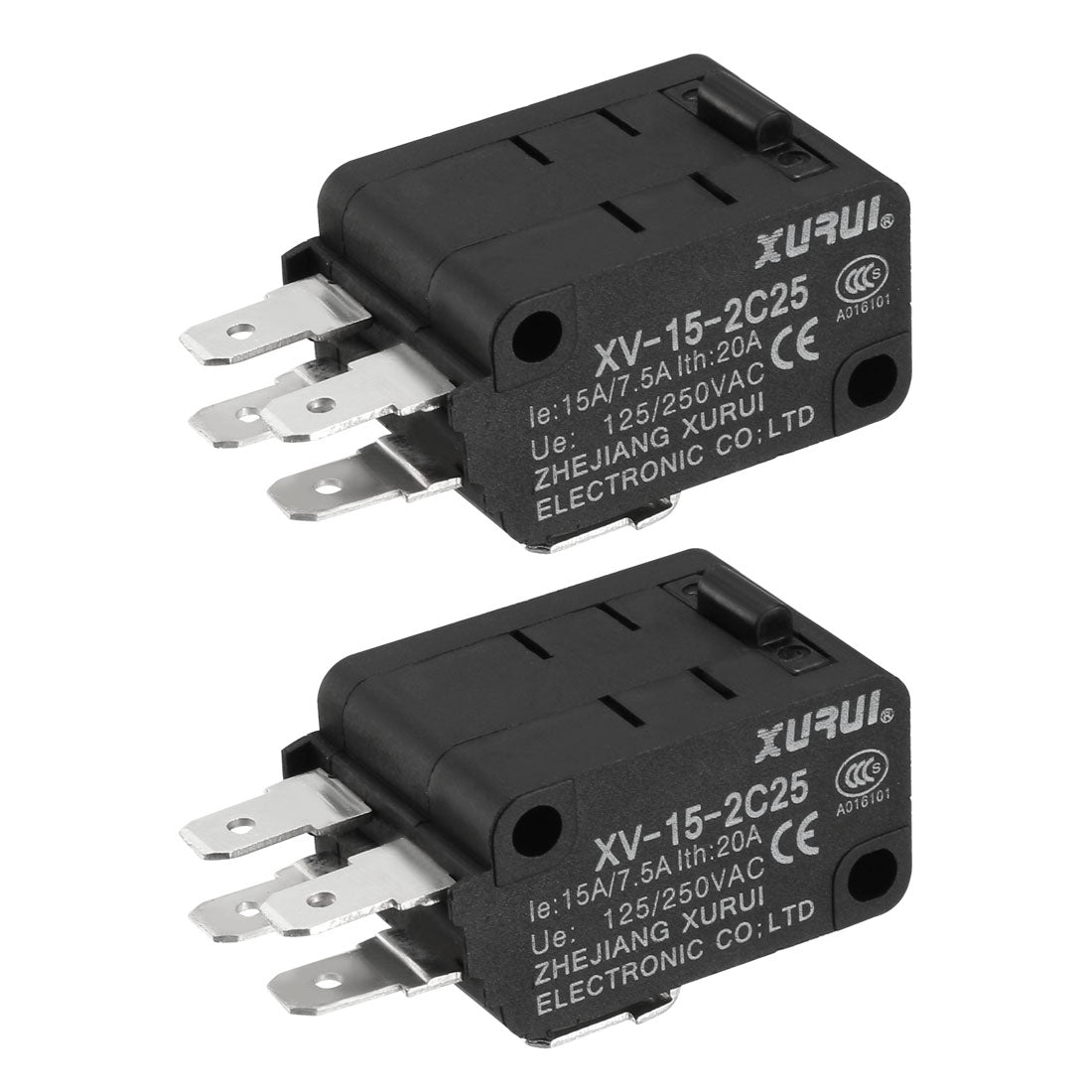

Harfington Uxcell 2pcs XV-15-2C25 6 Terminals Push Button Type Micro Switches

Uxcell 2pcs XV-15-2C25 6 Terminals Push Button Type Micro Switches

ID:1154022
ID:1154022
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Rating: Ue: AC125/250V, Ie: 15A/7.5A, Ith: 20A;
  • OF max. 400g RF min. 80g PT max. 1.2mm OT min. 0.6mm MD max. 0.5mm OP 14.7+/-0.4mm

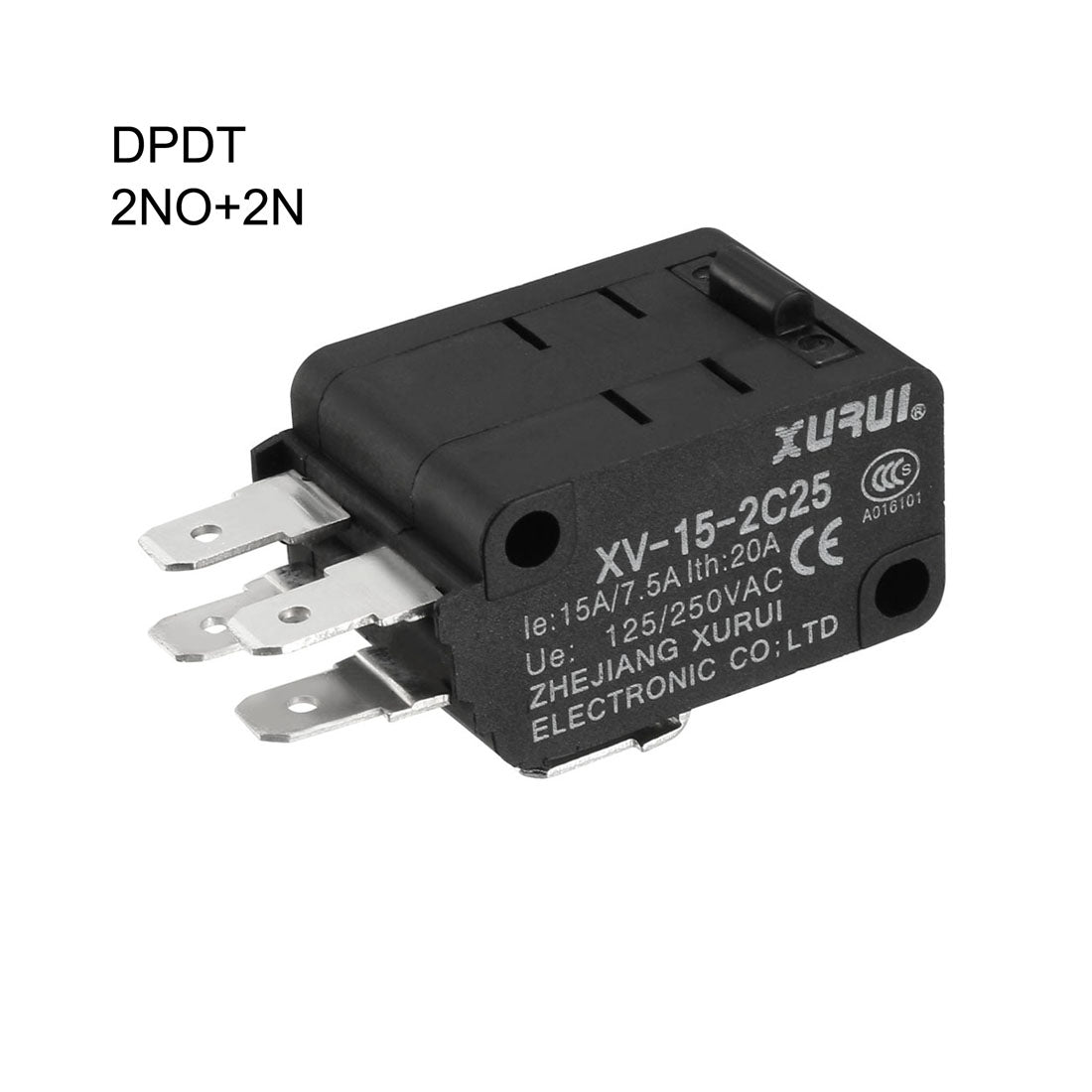

  • Contact Form: DPDT 2NO+2NC
  • Operation speed: 0.1mm-1m/s
  • Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...
About this item
  • Rating: Ue: AC125/250V, Ie: 15A/7.5A, Ith: 20A;
  • OF max. 400g RF min. 80g PT max. 1.2mm OT min. 0.6mm MD max. 0.5mm OP 14.7+/-0.4mm
  • Contact Form: DPDT 2NO+2NC
  • Operation speed: 0.1mm-1m/s
  • Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Widely used in appliance, electronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool , etc.



Specification

Rating: Ue: AC125/250V, Ie: 15A/7.5A, Ith: 20A;

OF max.   400g

PT max.   1.2mm

OT min. 0.6mm

Movement Differential max.   0.5mm

Contact Form: DPDT 2NO+2NC

Pin number: 6

Operation speed: 0.1mm-1m/s

Insulation resistance: 100m Ohm Above DC500V

Contact resistance: 25m Ohm initial value

Life: 100000 times above(Electrical); 1000000 times above(Mechanical)

Protection degree: IP40

Operating temperature: -25~+80°C

Certification: UL/CE/

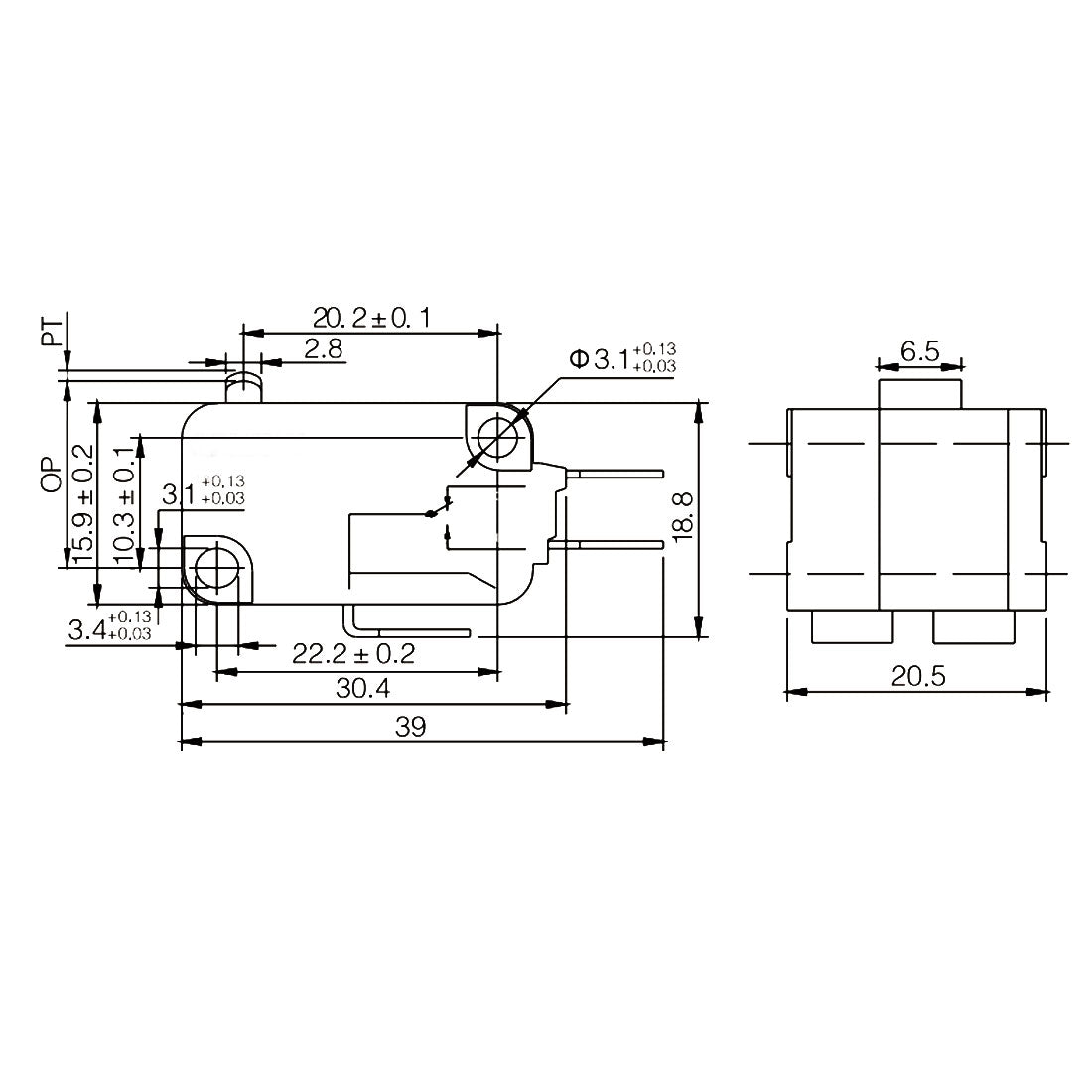

Overall size: 39x20x20mm/1.54x0.79x0.79inch(L*W*H)

Total weight: 26g



Package Content

2 x Micro Switch

$7.98 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Description

Description

Widely used in appliance, electronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool , etc.



Specification

Rating: Ue: AC125/250V, Ie: 15A/7.5A, Ith: 20A;

OF max.   400g

PT max.   1.2mm

OT min. 0.6mm

Movement Differential max.   0.5mm

Contact Form: DPDT 2NO+2NC

Pin number: 6

Operation speed: 0.1mm-1m/s

Insulation resistance: 100m Ohm Above DC500V

Contact resistance: 25m Ohm initial value

Life: 100000 times above(Electrical); 1000000 times above(Mechanical)

Protection degree: IP40

Operating temperature: -25~+80°C

Certification: UL/CE/

Overall size: 39x20x20mm/1.54x0.79x0.79inch(L*W*H)

Total weight: 26g



Package Content

2 x Micro Switch
