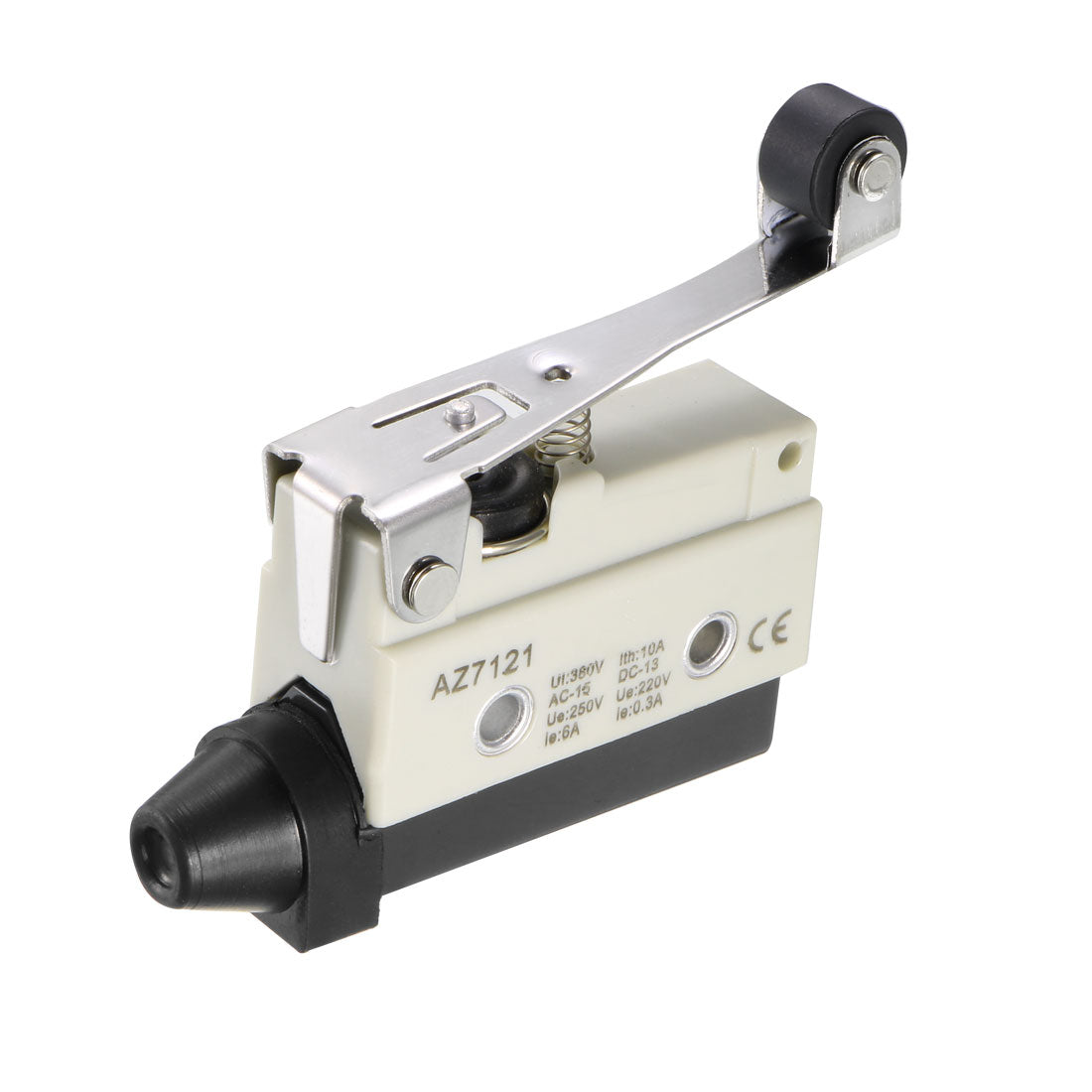

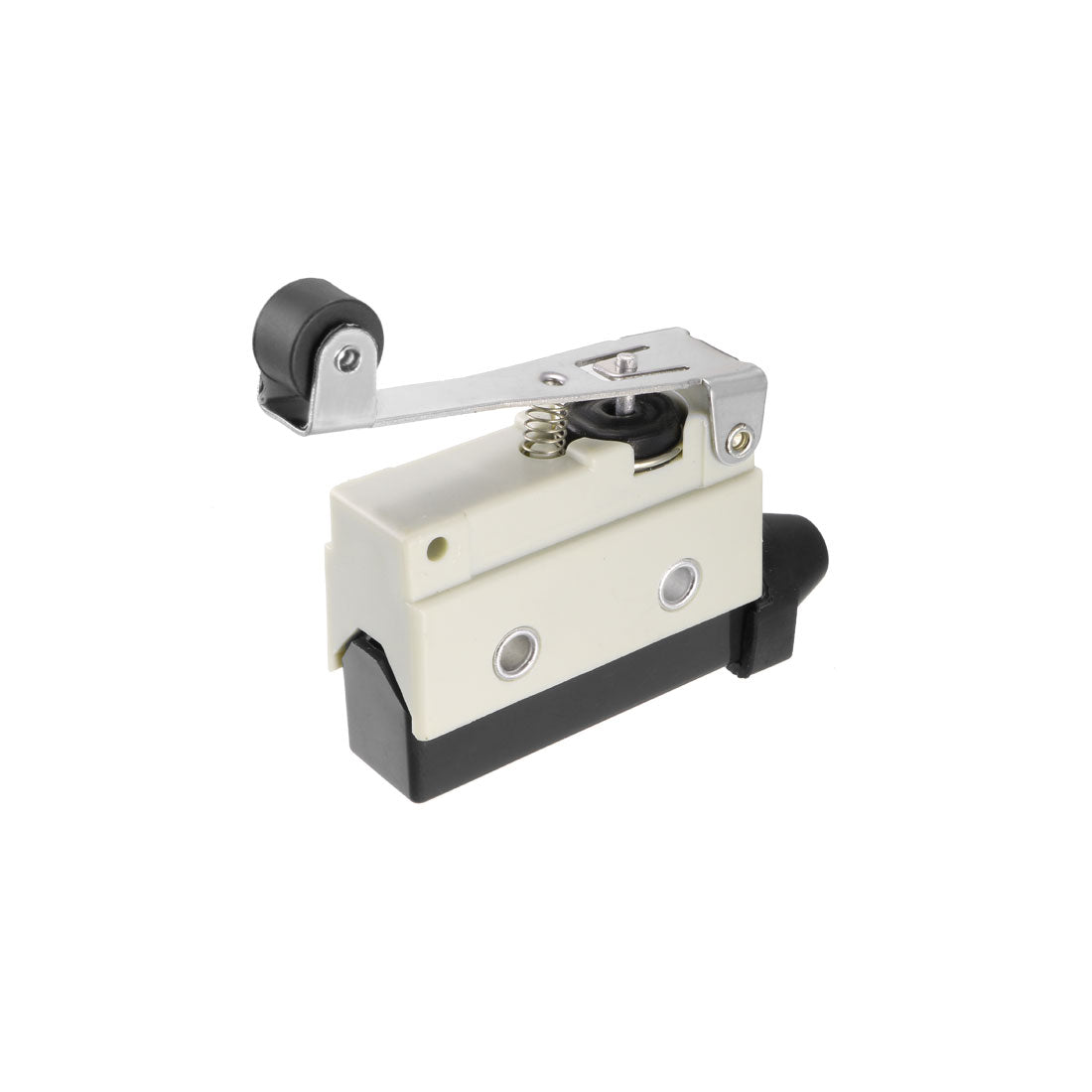

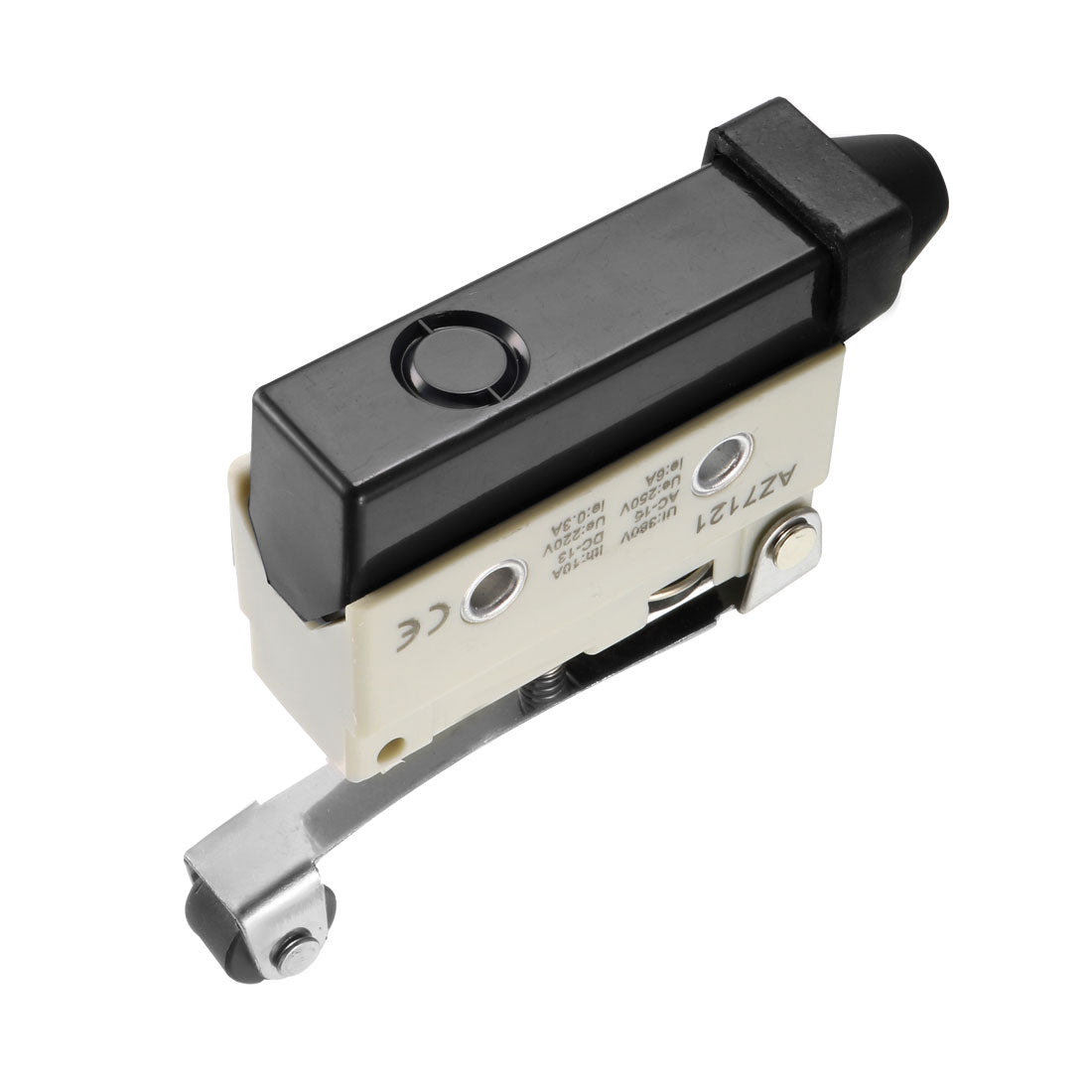

Harfington Uxcell 2PCS AZ-7121 SPDT 1NO+1NC  Panel Mount Roller Plunger Type Micro Switches

Uxcell 2PCS AZ-7121 SPDT 1NO+1NC Panel Mount Roller Plunger Type Micro Switches

ID:1068157
ID:1068157
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Rating: Ui: 380V Ith:10A. And the contact type is SPDT NO+NC
  • Applicable to AC DC control circuits.Reliable for years
  • High precision design, use easily.Designed to control the movement of a mechanical part.
  • IP 40 Protection Degree. Which means this switch is available to tools & small wires (>1mm)
  • Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...
About this item
  • Rating: Ui: 380V Ith:10A. And the contact type is SPDT NO+NC
  • Applicable to AC DC control circuits.Reliable for years
  • High precision design, use easily.Designed to control the movement of a mechanical part.
  • IP 40 Protection Degree. Which means this switch is available to tools & small wires (>1mm)
  • Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...
Specification

Specification

SKU
a18113000ux0370
Number Of Terminals
3.0
Rated Working Voltage
220/250/380 V
Rated Working Current
0.3/6/10 A
Contact Type 1
SPDT
Contact Type 2
1NO+1NC
Outer Color
Gray,Black
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Features:

Excellent accessibility, stable performance, practical and convenient

Multi-place use of gasket design

This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and equipment.

Also can be used in circuits, control circuit and auxiliary circuit for terminal limit protection.



Specification

Product Name: Micro Switch;

Model No.: AZ-7121;

OF max.: 180g

RF min.: 50g

PT max.: 11.0mm

OT min.: 3.0mm

MD max.: 2.4mm

OP: 40+/-1mm

Contact Form: SPDT NO+NC

Termination Style: Screw Terminal;

Terminal Number: 3

Rating: Ui: 380V Ith:10A; AC-15 Ue: 250V Ie: 6A; DC-13 Ue: 220V Ie: 0.3A;

Protection degree: IP62

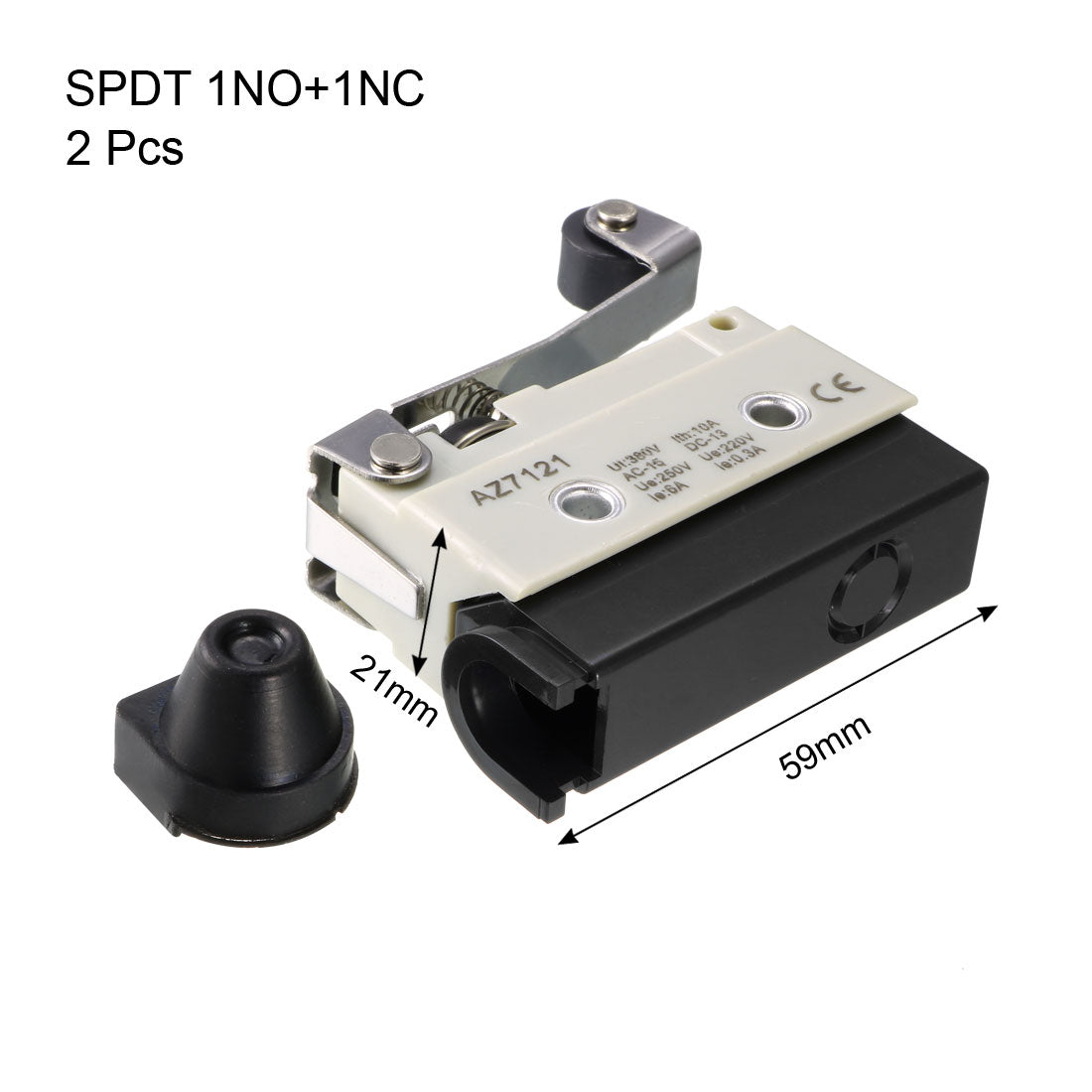

Overall Size: 67x59x21mm/2.64x2.32x0.83inch(L*W*H)

Fixing Holes Dia.: 4mm/0.16inch;

Net Weight : 99g;



Package Content

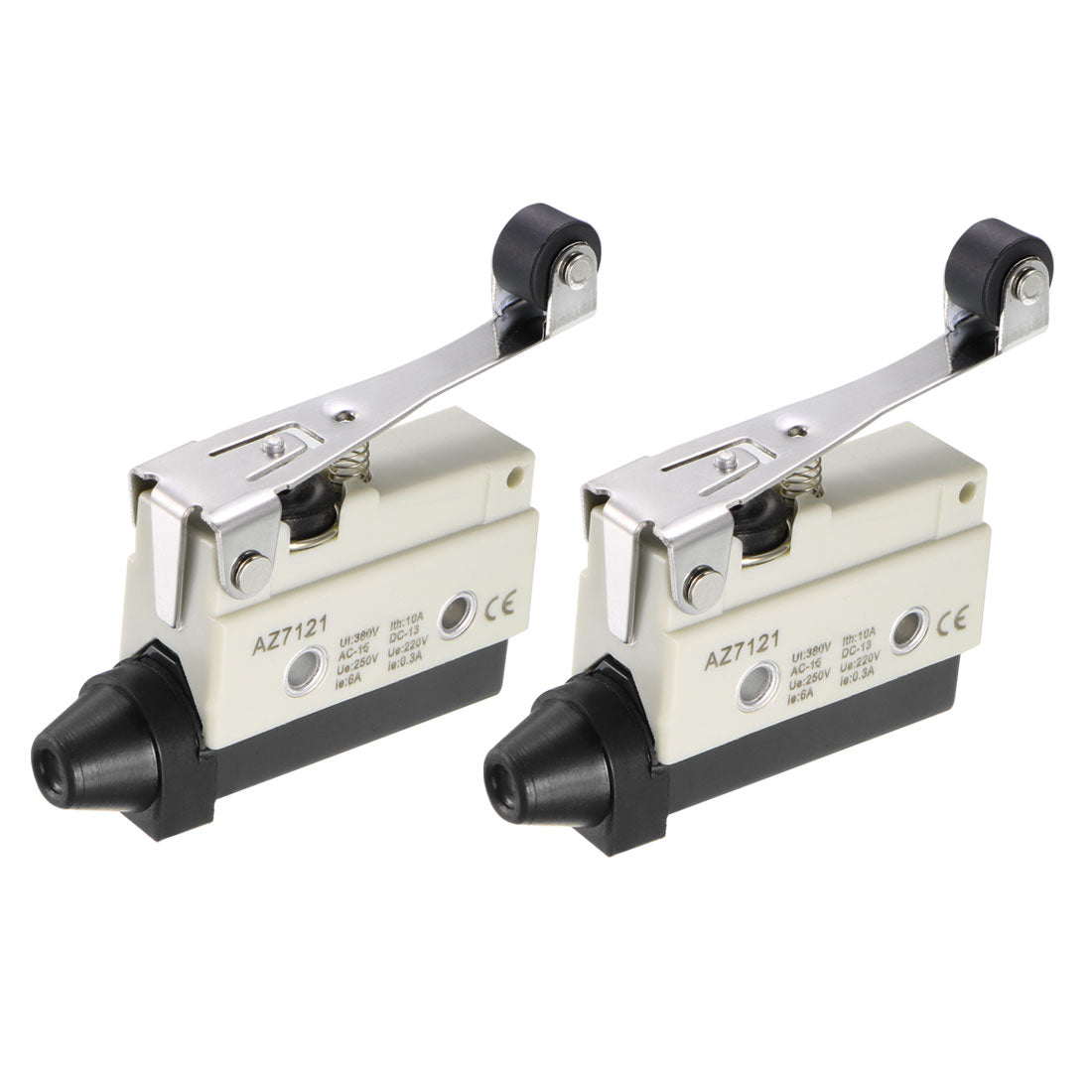

2 x Microswitch



$7.99 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • Low stock, 2 items left, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell 2PCS AZ-7121 SPDT 1NO+1NC Panel Mount Roller Plunger Type Micro Switches 1068157 $7.99
Products Title ID Price Qty
Uxcell 2PCS AZ-7121 SPDT 1NO+1NC Panel Mount Roller Plunger Type Micro Switches 1068157 $7.99
Uxcell AZ-7121 SPDT 1NO+1NC Panel Mount Roller Plunger Type Micro Switch 1068156 $6.58
Qty: 0 Item(s)
Total Price: $0.00

Description

Description

Features:

Excellent accessibility, stable performance, practical and convenient

Multi-place use of gasket design

This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and equipment.

Also can be used in circuits, control circuit and auxiliary circuit for terminal limit protection.



Specification

Product Name: Micro Switch;

Model No.: AZ-7121;

OF max.: 180g

RF min.: 50g

PT max.: 11.0mm

OT min.: 3.0mm

MD max.: 2.4mm

OP: 40+/-1mm

Contact Form: SPDT NO+NC

Termination Style: Screw Terminal;

Terminal Number: 3

Rating: Ui: 380V Ith:10A; AC-15 Ue: 250V Ie: 6A; DC-13 Ue: 220V Ie: 0.3A;

Protection degree: IP62

Overall Size: 67x59x21mm/2.64x2.32x0.83inch(L*W*H)

Fixing Holes Dia.: 4mm/0.16inch;

Net Weight : 99g;



Package Content

2 x Microswitch
