Harfington Uxcell 2PCS XV-152-1C25 Black Straight Lever Micro Limit Switch

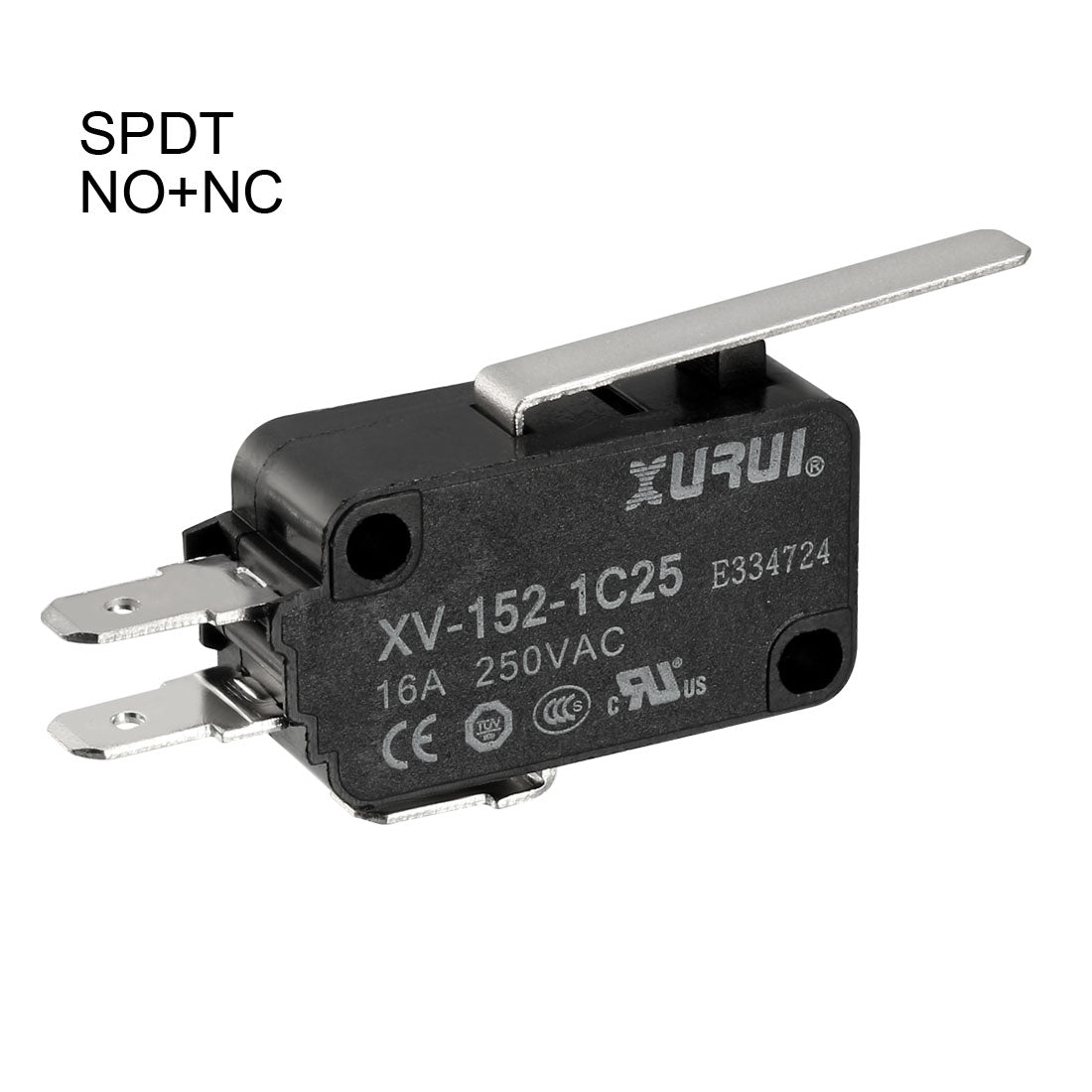

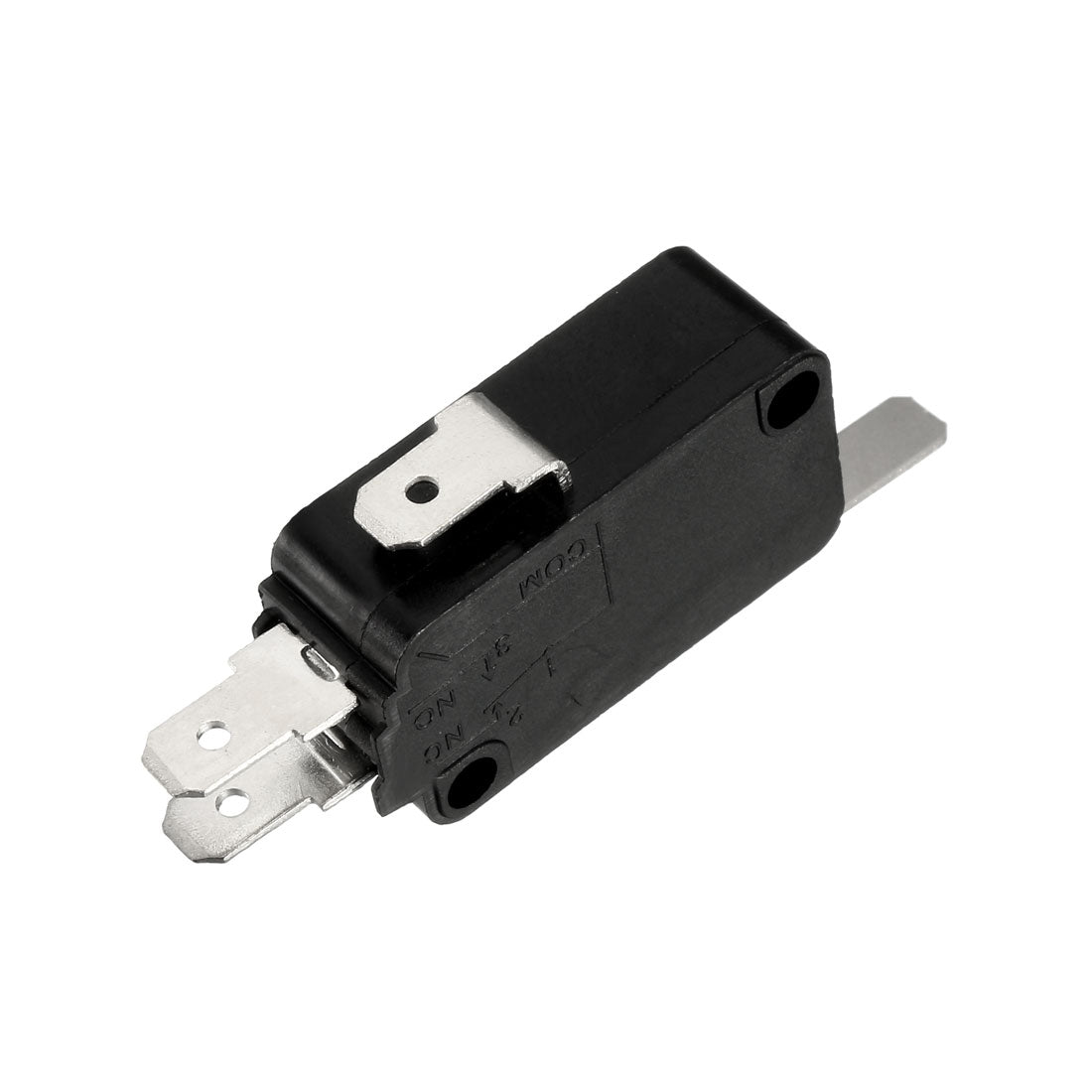

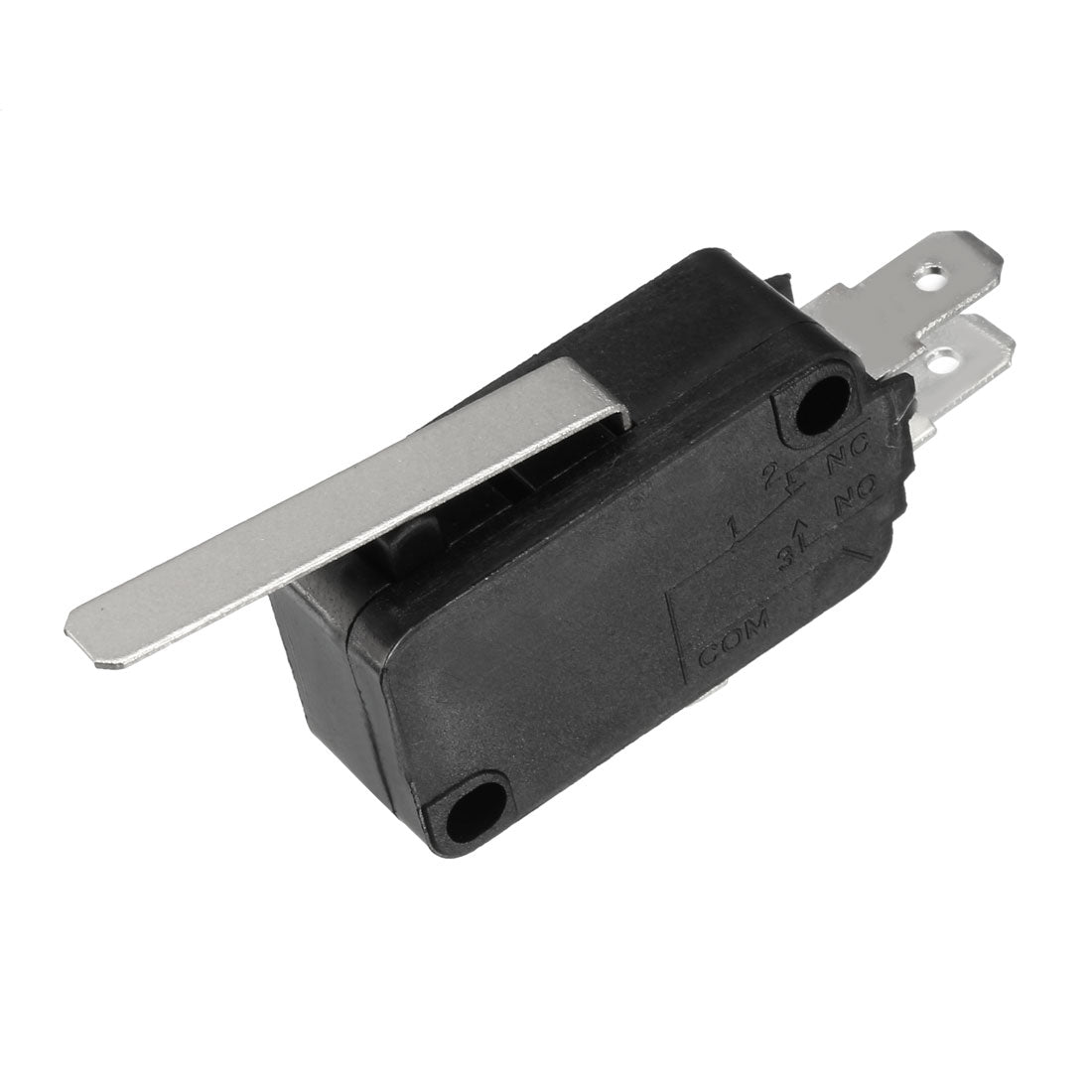

Uxcell 2PCS XV-152-1C25 Black Straight Lever Micro Limit Switch

ID:1109205
ID:1109205
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Rating: 16A 250VAC
  • OF max. 125g RF min. 14g PT max. 2.8mm OT min. 1.0mm MD max. 0.8mm OP 15.2+/-1.2mm
  • Contact Form: SPDT NO+NC
  • Operation speed: 0.1mm-1m/s
  • Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...
About this item
  • Rating: 16A 250VAC
  • OF max. 125g RF min. 14g PT max. 2.8mm OT min. 1.0mm MD max. 0.8mm OP 15.2+/-1.2mm
  • Contact Form: SPDT NO+NC
  • Operation speed: 0.1mm-1m/s
  • Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...
Specification

Specification

SKU
a18092600ux0065
Number Of Terminals
3.0
Rated Working Voltage
250 V
Rated Working Current
16 A
Contact Type 1
SPDT
Contact Type 2
1NO+1NC
Outer Color
Black
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Widely used in appliance, electronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool , etc.



Specification

Rating: 16A 250VAC

OF max.   125g

Force min.   14g

PT max.   2.8mm

OT min. 1.0mm

Movement Differential max.   0.8mm

OP   15.2+/-1.2mm

Contact Form: SPDT NO+NC

Pin number: 3

Operation speed: 0.1mm-1m/s

Insulation resistance: 100m Ohm Above DC500V

Contact resistance: 25m Ohm initial value

Life: 100000 times above(Electrical); 1000000 times above(Mechanical)

Protection degree: IP40

Operating temperature: -25~+80°C

Certification: UL/CE/

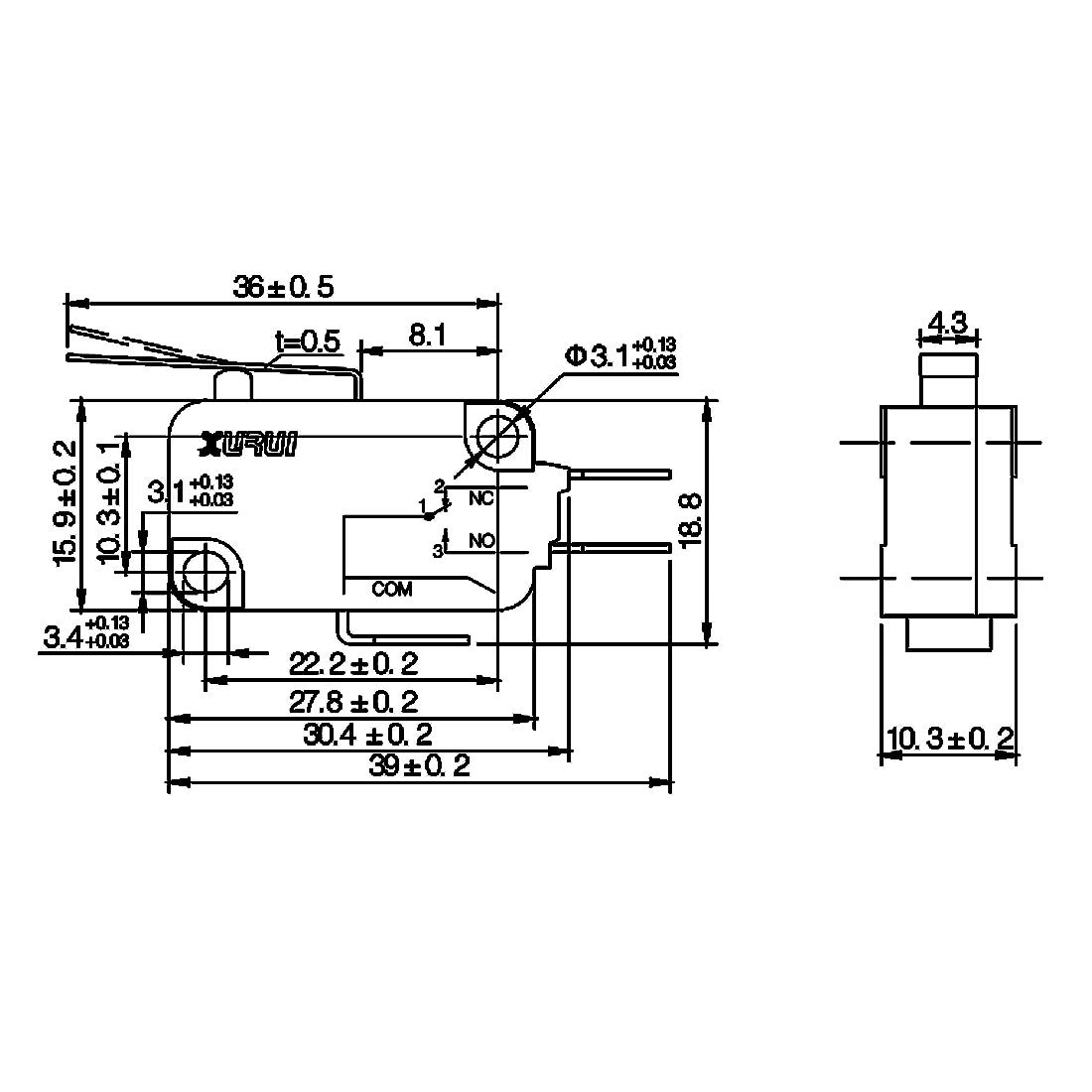

Overall size: 50x23x10mm/1.97x0.91x0.39inch(L*W*H)

Total weight: 12g



Package Content

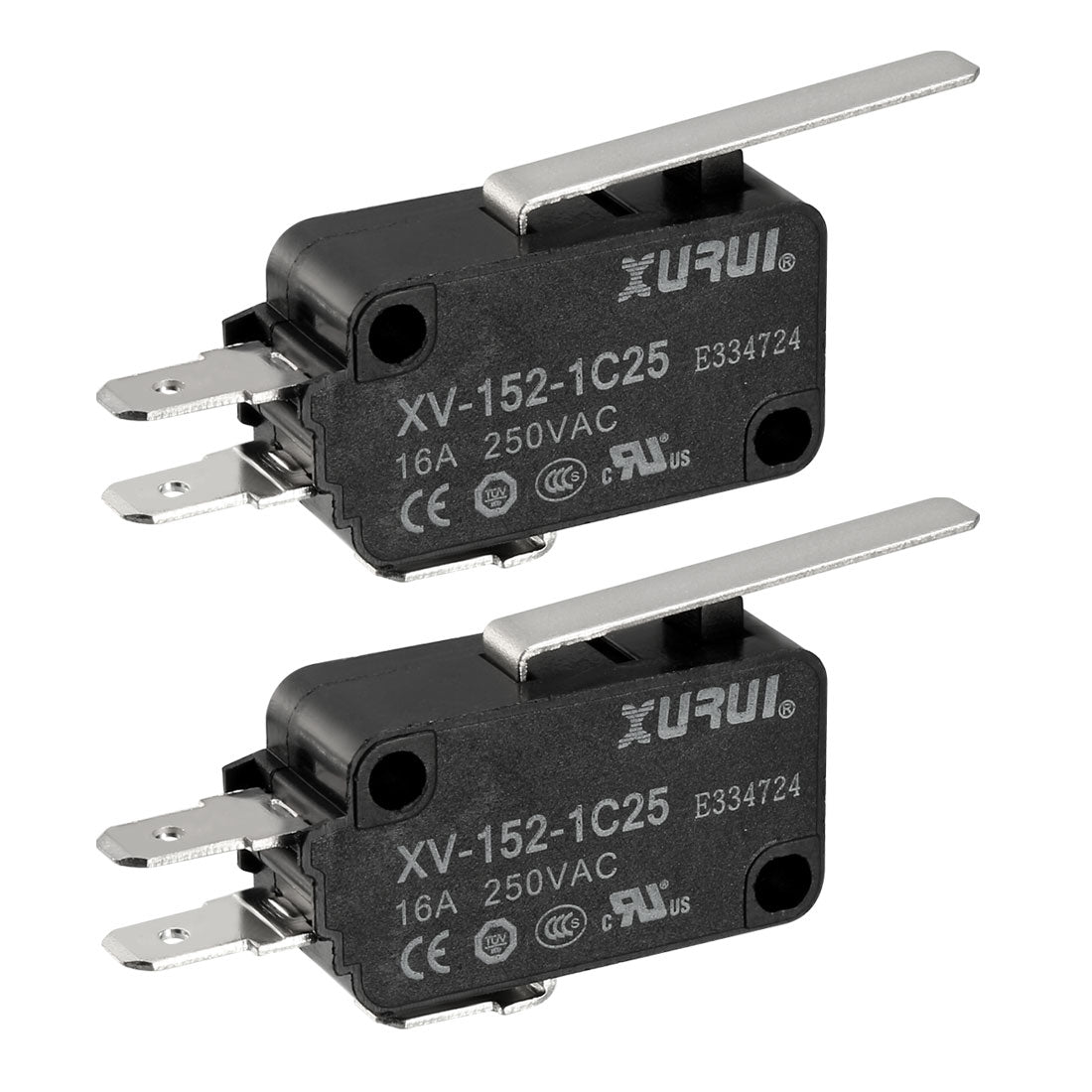

2 x Micro Switch

$6.21 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • Dispatch on Mar.27 - Apr.03. Contact us for more precise lead time.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Description

Description

Widely used in appliance, electronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool , etc.



Specification

Rating: 16A 250VAC

OF max.   125g

Force min.   14g

PT max.   2.8mm

OT min. 1.0mm

Movement Differential max.   0.8mm

OP   15.2+/-1.2mm

Contact Form: SPDT NO+NC

Pin number: 3

Operation speed: 0.1mm-1m/s

Insulation resistance: 100m Ohm Above DC500V

Contact resistance: 25m Ohm initial value

Life: 100000 times above(Electrical); 1000000 times above(Mechanical)

Protection degree: IP40

Operating temperature: -25~+80°C

Certification: UL/CE/

Overall size: 50x23x10mm/1.97x0.91x0.39inch(L*W*H)

Total weight: 12g



Package Content

2 x Micro Switch
