Harfington Uxcell TZ-8112 Limit Switch Roller Plunger 1NC+1NO for CNC Mill Laser Plasma IP65

Uxcell TZ-8112 Limit Switch Roller Plunger 1NC+1NO for CNC Mill Laser Plasma IP65

ID:
$11.10 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About this item
  • Model: ME-8112; Roller Plunger Limit Switch
  • Designed to control the movement of a mechanical part
  • built-in basic switch with good electrical conductivity
  • IP65 Protection. Able to withstand some washdowns, shock and vibration
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
  • In stock, ready to ship
Cart
Cart
About this item
  • Model: ME-8112; Roller Plunger Limit Switch
  • Designed to control the movement of a mechanical part
  • built-in basic switch with good electrical conductivity
  • IP65 Protection. Able to withstand some washdowns, shock and vibration
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Specifications:

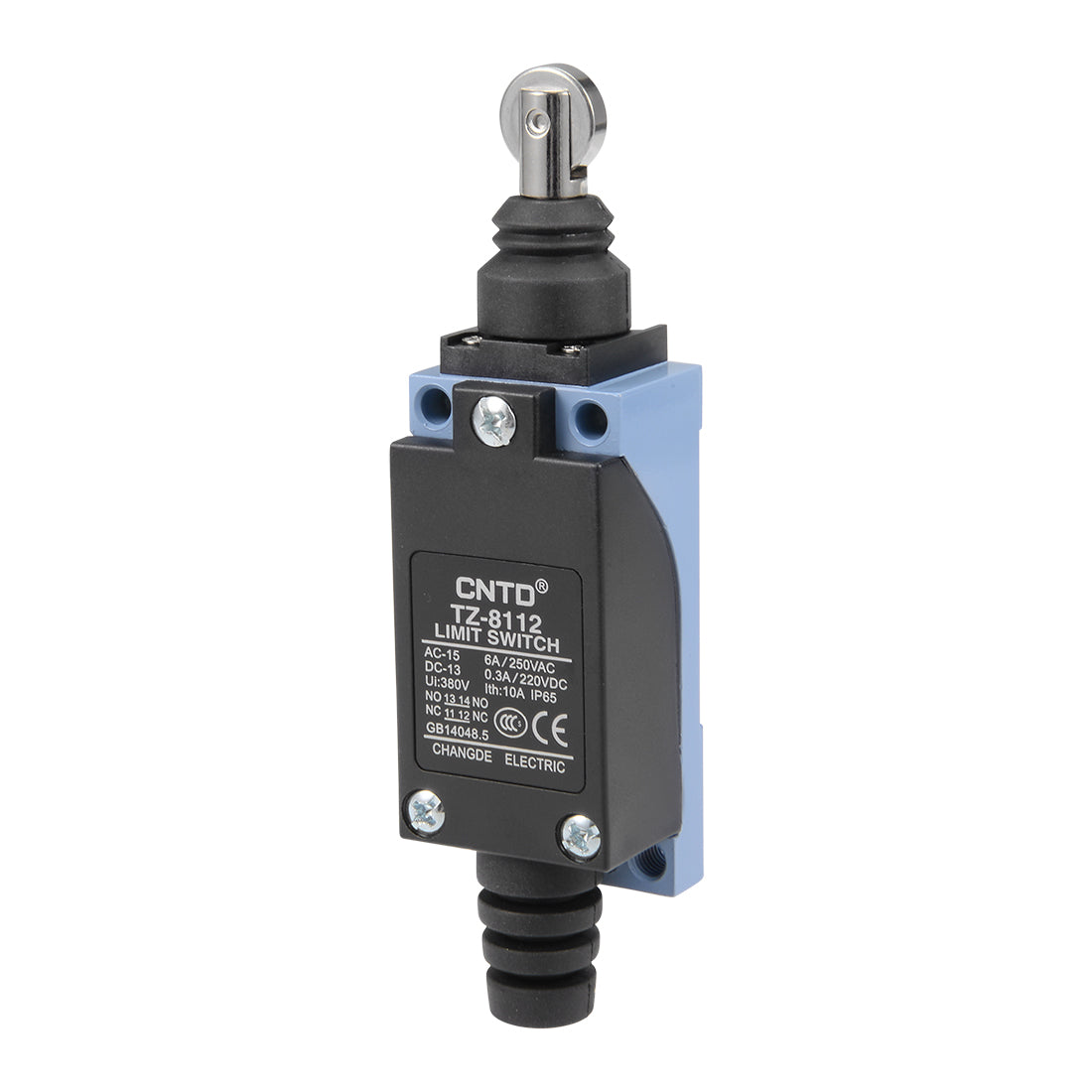

Product Name: Limit Switch

Model: TZ-8112

Actuator Type: Roller Plunger Type

Rated Voltage:

AC-15: (Ue/Ie) 250V/6A

DC-13: (Ue/Ie) 220V/0.3A

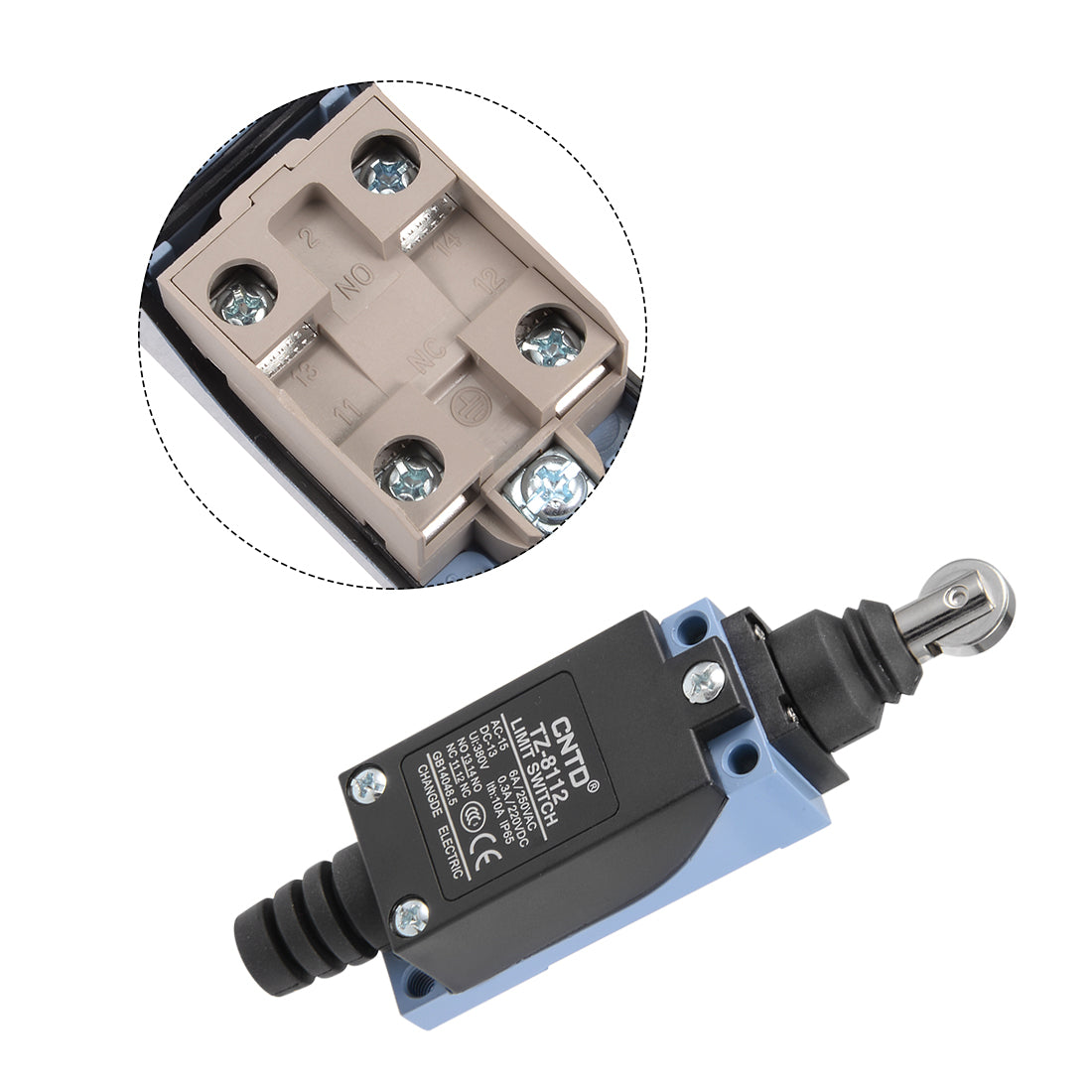

Contact Configuration: 1NC+1NO

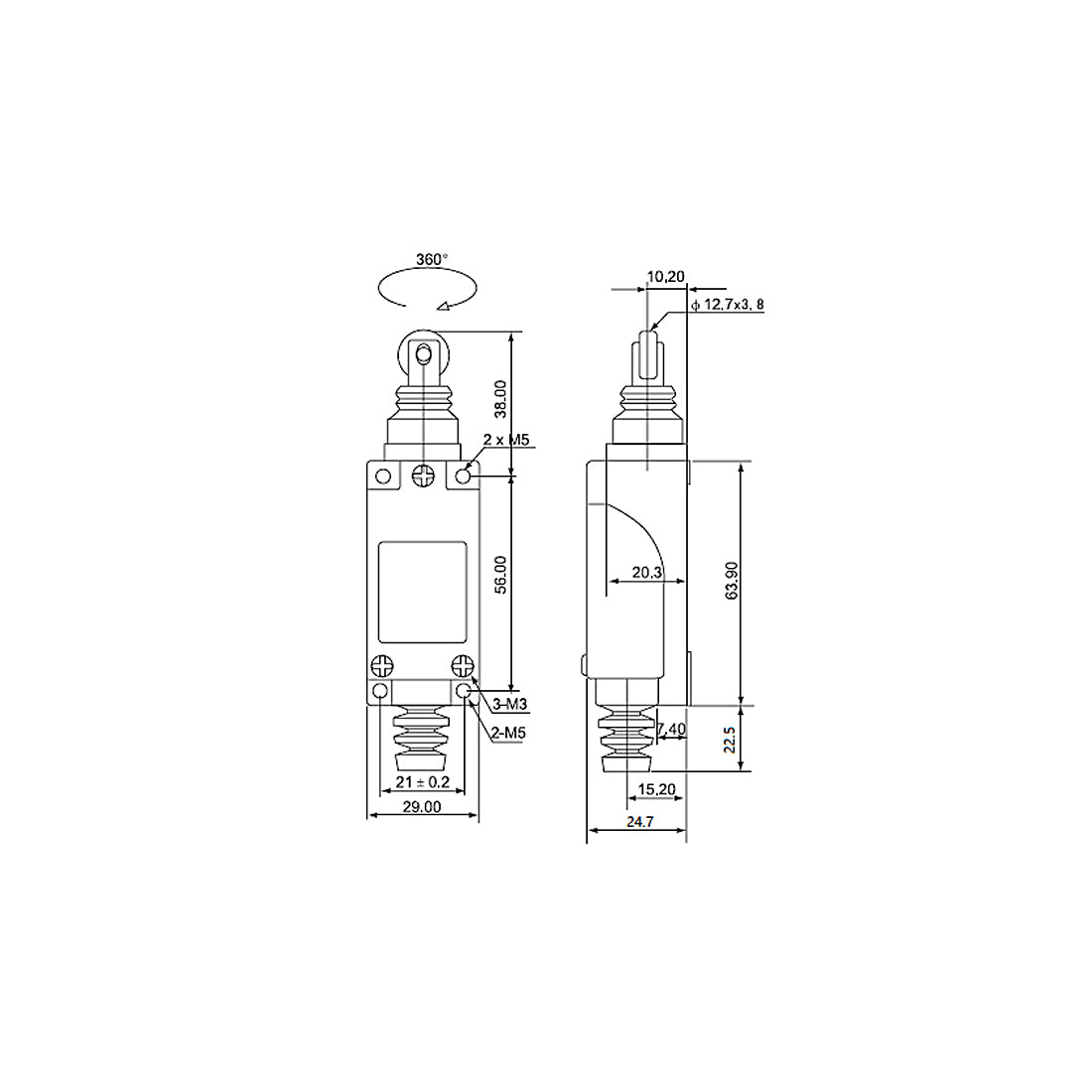

Mounting Hole Size: M5

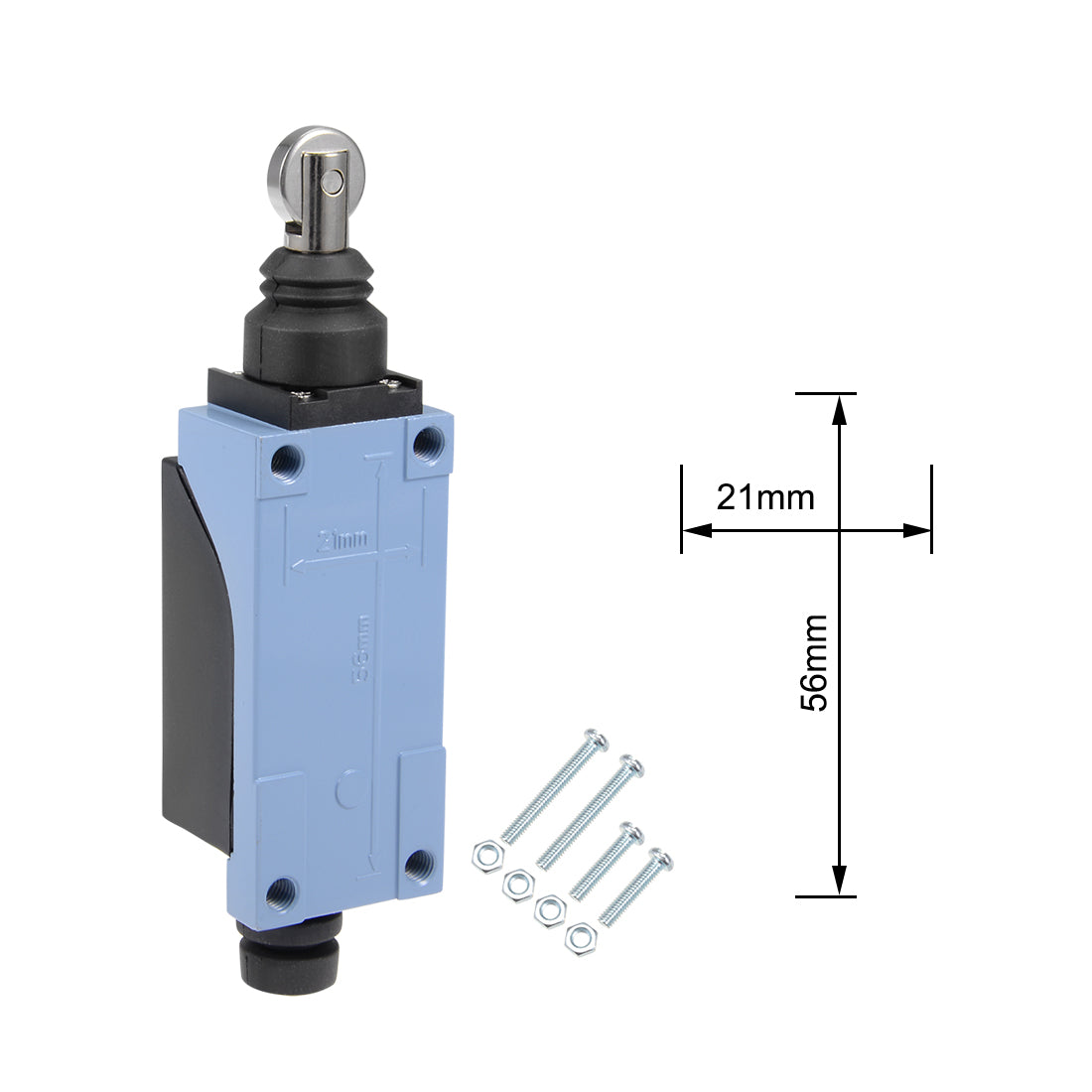

Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)



Note:

The roller plunger can be operated in a wide range by employing a cam, Dog, cylinder, or auxiliary actuator.

Position detection accuracy is high.



Operating Characteristics:

OF max.: 900g

RF min.: 150g

PT max.: 1.5mm

OT min.: 4mm

MD max.: 1mm

OP: 37+/-0.8mm



Features:

  • Double circuit limit switch with build-in double reed mechanism.
  • Zine alloy and intensive plastic shell, strong and highly rigid construction. (Head and cover snugly fit in box)
  • Constructed in small size. Water-proof and oil-proof.
  • Built-in basic switch with double spring mechanism, longer mechanical life.
  • Smooth operation with greater OT.
  • Easy-to-wire circuit opening design.
  • This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.



Product Contents:

1 x Limit Switch with mounting screws
