Harfington Uxcell TZ-8107 Limit Switch Adjustable Rod Lever Arm 1NC+1NO for CNC Mill Laser Plasma IP65 3pcs

Uxcell TZ-8107 Limit Switch Adjustable Rod Lever Arm 1NC+1NO for CNC Mill Laser Plasma IP65 3pcs

ID:
$28.91 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About this item
  • Model: ME-8107; Adjustable Rod Lever Limit Switch
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
  • IP65 Protection. Able to withstand some washdowns, shock and vibration
  • Designed to control the movement of a mechanical part
  • built-in basic switch with good electrical conductivity
  • In stock, ready to ship
Cart
Cart
About this item
  • Model: ME-8107; Adjustable Rod Lever Limit Switch
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
  • IP65 Protection. Able to withstand some washdowns, shock and vibration
  • Designed to control the movement of a mechanical part
  • built-in basic switch with good electrical conductivity
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Specifications:

Product Name: Limit Switch

Model: TZ-8107

Actuator Type: Adjustable Rod Lever Type

Rated Voltage:

AC-15: (Ue/Ie) 250V/6A

DC-13: (Ue/Ie) 220V/0.3A

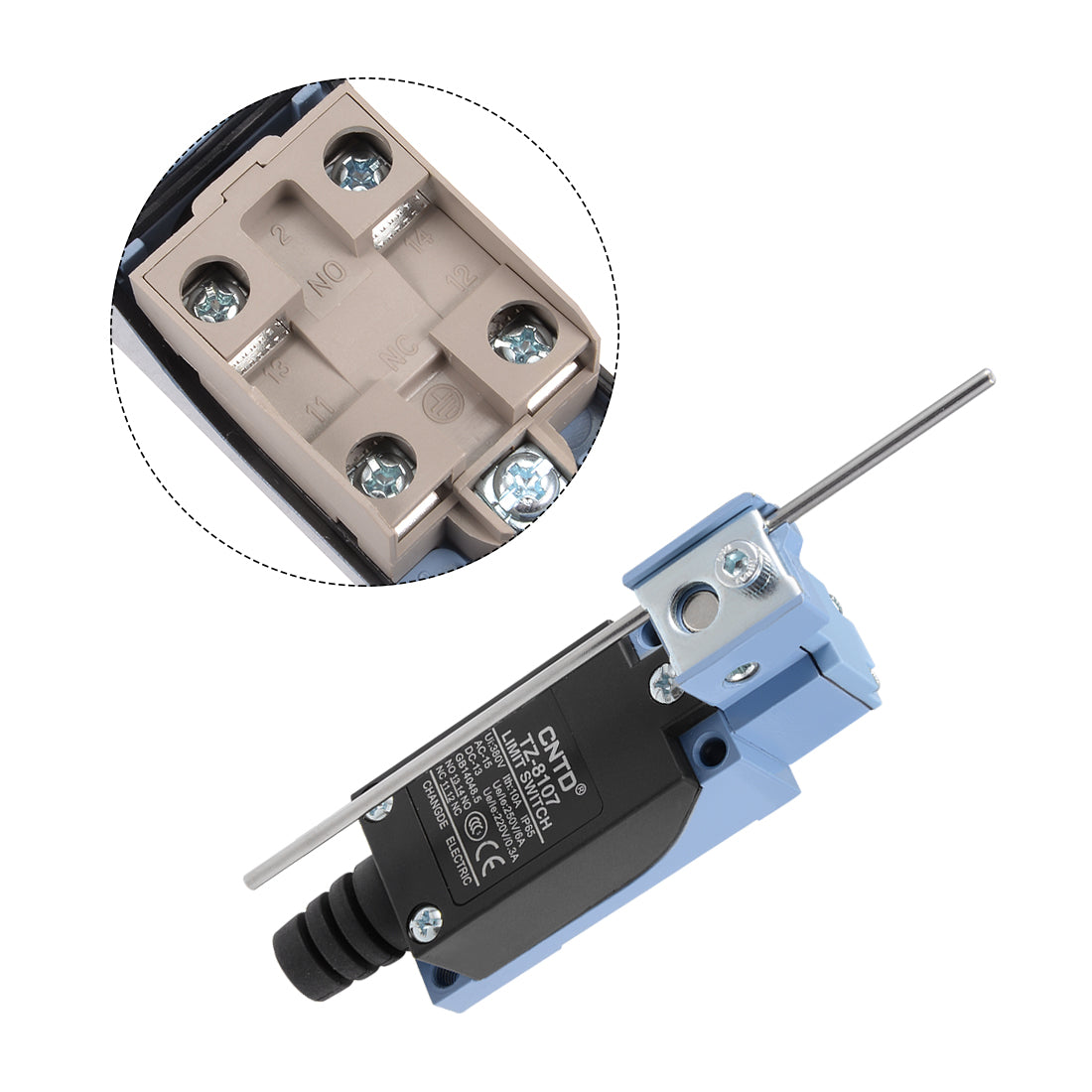

Contact Configuration: 1NC+1NO

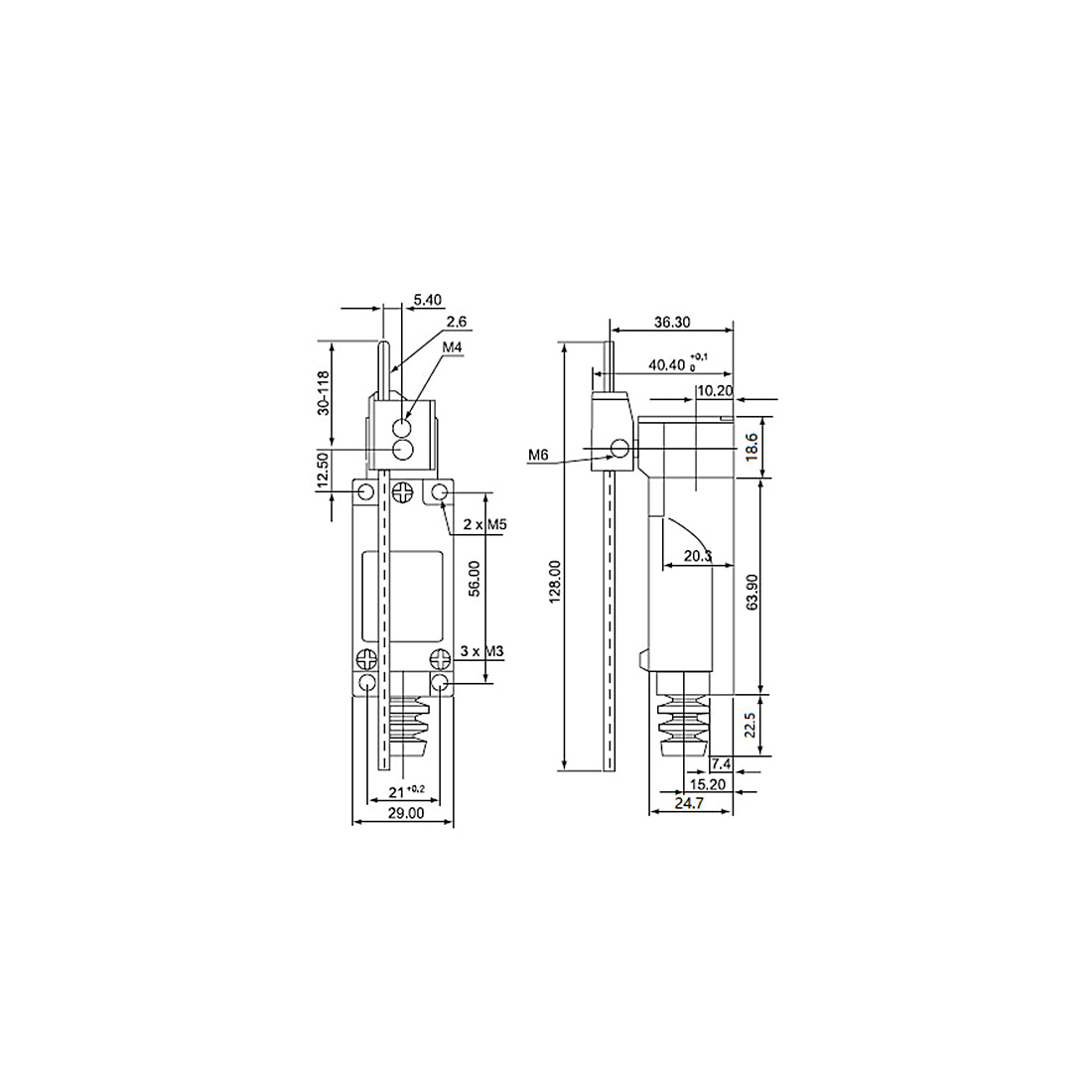

Mounting Hole Size: M5

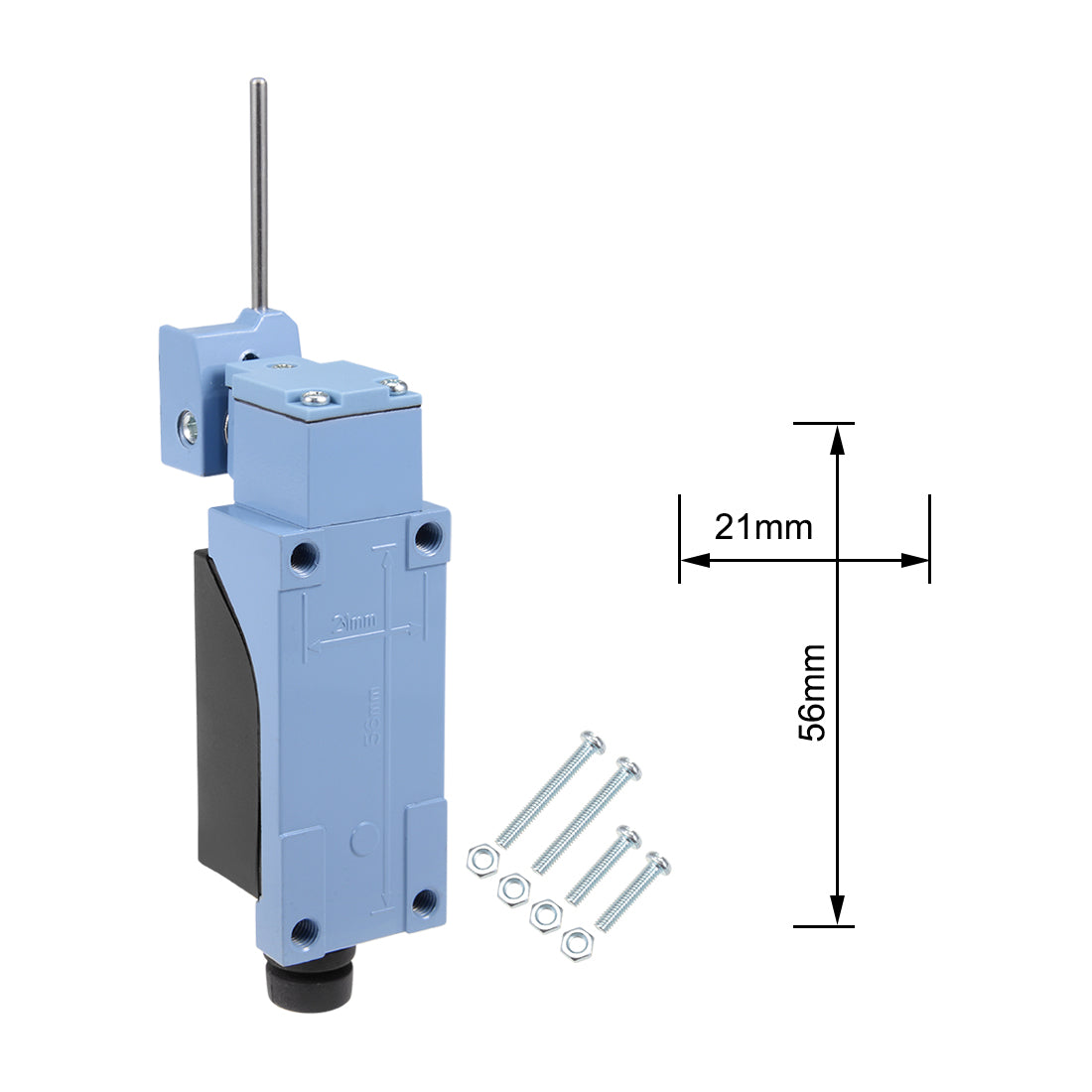

Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)



Note:

This lever is convenient when the dogs are wide or not uniform in size.

The OF required by this lever is smaller than that of any other rotating actuator used for Limit Switches.

The length of the rod is adjustable and the rod itself can be bent easily.



Operating Characteristics:

OF max.: 750g

RF min.: 100g

PT max.: 20°

OT min.: 50°

MD max.: 12°



Features:



  • Double circuit limit switch with build-in double reed mechanism.
  • Zine alloy and intensive plastic shell, strong and highly rigid construction. (Head and cover snugly fit in box)
  • Constructed in small size. Water-proof and oil-proof.
  • Built-in basic switch with double spring mechanism, longer mechanical life.
  • Smooth operation with greater OT.
  • Easy-to-wire circuit opening design.
  • This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.



Product Contents:

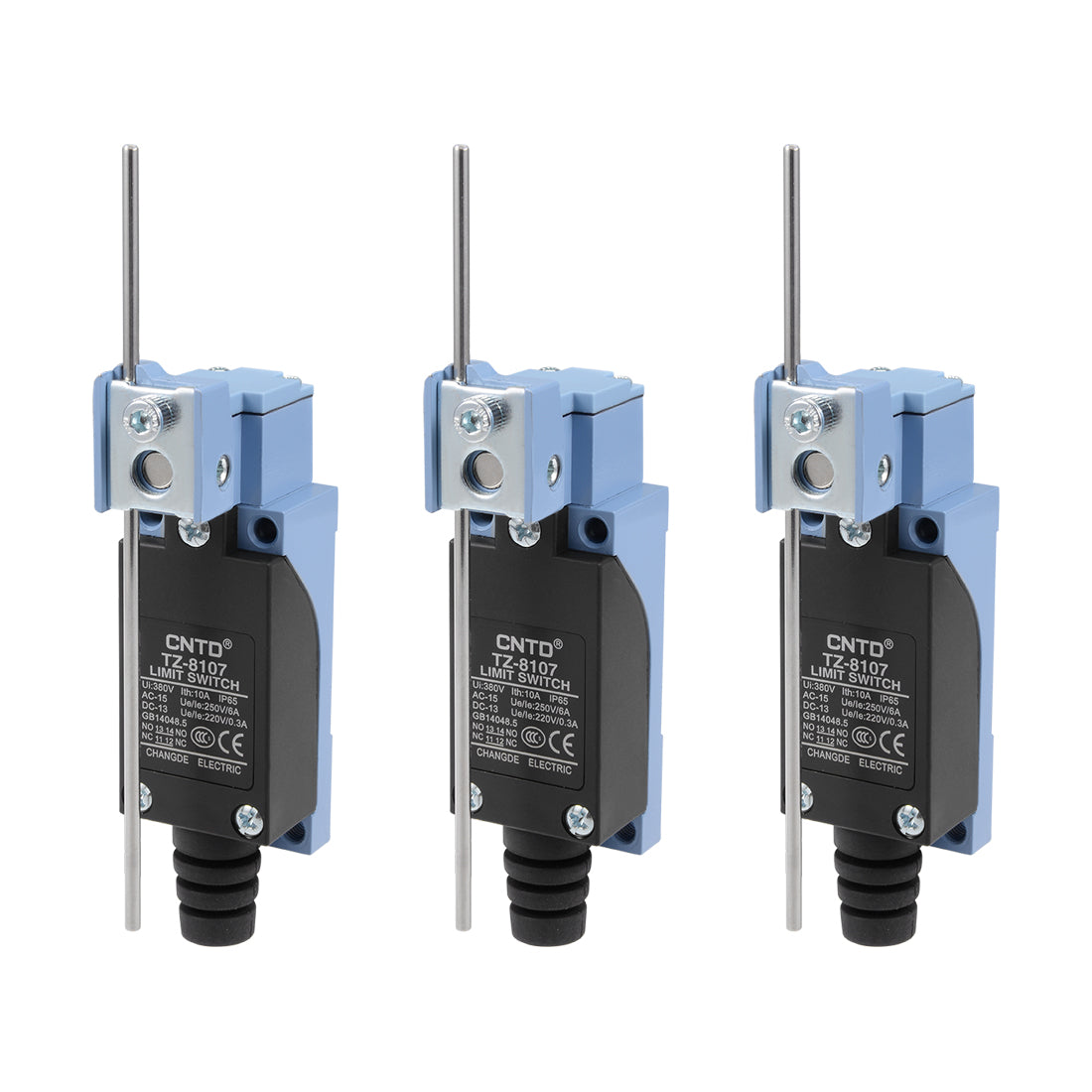

3 x Limit Switch with mounting screws
