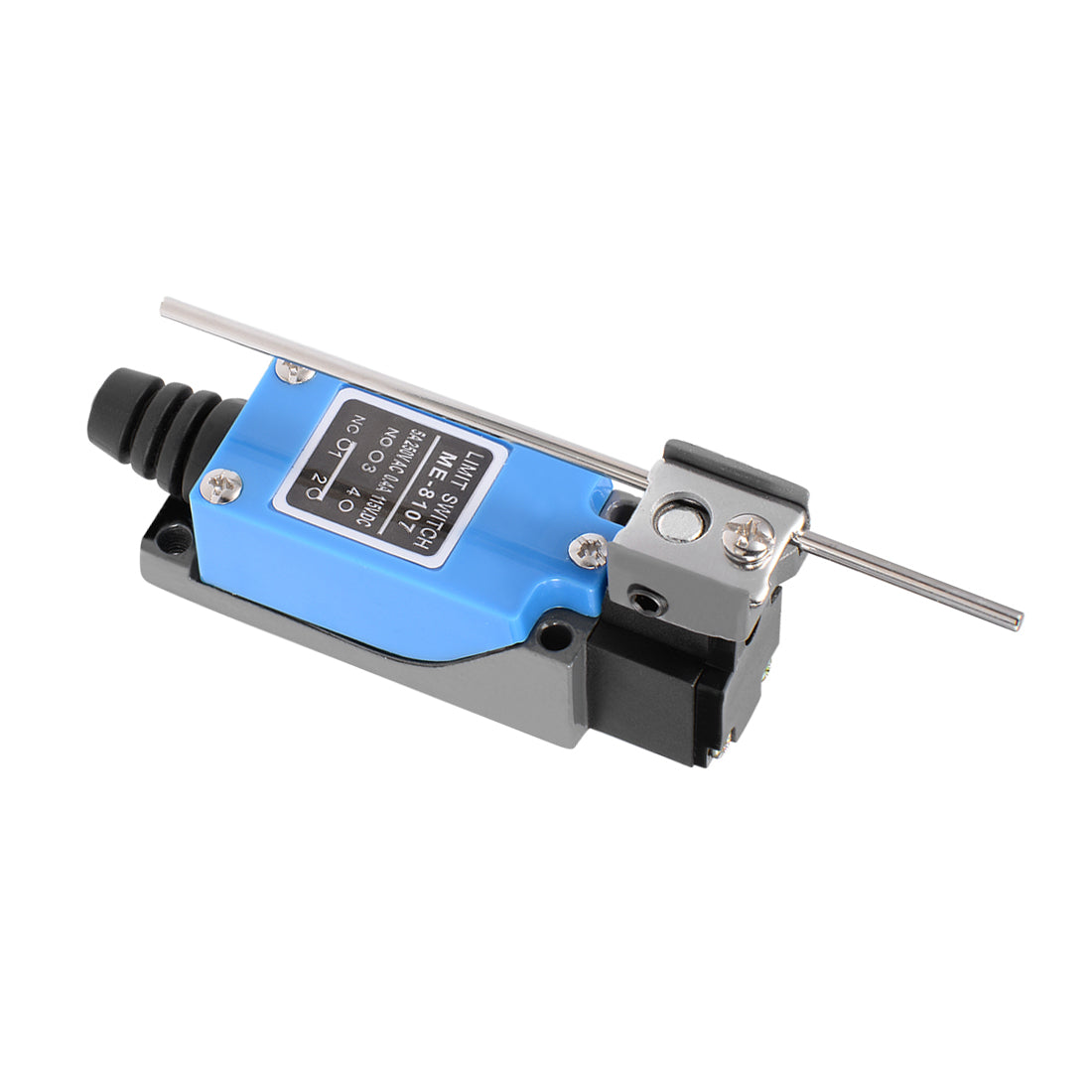

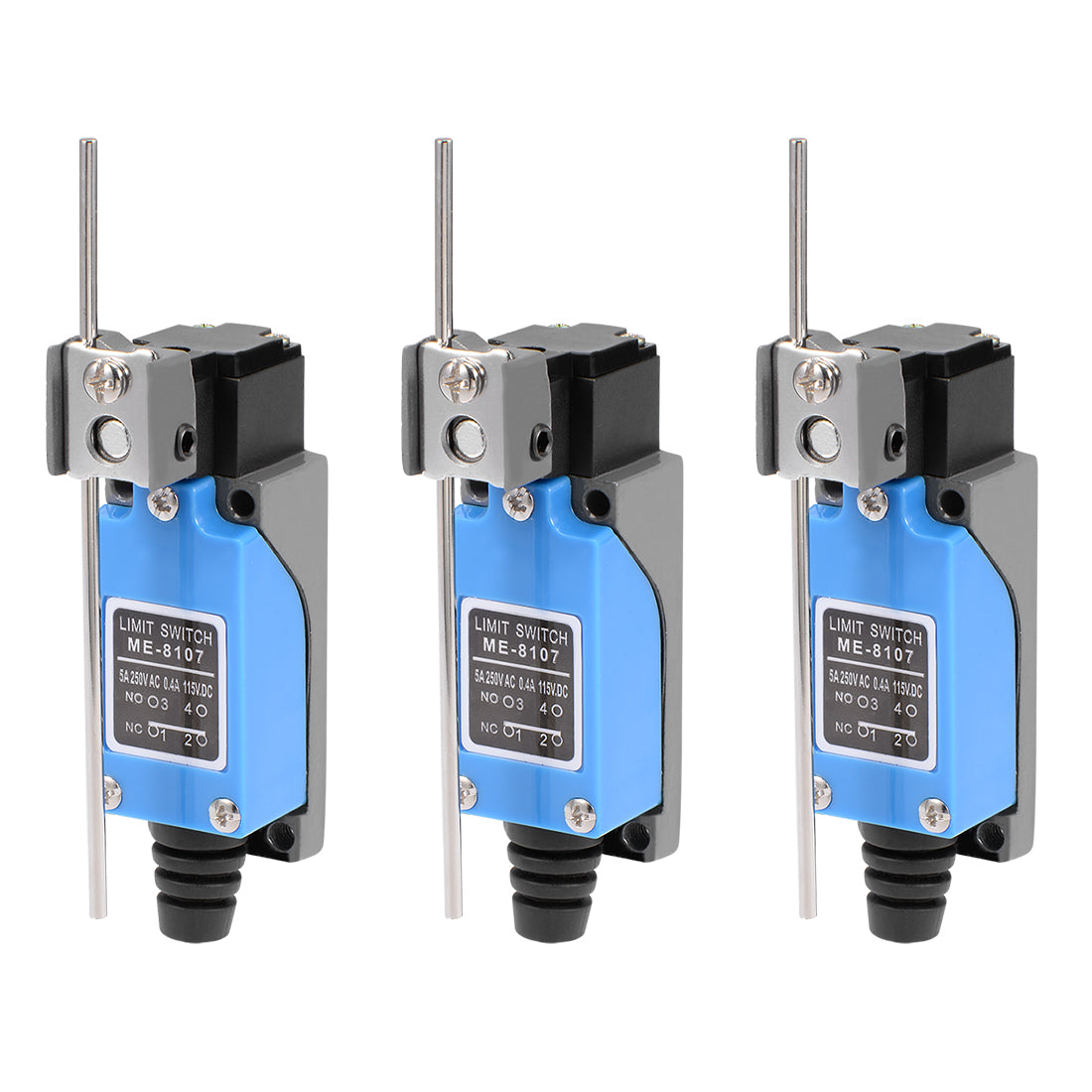

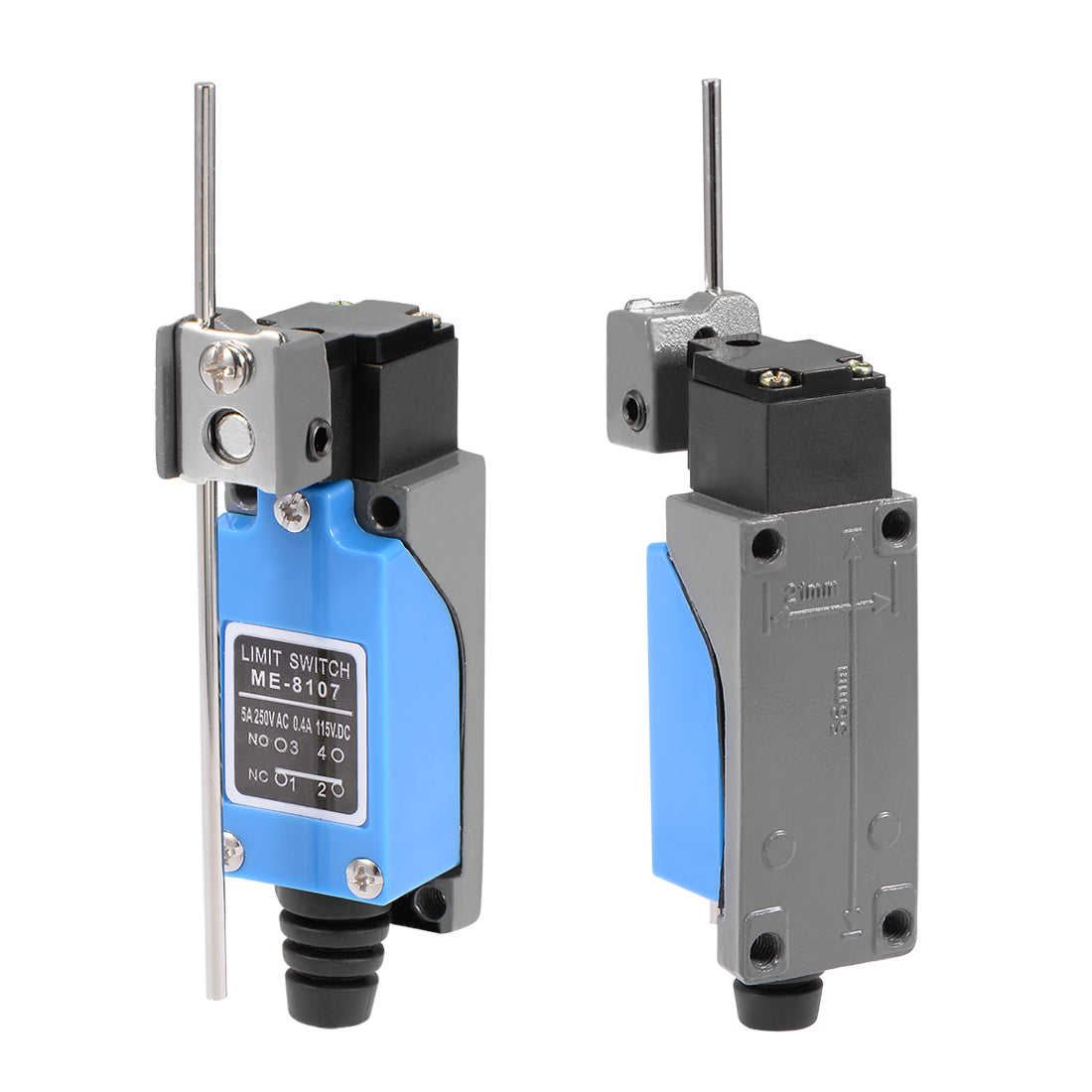

Harfington Uxcell ME-8107 Adjustable Rod Lever Arm Momentary Limit Switch 1NC+1NO 3Pcs

Uxcell ME-8107 Adjustable Rod Lever Arm Momentary Limit Switch 1NC+1NO 3Pcs

ID:1068359
ID:1068359
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Model: ME-8107; Adjustable Rod Lever
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
  • Easy-to-wire, smooth operation and reliable
  • built-in basic switch with good electrical conductivity
  • Able to withstand some washdowns, shock and vibration
About this item
  • Model: ME-8107; Adjustable Rod Lever
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
  • Easy-to-wire, smooth operation and reliable
  • built-in basic switch with good electrical conductivity
  • Able to withstand some washdowns, shock and vibration
Specification

Specification

SKU
a18091500ux0026
Product name
Limit Switch
Model
ME-8107
Actuator type
Adjustable Rod Lever Type
Rated voltage
5A 250V AC / 0.4A 115V DC
Contact configuration
1NC+1NO
Body size
64 x 28 x 25mm (L*W*T)
Mounting hole size
M5

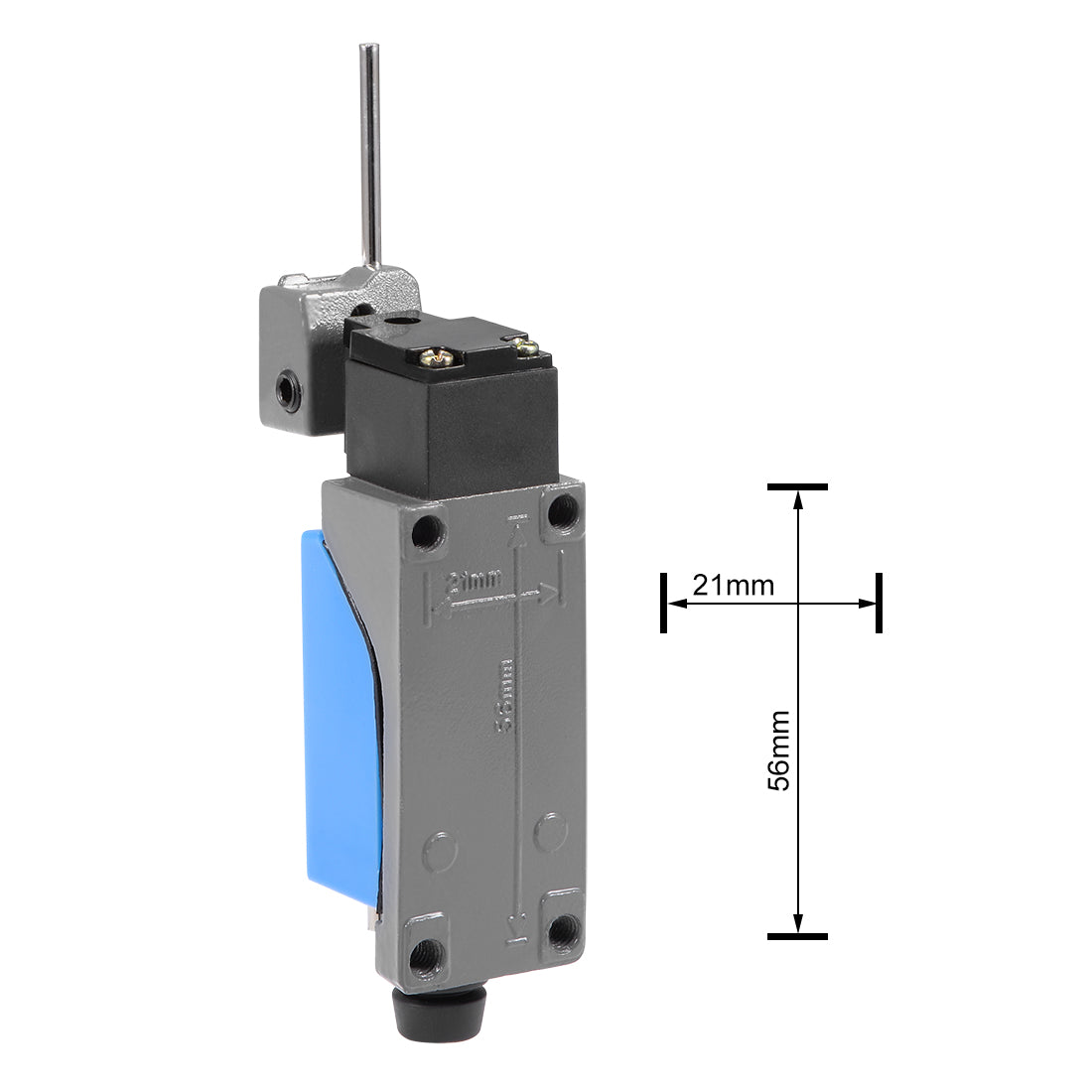

Mounting hole distance
56 x 21mm / 2.2" x 0.83" (L*W)
Of max
700g (6.86N)
Rf min
70g (0.69N)
Pt max
30°
Ot min
60°
Md max
15°
Tt
90°
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Specification:

Product Name: Limit Switch

Model: ME-8107

Actuator Type: Adjustable Rod Lever Type

Rated Voltage: 5A 250V AC / 0.4A 115V DC

Contact Configuration: 1NC+1NO

Body Size: 64 x 28 x 25mm (L*W*T)

Mounting Hole Size: M5

Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)



This lever is convenient when the dogs are wide or not uniform in size.

The OF required by this lever is smaller than that of any other rotating actuator used for Limit Switches.

The length of the rod is adjustable and the rod itself can be bent easily.





Operating Characteristics:

OF max.: 700g (6.86N)

RF min.: 70g (0.69N)

PT max.: 30°

OT min.: 60°

MD max.: 15°

TT: 90°





Description:

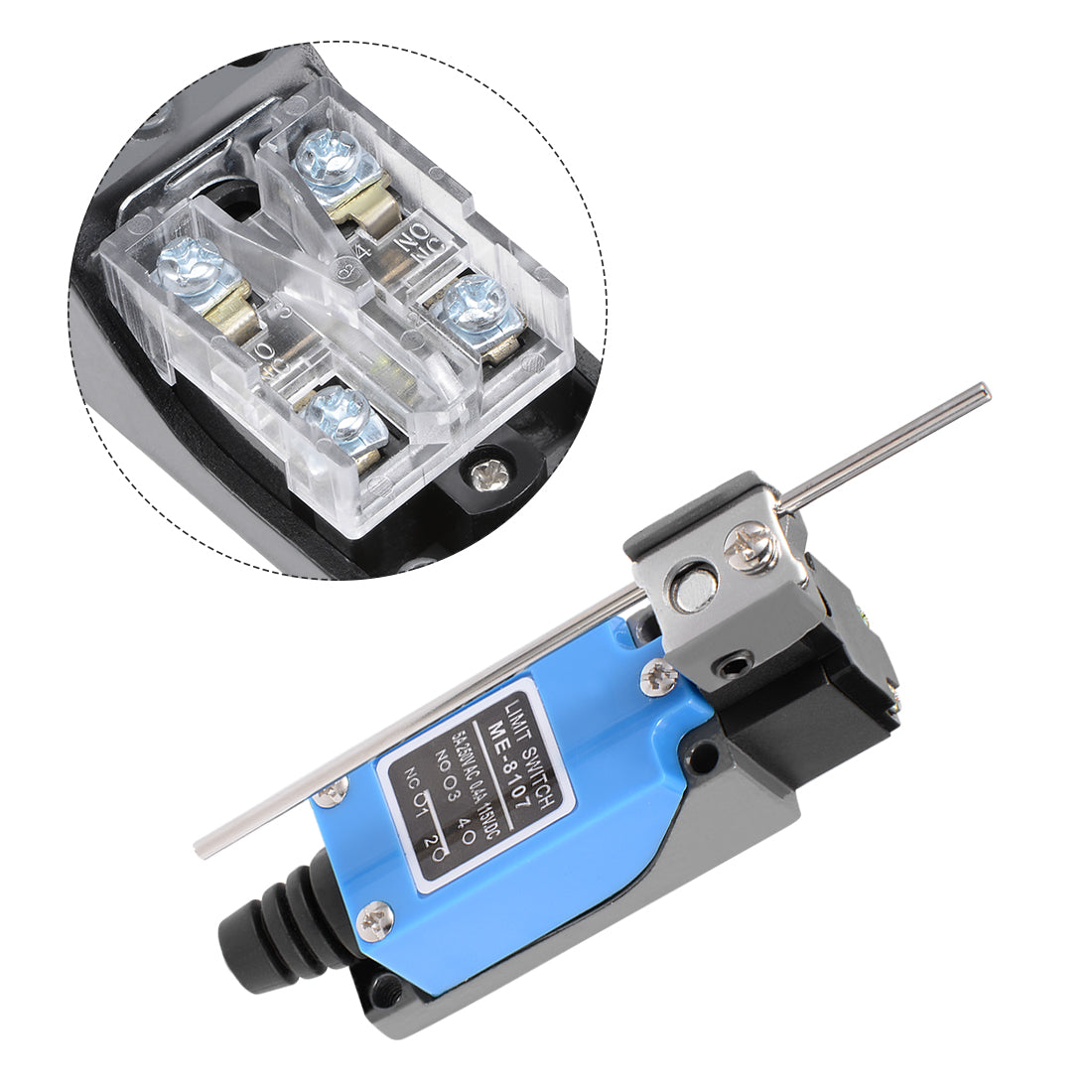

  • Double circuit limit switch with build-in double reed mechanism.
  • Zine alloy and intensive plastic shell, strong and hightly rigid construction.
  • Smooth operation with highter OT.
  • Brass contacts with 30% silver contained. Easy-to-wire design.
  • This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
$11.47 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell ME-8107 Adjustable Rod Lever Arm Momentary Limit Switch 1NC+1NO 3Pcs 1068359 $11.47
Products Title ID Price Qty
Uxcell ME-8107 Adjustable Rod Lever Arm Momentary Limit Switch 1NC+1NO 3Pcs 1068359 $11.47
Uxcell ME-8169 Cat Whisker Flexible Coil Spring Momentary Limit Switch 1NC+1NO 2Pcs 1039608 $9.35
Uxcell ME-8112 Roller Plunger Momentary Limit Switch 1NC+1NO 2Pcs 1080343 $8.71
Uxcell Flexible Coil Spring Rod Momentary Limit Switch ME-8167 1NC+1NO 5Pcs 1072224 $15.23
Uxcell ME-8108 Adjustable Roller Lever Arm Momentary Limit Switch 1NC+1NO 1154485 $6.97
Uxcell ME-8104 Roller Lever Arm Momentary Limit Switch 1NC+1NO 1034562 $7.06
Uxcell ME-8107 Adjustable Rod Lever Arm Momentary Limit Switch 1NC+1NO 1154482 $8.03
Uxcell ME-8111 Plunger Momentary Limit Switch 1NC+1NO 2Pcs 1019849 $8.89
Uxcell ME-8104 Roller Lever Arm Momentary Limit Switch 1NC+1NO 5Pcs 1072218 $16.51
Uxcell ME-8112 Roller Plunger Momentary Limit Switch 1NC+1NO 1072220 $7.07
Uxcell Flexible Coil Spring Momentary Limit Switch 1NC+1NO 5Pcs 1072221 $15.01
Uxcell ME-8166 Flexible Coil Spring Momentary Limit Switch 1NC+1NO 3Pcs 1072222 $11.25
Uxcell ME-9101 Flexible Coil Spring Rod Momentary Limit Switch ME-8167 1NC+1NO 1072223 $7.43
Uxcell ME-8111 Plunger Momentary Limit Switch 1NC+1NO 4Pcs 1068360 $12.53
Uxcell ME-8111 Plunger Momentary Limit Switch 1NC+1NO 1068361 $7.07
Uxcell ME-8166 Flexible Coil Spring Momentary Limit Switch 1NC+1NO 1068362 $7.61
Uxcell ME-8169 Cat Whisker Flexible Coil Spring Momentary Limit Switch 1NC+1NO 3Pcs 1068363 $11.35
Uxcell ME-8108 Adjustable Roller Lever Arm Momentary Limit Switch 1NC+1NO 5Pcs 1072219 $17.13
Uxcell ME-9101 Flexible Coil Spring Rod Momentary Limit Switch ME-8167 1NC+1NO 3Pcs 1034561 $12.88
Uxcell ME-8122 Cross Roller Plunger Momentary Limit Switch 1NC+1NO 5Pcs 1076262 $15.15
Qty: 0 Item(s)
Total Price: $0.00

Description

Description

Specification:

Product Name: Limit Switch

Model: ME-8107

Actuator Type: Adjustable Rod Lever Type

Rated Voltage: 5A 250V AC / 0.4A 115V DC

Contact Configuration: 1NC+1NO

Body Size: 64 x 28 x 25mm (L*W*T)

Mounting Hole Size: M5

Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)



This lever is convenient when the dogs are wide or not uniform in size.

The OF required by this lever is smaller than that of any other rotating actuator used for Limit Switches.

The length of the rod is adjustable and the rod itself can be bent easily.





Operating Characteristics:

OF max.: 700g (6.86N)

RF min.: 70g (0.69N)

PT max.: 30°

OT min.: 60°

MD max.: 15°

TT: 90°





Description:



  • Double circuit limit switch with build-in double reed mechanism.
  • Zine alloy and intensive plastic shell, strong and hightly rigid construction.
  • Smooth operation with highter OT.
  • Brass contacts with 30% silver contained. Easy-to-wire design.
  • This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
