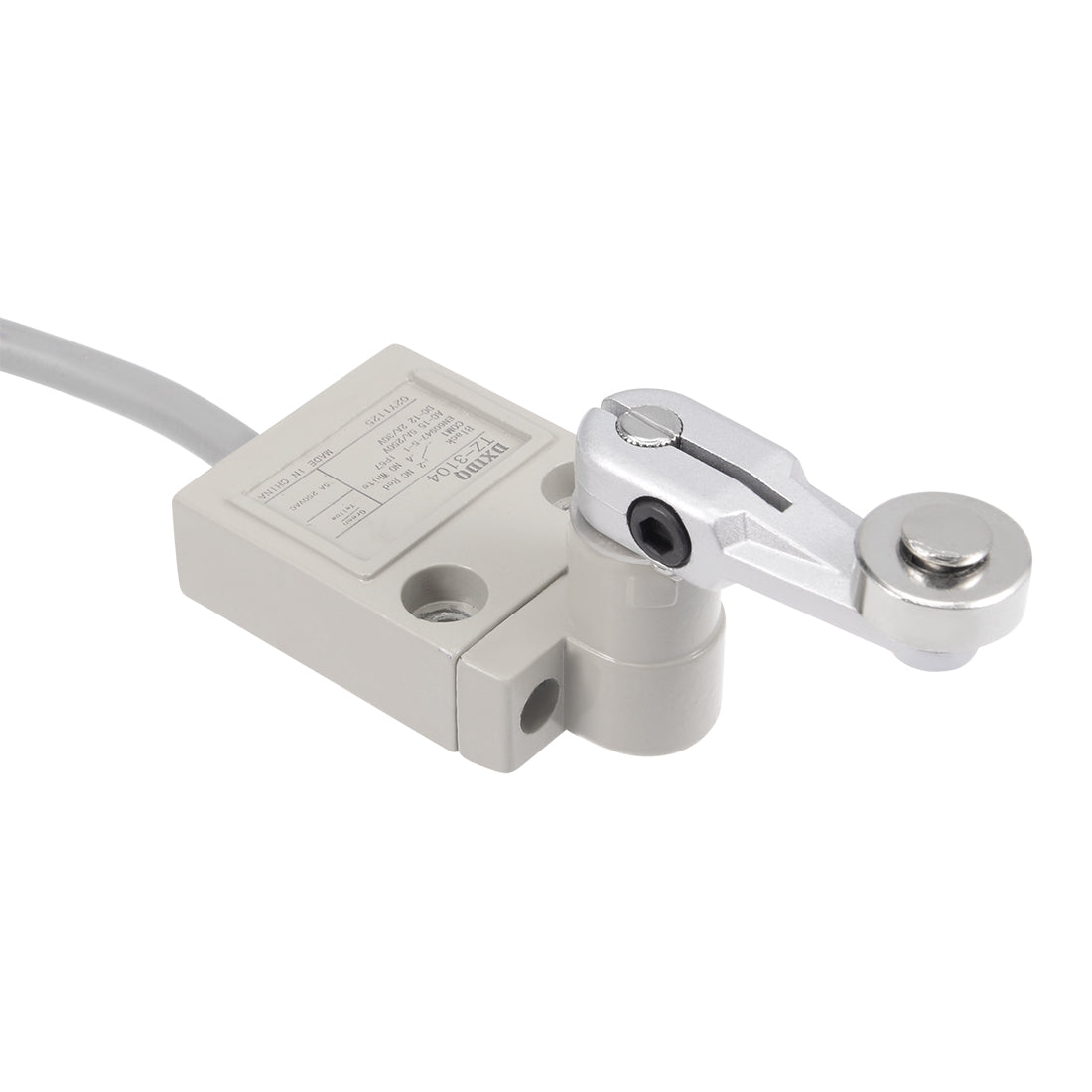

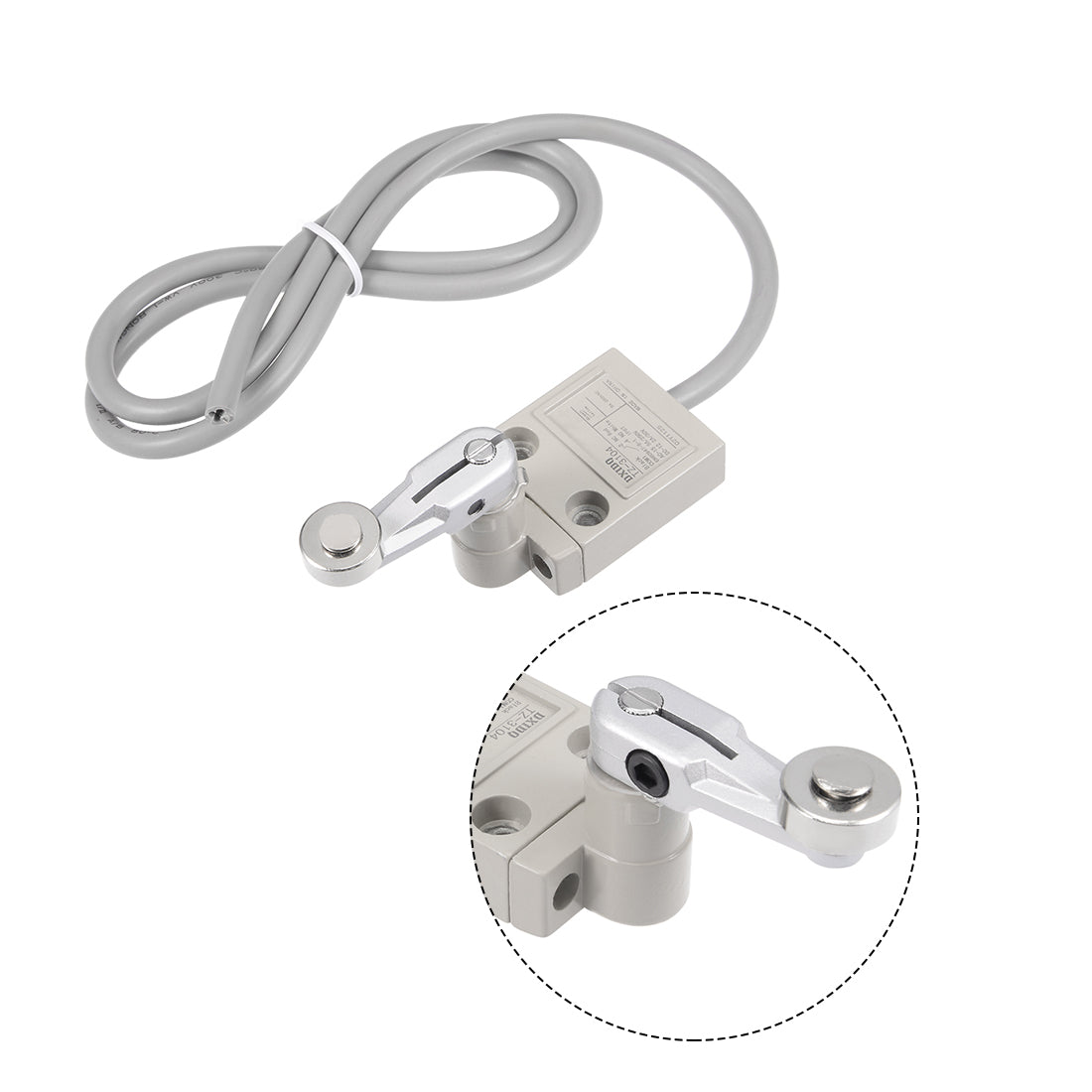

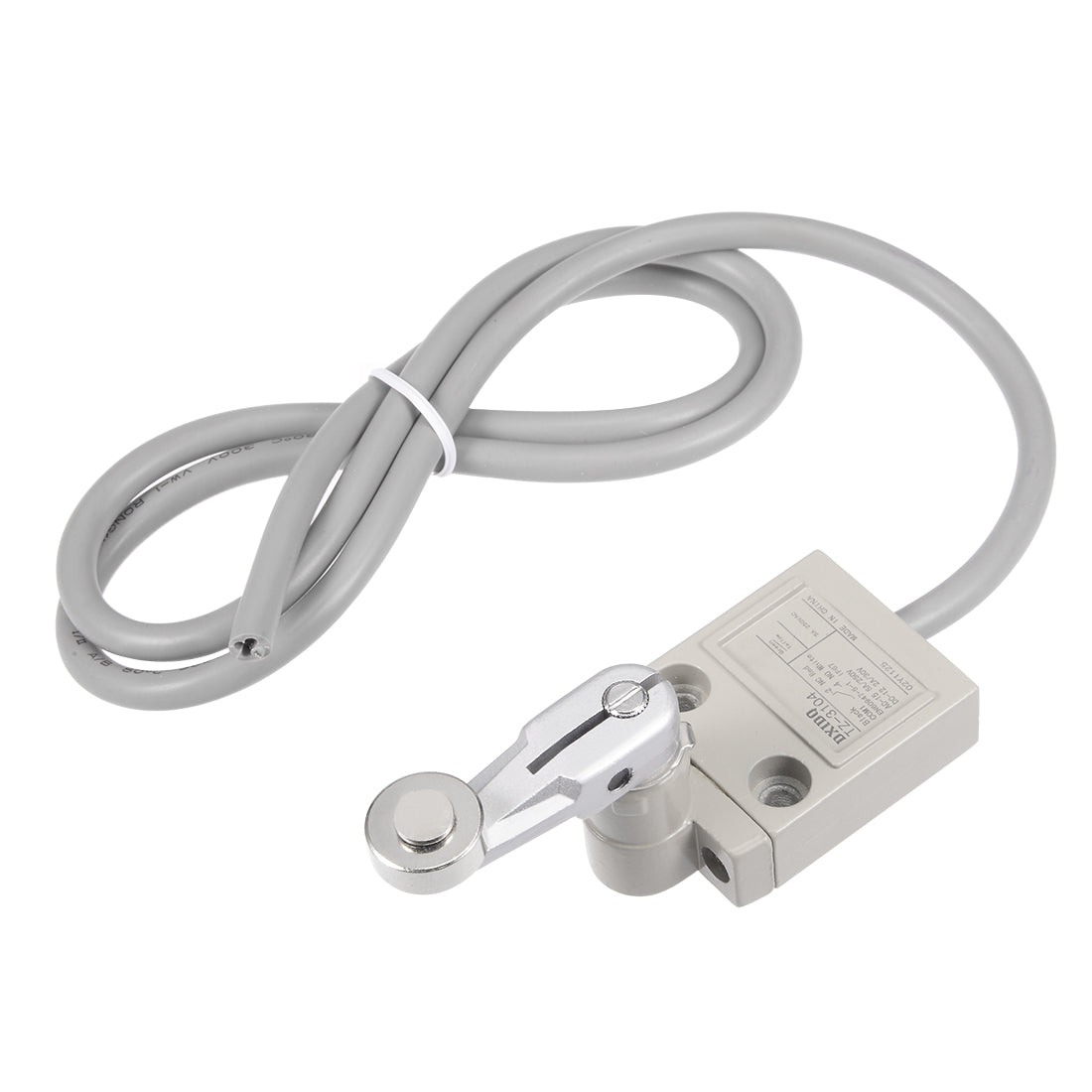

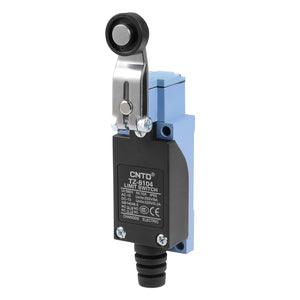

Harfington Uxcell TZ-3104 3108 Roller Lever Arm Limit Switch Momentary Compact Prewired 1NC+1NO

Uxcell TZ-3104 3108 Roller Lever Arm Limit Switch Momentary Compact Prewired 1NC+1NO

ID:
$14.50 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About this item
  • Model: TZ-3104 (3108); Metal Wheel Roller Lever Type
  • built-in basic switch with good electrical conductivity
  • Able to withstand some washdowns, shock and vibration
  • Prewied, smooth operation and reliable
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
  • In stock, ready to ship
Cart
Cart
About this item
  • Model: TZ-3104 (3108); Metal Wheel Roller Lever Type
  • built-in basic switch with good electrical conductivity
  • Able to withstand some washdowns, shock and vibration
  • Prewied, smooth operation and reliable
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Specification:

Product Name: Limit Switch

Model: TZ-3104 (3108)

Actuator Type: Metal Wheel Roller Lever Type

Rated Voltage:

AC-15: 5A 250V

DC-12: 2A 30V

Contact Configuration: COM-Black, NC-Red, NO-White, E-Green/Yellow

Wire Length: ~1M

Body Size: 48.5 x 40 x 16mm (L*W*T)

Mounting Hole Size: 5.2mm (D)

Mounting Hole Distance: 25mm

The stroke in the operating direction is as large as 45° to 90°, the actual angle of which varies with the model.

These roller lever limit switches are applied to a wide range of applications including object positioning and detection.

Operating Characteristics:

OF max.: 580gf (5.69N)

RF min.: 150gf (1.47N)

PT max.: 25°

OT min.: 40°

MD max.: 3°

Description:

  • Double circuit limit switch with build-in double reed mechanism.
  • Aluminium alloy shell, strong and hightly rigid construction.
  • Smooth operation with highter OT.
  • Prewired design.
  • This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
