Harfington Uxcell ME-8108 Adjustable Roller Lever Arm Momentary Limit Switch 1NC+1NO

Uxcell ME-8108 Adjustable Roller Lever Arm Momentary Limit Switch 1NC+1NO

ID:
$6.97 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About this item
  • Model: ME-8108; Plastic Wheel Adjustable Roller Lever
  • built-in basic switch with good electrical conductivity
  • Able to withstand some washdowns, shock and vibration
  • Easy-to-wire, smooth operation and reliable
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
  • In stock, ready to ship
Cart
Cart
About this item
  • Model: ME-8108; Plastic Wheel Adjustable Roller Lever
  • built-in basic switch with good electrical conductivity
  • Able to withstand some washdowns, shock and vibration
  • Easy-to-wire, smooth operation and reliable
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Specification:

Product Name: Limit Switch

Model: ME-8108

Actuator Type: Plastic Wheel Adjustable Roller Lever Type

Rated Voltage: 5A 250V AC / 0.4A 115V DC

Contact Configuration: 1NC+1NO

Body Size: 64 x 28 x 25mm (L*W*T)

Mounting Hole Size: M5

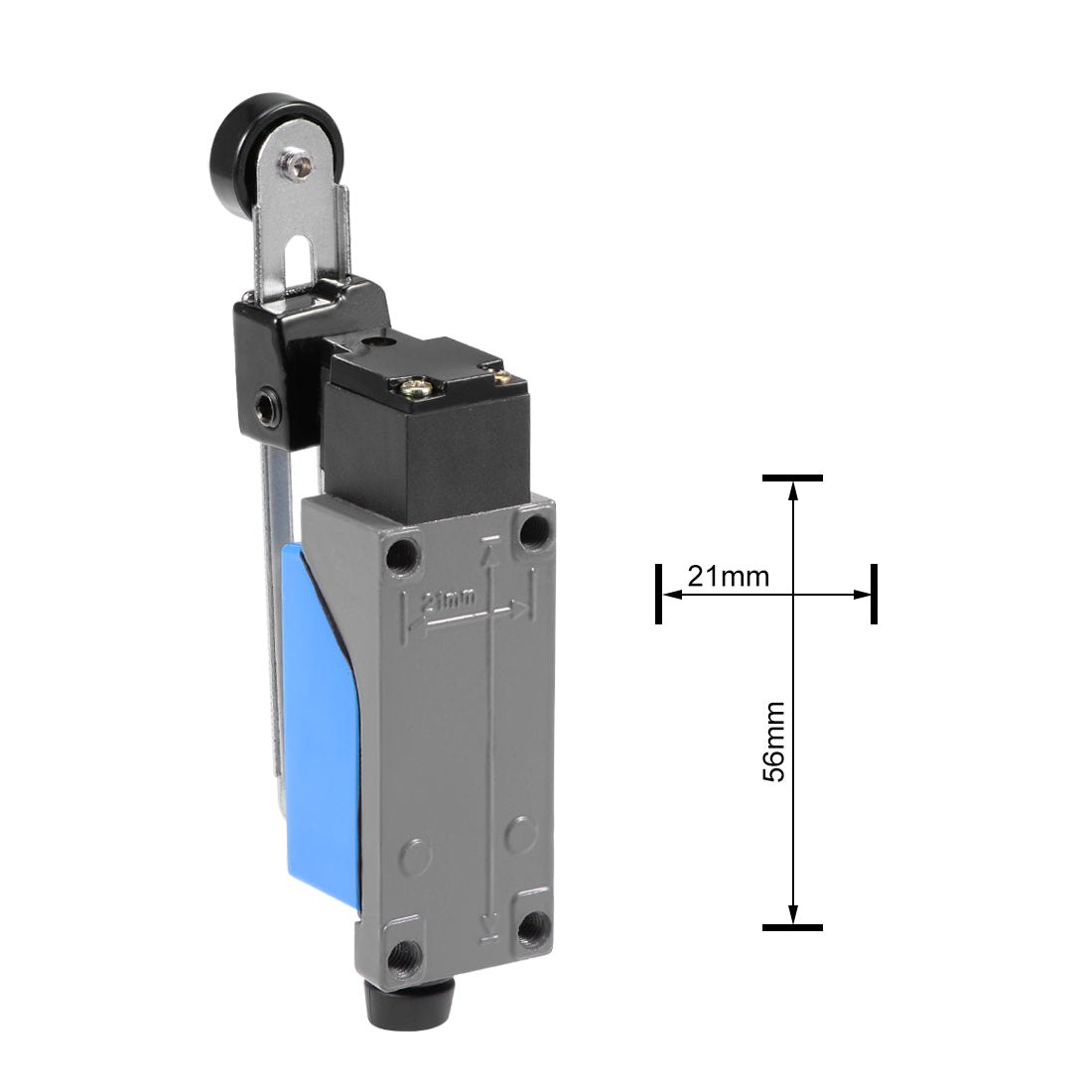

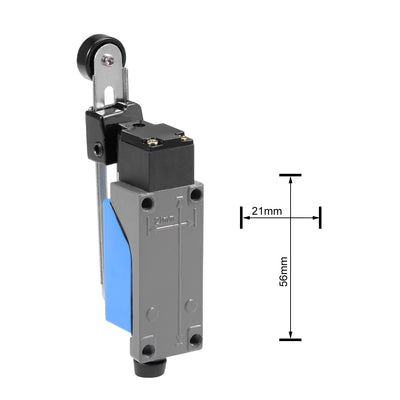

Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)

The stroke in the operating direction is as large as 45° to 90°, the actual angle of which varies with the model.

These roller lever limit switches are applied to a wide range of applications including object positioning and detection.

The length of the lever is adjustable.

Operating Characteristics:

OF max.: 800g (7.84N)

RF min.: 60g (0.59N)

PT max.: 30°

OT min.: 60°

MD max.: 15°

TT: 90°

Description:

  • Double circuit limit switch with build-in double reed mechanism.
  • Zine alloy and intensive plastic shell, strong and hightly rigid construction.
  • Smooth operation with highter OT.

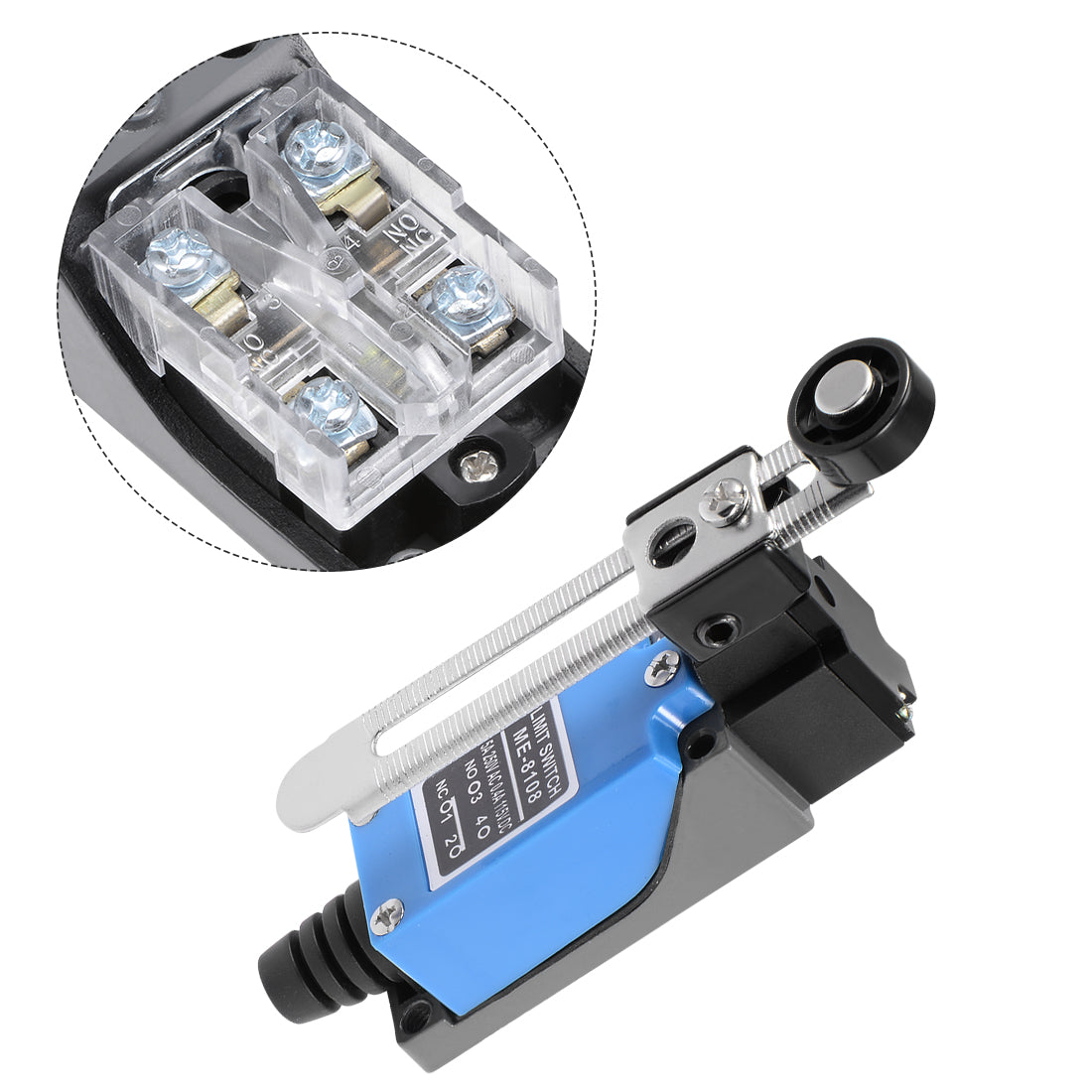

  • Brass contacts with 30% silver contained. Easy-to-wire design.
  • This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
