Harfington Uxcell TZ-8167 Limit Switch Flexible Coil Spring Rod 1NC+1NO for CNC Mill Laser Plasma IP65 2pcs

Uxcell TZ-8167 Limit Switch Flexible Coil Spring Rod 1NC+1NO for CNC Mill Laser Plasma IP65 2pcs

ID:1084676
ID:1084676
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Model: ME-8167; Flexible Spring Rod Limit Switch
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
  • IP65 Protection. Able to withstand some washdowns, shock and vibration
  • Designed to control the movement of a mechanical part
  • built-in basic switch with good electrical conductivity
About this item
  • Model: ME-8167; Flexible Spring Rod Limit Switch
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
  • IP65 Protection. Able to withstand some washdowns, shock and vibration
  • Designed to control the movement of a mechanical part
  • built-in basic switch with good electrical conductivity
Specification

Specification

SKU
a18101800ux0410
Product name
Limit Switch
Model
TZ-8167
Actuator type
Flexible Spring Rod Type
Ac15
(Ue/Ie) 250V/6A
Dc13
(Ue/Ie) 220V/0.3A
Contact configuration
1NC+1NO
Mounting hole size
M4
Mounting hole distance
56 x 21mm / 2.2" x 0.83" (L*W)
Of max
150g
Pt max
30mm
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Specifications:

Product Name: Limit Switch

Model: TZ-8167

Actuator Type: Flexible Spring Rod Type

Rated Voltage:

AC-15: (Ue/Ie) 250V/6A

DC-13: (Ue/Ie) 220V/0.3A

Contact Configuration: 1NC+1NO

Mounting Hole Size: M4

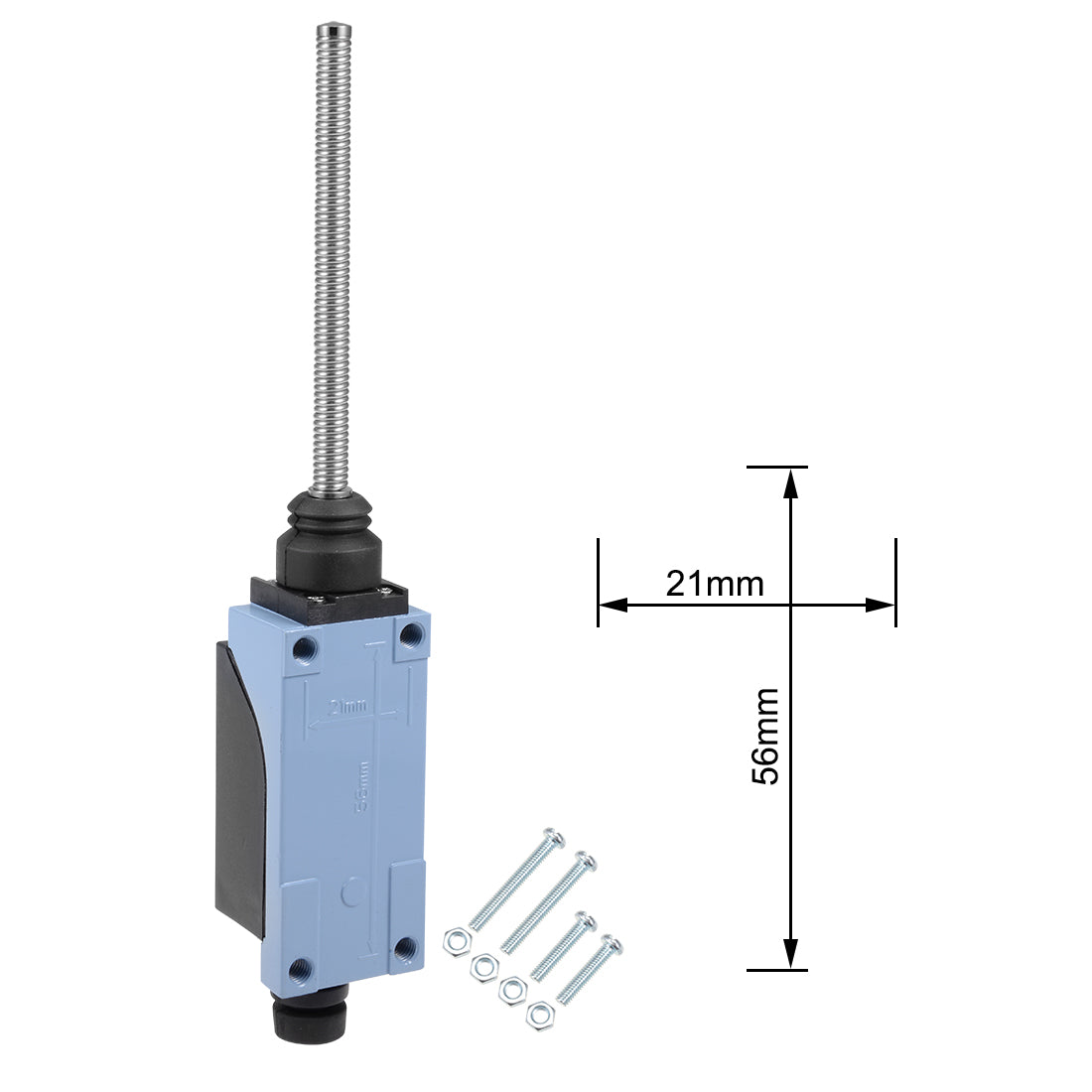

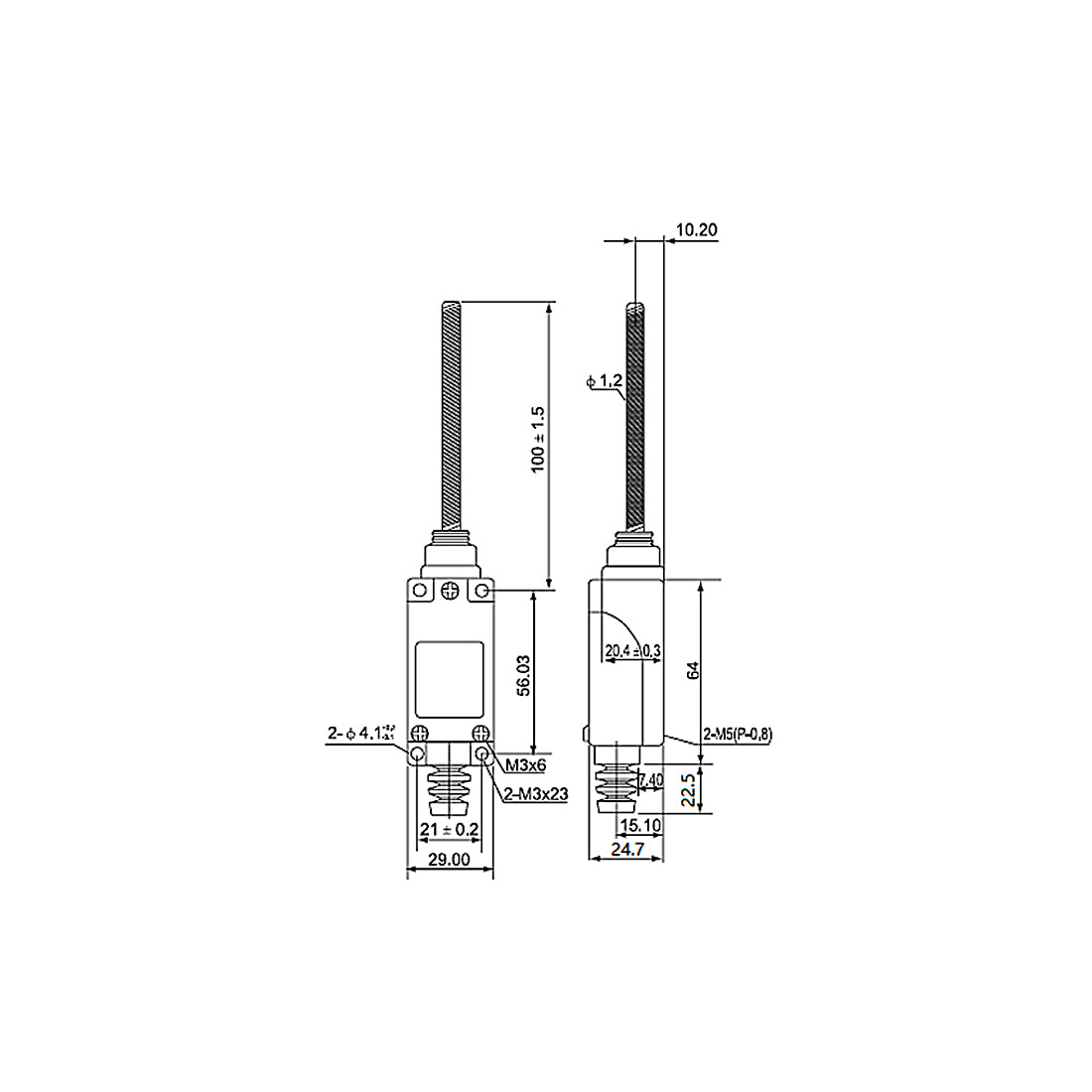

Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)



Note:

The coil spring can be operated in any direction except the axis direction.

The use of the coil spring is for that are not uniform in size or direction.



Operating Characteristics:

OF max.: 150g

PT max.: 30mm



Features:

  • Double circuit limit switch with build-in double reed mechanism.
  • Zinc alloy and intensive plastic shell, strong and highly rigid construction. (Head and cover snugly fit in box)
  • Constructed in small size. Water-proof and oil-proof.
  • Built-in basic switch with double spring mechanism, longer mechanical life.
  • Smooth operation with greater OT.

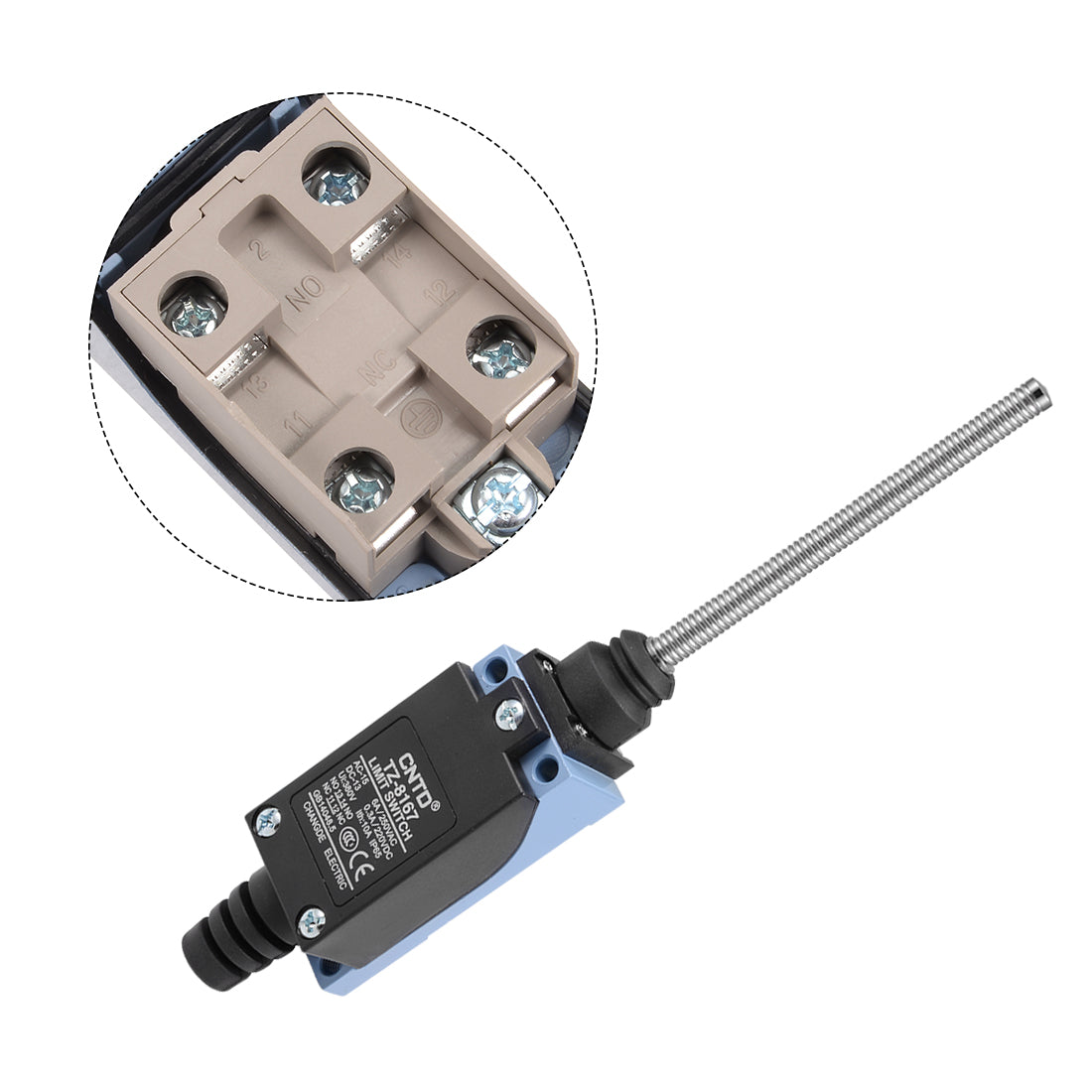

  • Easy-to-wire circuit opening design.
  • This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.



Product Contents:

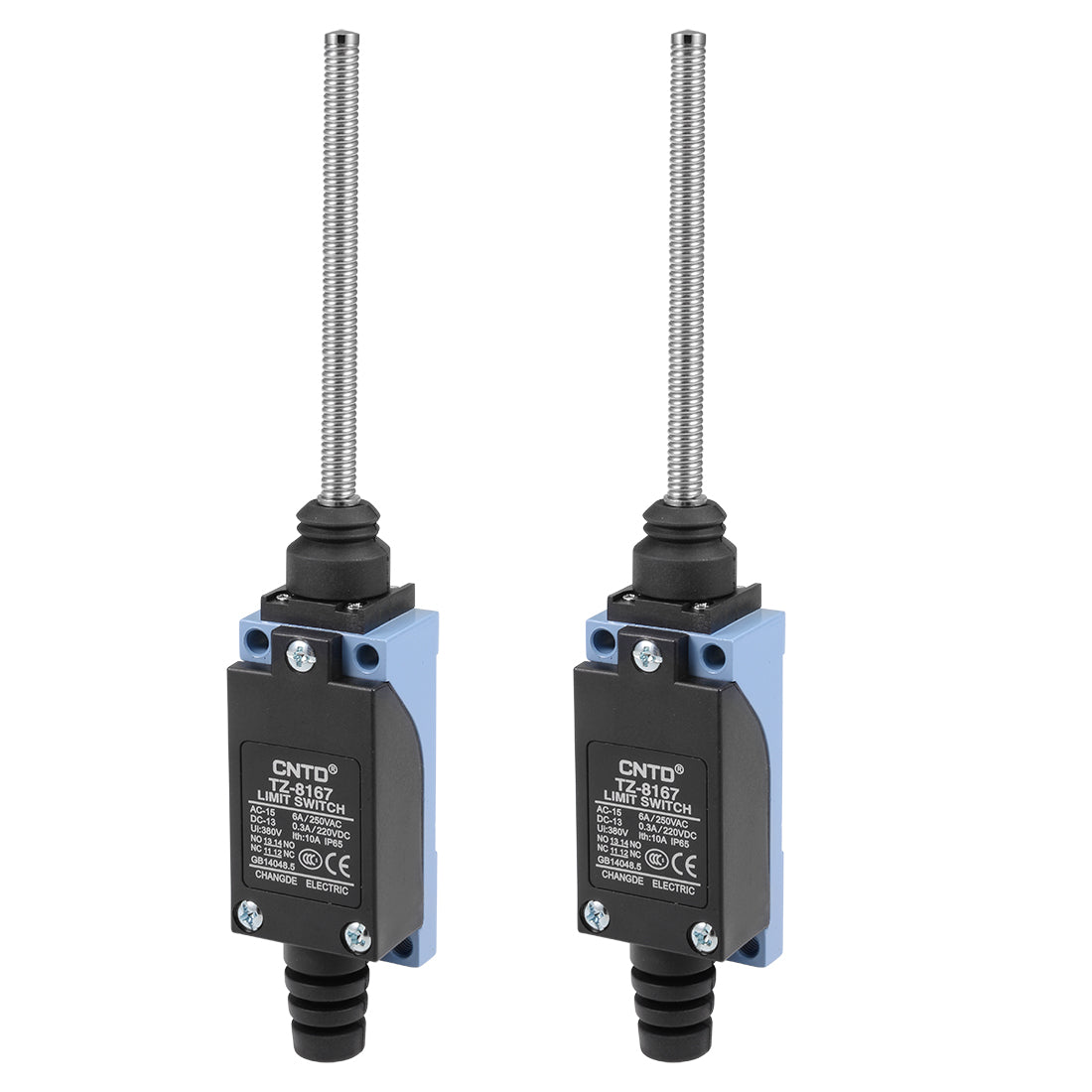

2 x Limit Switch with mounting screws

$18.46 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • Dispatch on Mar.20 - Mar.27. Contact us for more precise lead time.
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell TZ-8167 Limit Switch Flexible Coil Spring Rod 1NC+1NO for CNC Mill Laser Plasma IP65 2pcs 1084676 $18.46
Products Title ID Price Qty
Uxcell TZ-8167 Limit Switch Flexible Coil Spring Rod 1NC+1NO for CNC Mill Laser Plasma IP65 2pcs 1084676 $18.46
Uxcell TZ-8167 Limit Switch Flexible Coil Spring Rod 1NC+1NO for CNC Mill Laser Plasma IP65 1088883 $11.59
Qty: 0 Item(s)
Total Price: $0.00

Description

Description

Specifications:

Product Name: Limit Switch

Model: TZ-8167

Actuator Type: Flexible Spring Rod Type

Rated Voltage:

AC-15: (Ue/Ie) 250V/6A

DC-13: (Ue/Ie) 220V/0.3A

Contact Configuration: 1NC+1NO

Mounting Hole Size: M4

Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)



Note:

The coil spring can be operated in any direction except the axis direction.

The use of the coil spring is for that are not uniform in size or direction.



Operating Characteristics:

OF max.: 150g

PT max.: 30mm



Features:

  • Double circuit limit switch with build-in double reed mechanism.
  • Zinc alloy and intensive plastic shell, strong and highly rigid construction. (Head and cover snugly fit in box)
  • Constructed in small size. Water-proof and oil-proof.
  • Built-in basic switch with double spring mechanism, longer mechanical life.
  • Smooth operation with greater OT.
  • Easy-to-wire circuit opening design.
  • This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.



Product Contents:

2 x Limit Switch with mounting screws
