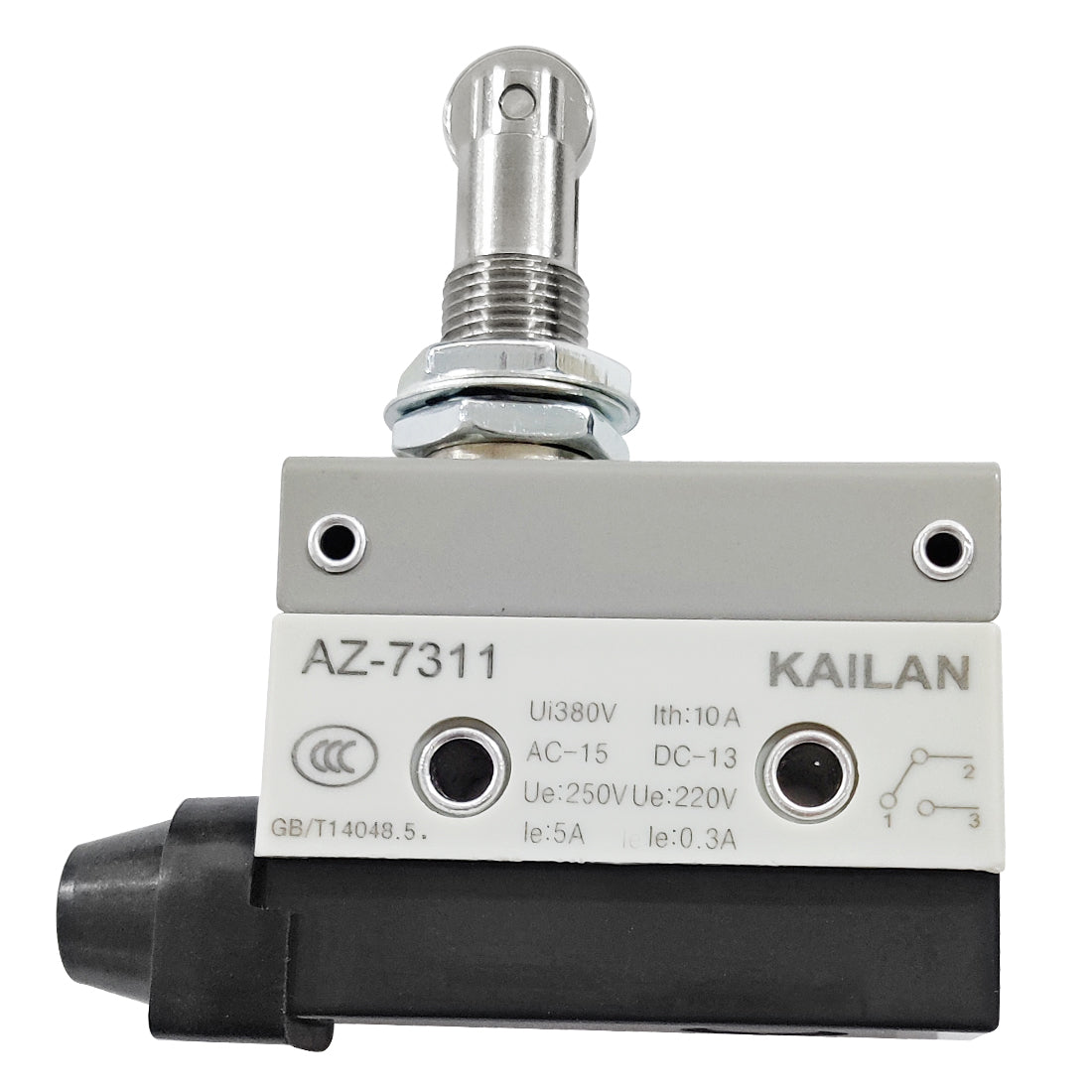

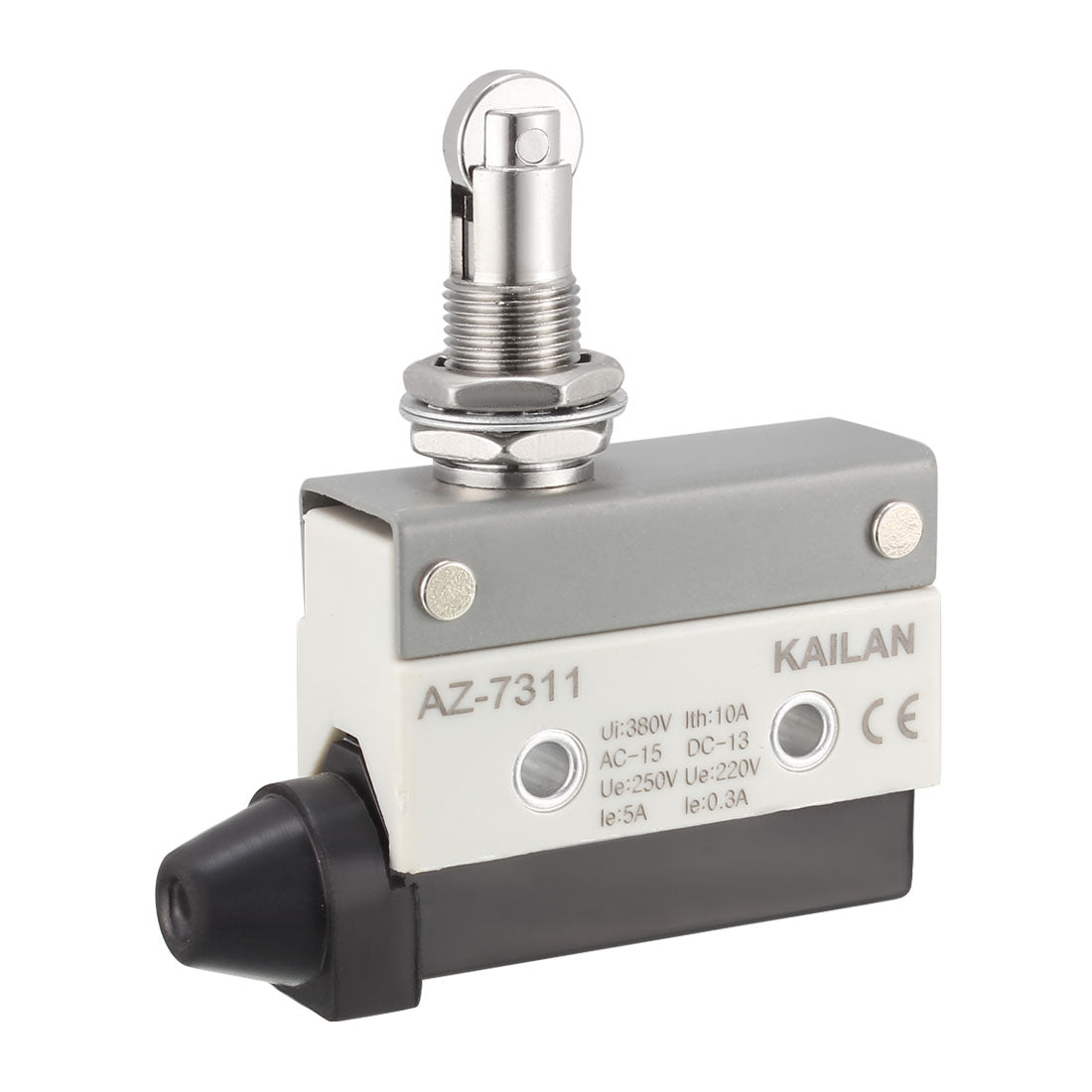

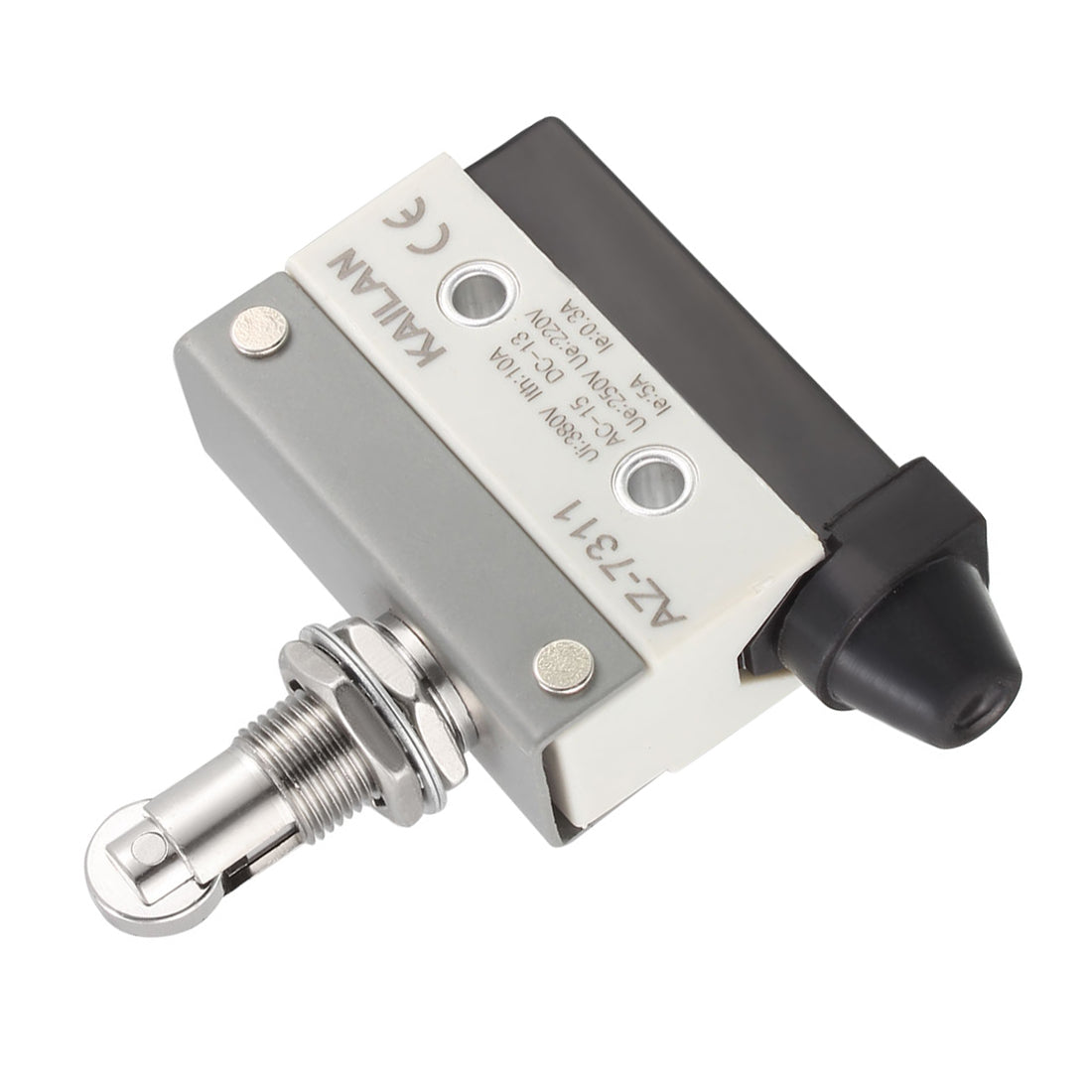

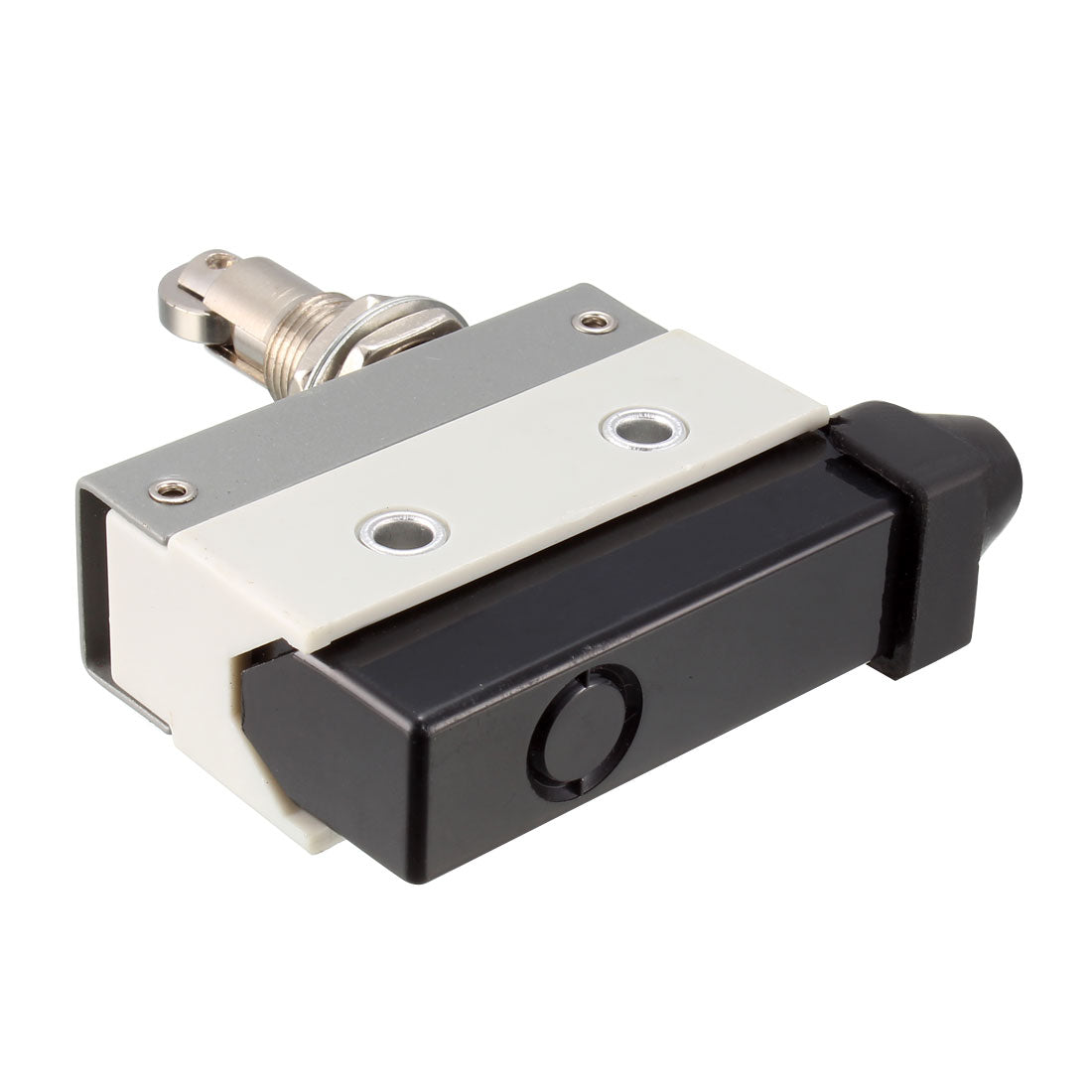

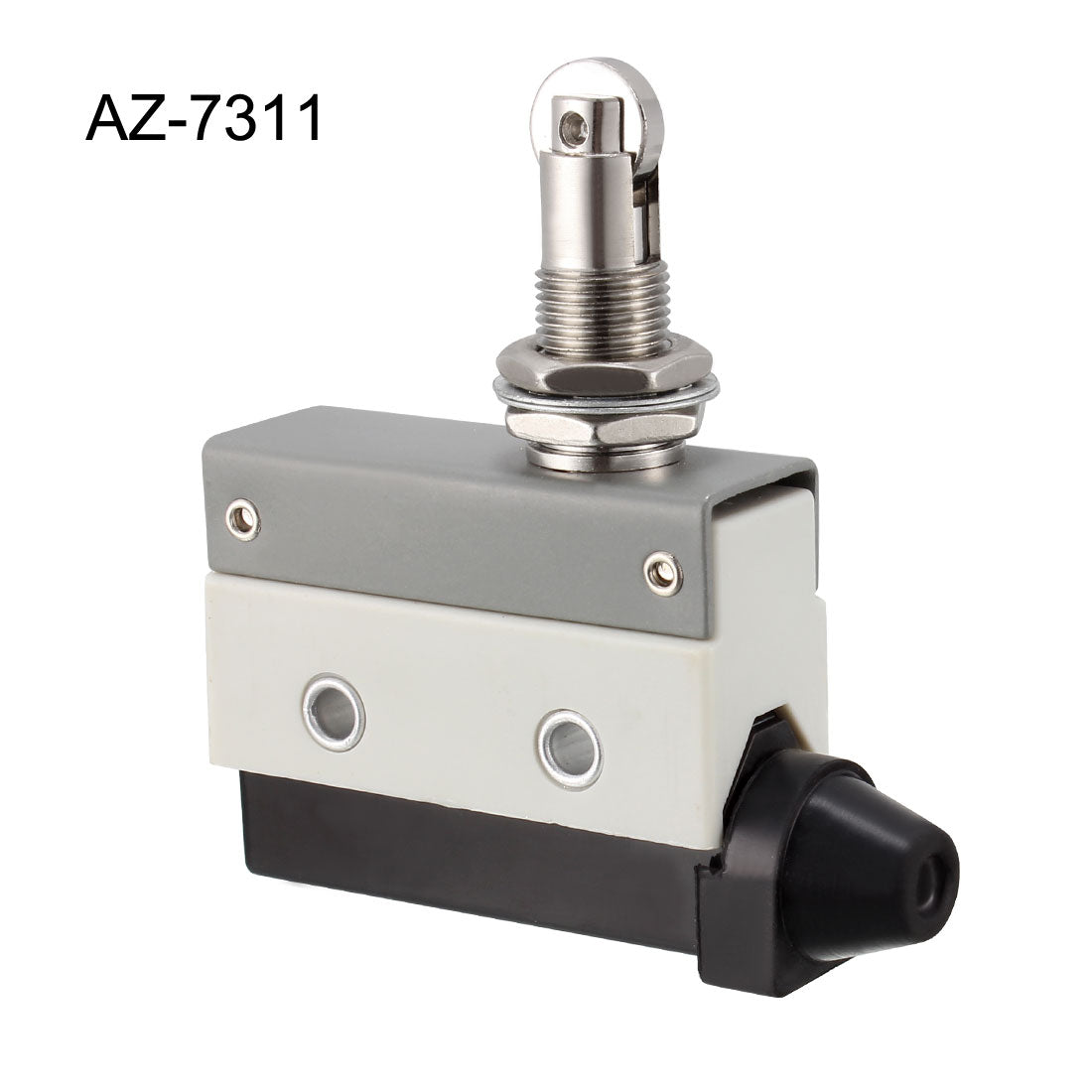

Harfington Uxcell AZ-7311 Roller Plunger Micro Limit Switch Momentary Panel Mount 1NC+1NO

Uxcell AZ-7311 Roller Plunger Micro Limit Switch Momentary Panel Mount 1NC+1NO

ID:
$7.56 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About this item
  • Model: AZ-7311; Roller Plunger Type
  • built-in basic switch with good electrical conductivity
  • Able to withstand some washdowns, shock and vibration
  • Easy-to-wire, smooth operation and reliable
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
  • In stock, ready to ship
Cart
Cart
About this item
  • Model: AZ-7311; Roller Plunger Type
  • built-in basic switch with good electrical conductivity
  • Able to withstand some washdowns, shock and vibration
  • Easy-to-wire, smooth operation and reliable
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Specification:

Product Name: Limit Switch

Model: AZ-7311

Actuator Type: Roller Plunger Type

Rated Voltage:

AC-15: 250V 5A

DC-13: 220V 0.3A

Contact Configuration: 1NC+1NO

Body Size: 54 x 42 x 21mm (L*W*T)

Mounting Hole Size: 4.2mm (D)

Mounting Hole Distance: 25.4mm



The roller plunger can be operated in a wide range by employing a cam, Dog, cylinder, or auxiliary actuator.

Position detection accuracy is high.





Operating Characteristics:

OF max.: 600g

RF min.: 100g

PT max.: 1.0mm

OT min.: 6.0mm

MD max.: 0.8mm

OP: 33.3+/-1.2mm





Description:

  • Insentive ABS plastic shell, sealed construction.
  • Panel mount, side fixed with better water-proof and oil-proof performance.
  • Smooth operation with highter OT.
  • Silver contacts. Easy-to-wire design.
  • This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
{[item.title]} {[item.id]} {[handleCurrency(item.price*100)]}
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Specification:

Product Name: Limit Switch

Model: AZ-7311

Actuator Type: Roller Plunger Type

Rated Voltage:

AC-15: 250V 5A

DC-13: 220V 0.3A

Contact Configuration: 1NC+1NO

Body Size: 54 x 42 x 21mm (L*W*T)

Mounting Hole Size: 4.2mm (D)

Mounting Hole Distance: 25.4mm



The roller plunger can be operated in a wide range by employing a cam, Dog, cylinder, or auxiliary actuator.

Position detection accuracy is high.





Operating Characteristics:

OF max.: 600g

RF min.: 100g

PT max.: 1.0mm

OT min.: 6.0mm

MD max.: 0.8mm

OP: 33.3+/-1.2mm





Description:

  • Insentive ABS plastic shell, sealed construction.
  • Panel mount, side fixed with better water-proof and oil-proof performance.
  • Smooth operation with highter OT.
  • Silver contacts. Easy-to-wire design.
  • This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
