Harfington Uxcell TZ-8167 Limit Switch Flexible Coil Spring Rod 1NC+1NO for CNC Mill Laser Plasma IP65

Uxcell TZ-8167 Limit Switch Flexible Coil Spring Rod 1NC+1NO for CNC Mill Laser Plasma IP65

ID:
$11.59 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About this item
  • Model: ME-8167; Flexible Spring Rod Limit Switch
  • Designed to control the movement of a mechanical part
  • built-in basic switch with good electrical conductivity
  • IP65 Protection. Able to withstand some washdowns, shock and vibration
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
  • In stock, ready to ship
Cart
Cart
About this item
  • Model: ME-8167; Flexible Spring Rod Limit Switch
  • Designed to control the movement of a mechanical part
  • built-in basic switch with good electrical conductivity
  • IP65 Protection. Able to withstand some washdowns, shock and vibration
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Specifications:

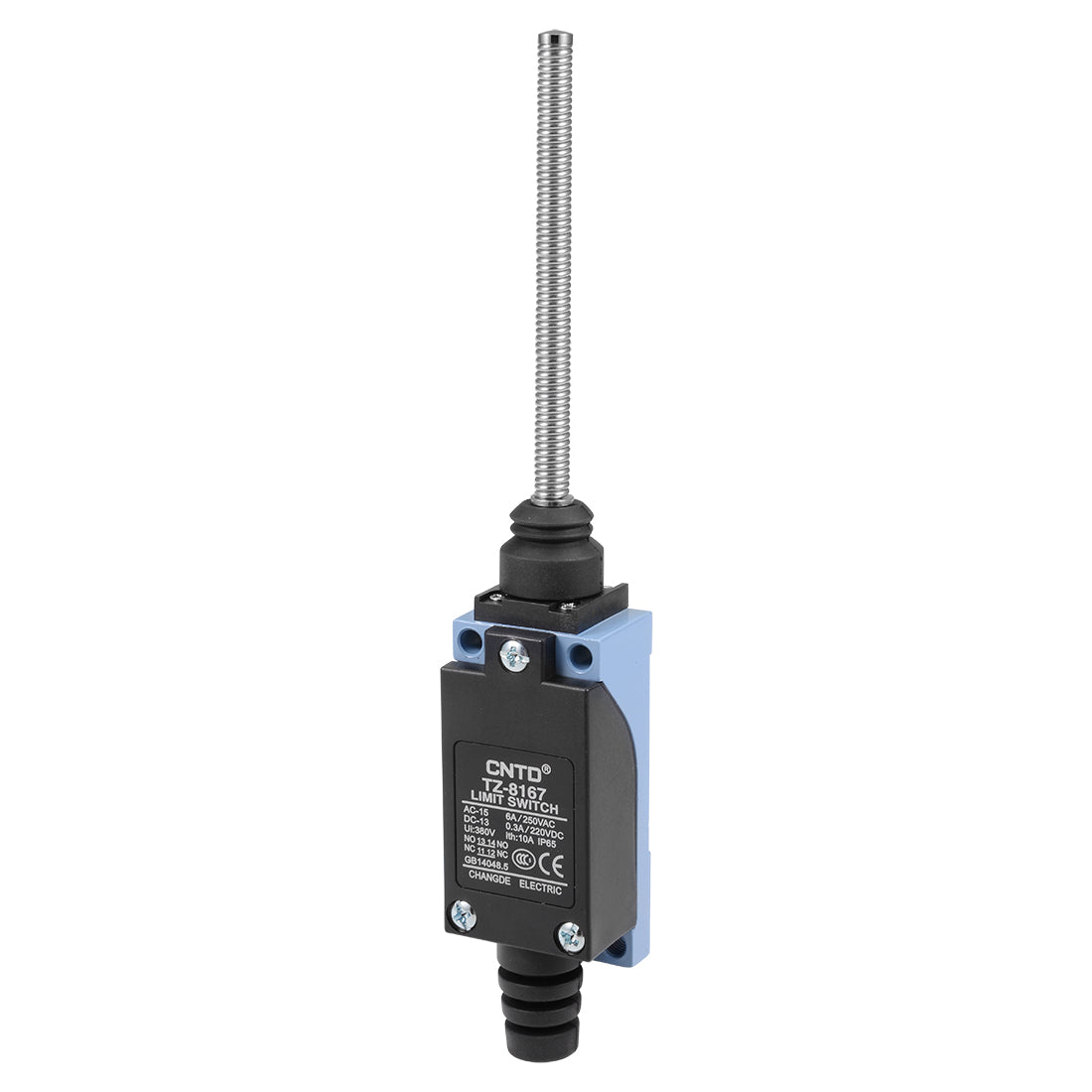

Product Name: Limit Switch

Model: TZ-8167

Actuator Type: Flexible Spring Rod Type

Rated Voltage:

AC-15: (Ue/Ie) 250V/6A

DC-13: (Ue/Ie) 220V/0.3A

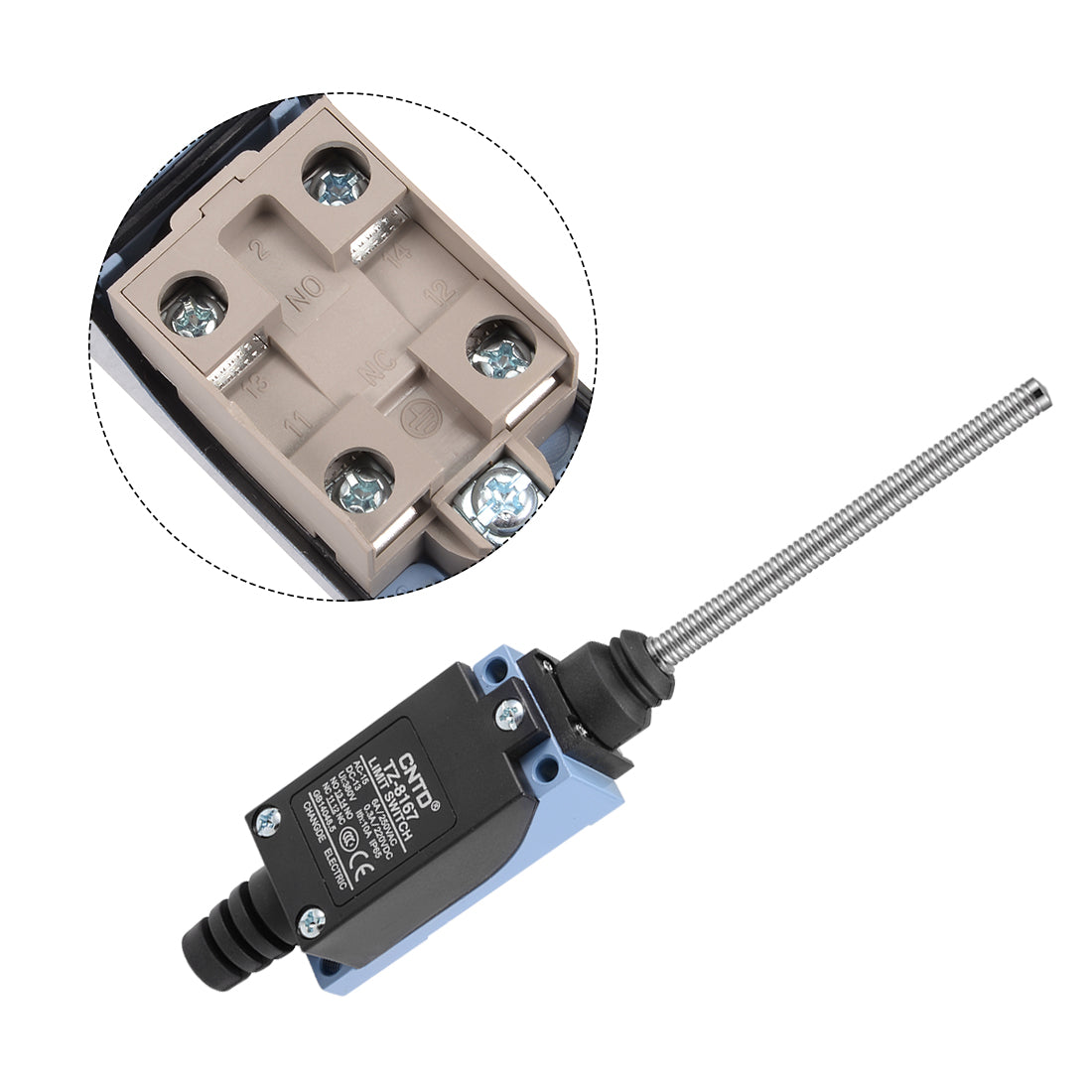

Contact Configuration: 1NC+1NO

Mounting Hole Size: M4

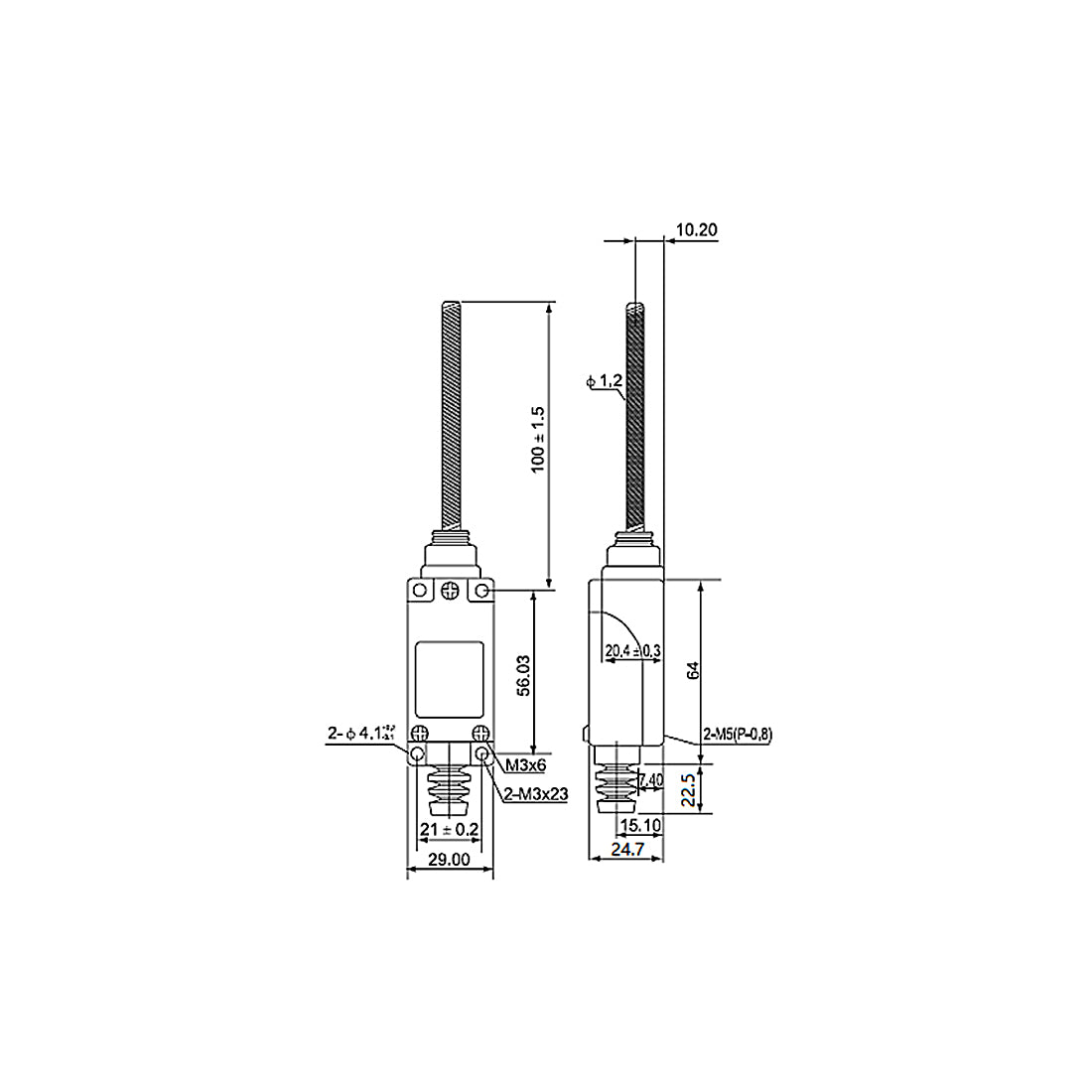

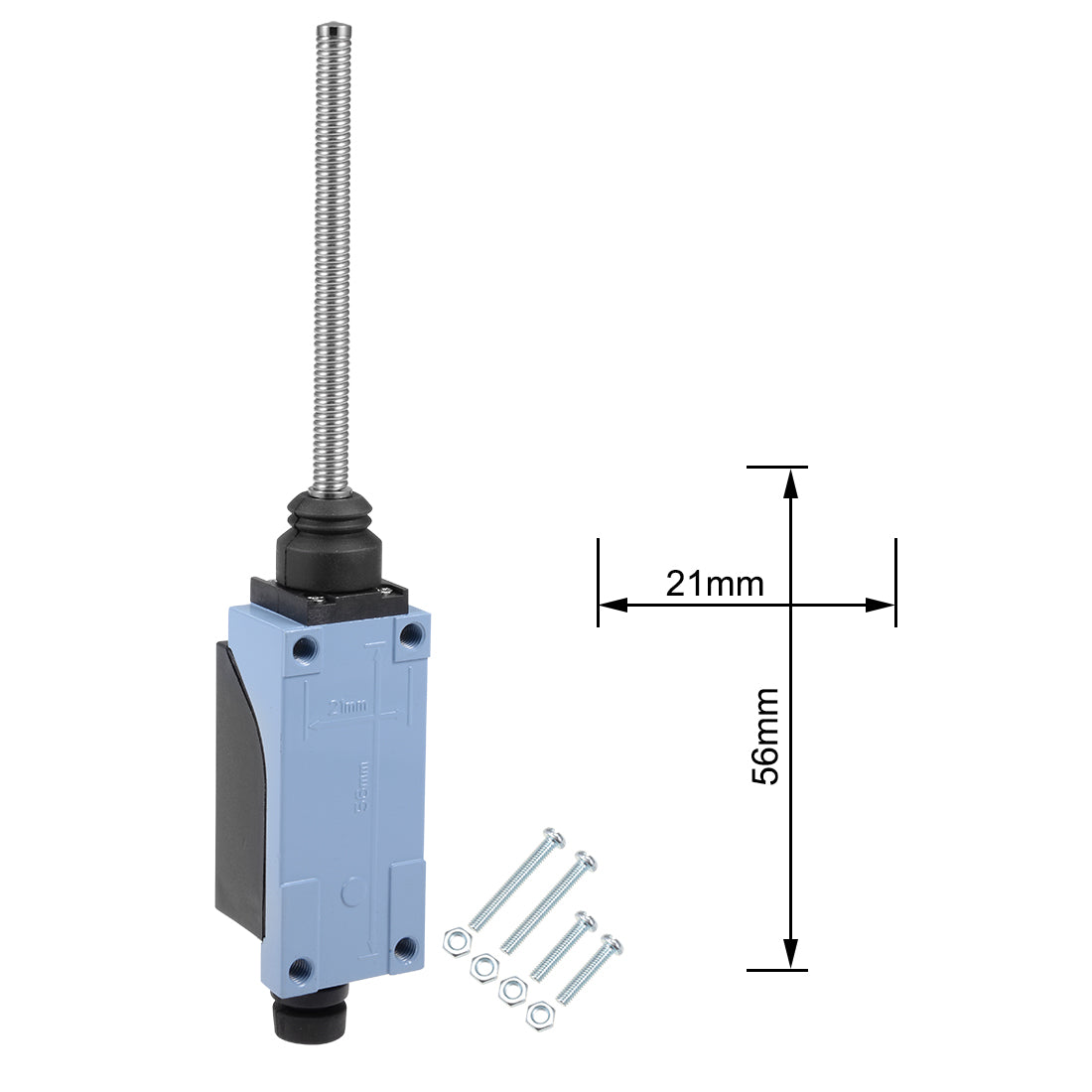

Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)



Note:

The coil spring can be operated in any direction except the axis direction.

The use of the coil spring is for that are not uniform in size or direction.



Operating Characteristics:

OF max.: 150g

PT max.: 30mm



Features:

  • Double circuit limit switch with build-in double reed mechanism.
  • Zinc alloy and intensive plastic shell, strong and highly rigid construction. (Head and cover snugly fit in box)
  • Constructed in small size. Water-proof and oil-proof.
  • Built-in basic switch with double spring mechanism, longer mechanical life.
  • Smooth operation with greater OT.
  • Easy-to-wire circuit opening design.
  • This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.

Product Contents:

1 x Limit Switch with mounting screws

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
{[item.title]} {[item.id]} {[handleCurrency(item.price*100)]}
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Specifications:

Product Name: Limit Switch

Model: TZ-8167

Actuator Type: Flexible Spring Rod Type

Rated Voltage:

AC-15: (Ue/Ie) 250V/6A

DC-13: (Ue/Ie) 220V/0.3A

Contact Configuration: 1NC+1NO

Mounting Hole Size: M4

Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)



Note:

The coil spring can be operated in any direction except the axis direction.

The use of the coil spring is for that are not uniform in size or direction.



Operating Characteristics:

OF max.: 150g

PT max.: 30mm



Features:

  • Double circuit limit switch with build-in double reed mechanism.
  • Zinc alloy and intensive plastic shell, strong and highly rigid construction. (Head and cover snugly fit in box)
  • Constructed in small size. Water-proof and oil-proof.
  • Built-in basic switch with double spring mechanism, longer mechanical life.
  • Smooth operation with greater OT.
  • Easy-to-wire circuit opening design.
  • This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.

Product Contents:

1 x Limit Switch with mounting screws

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
